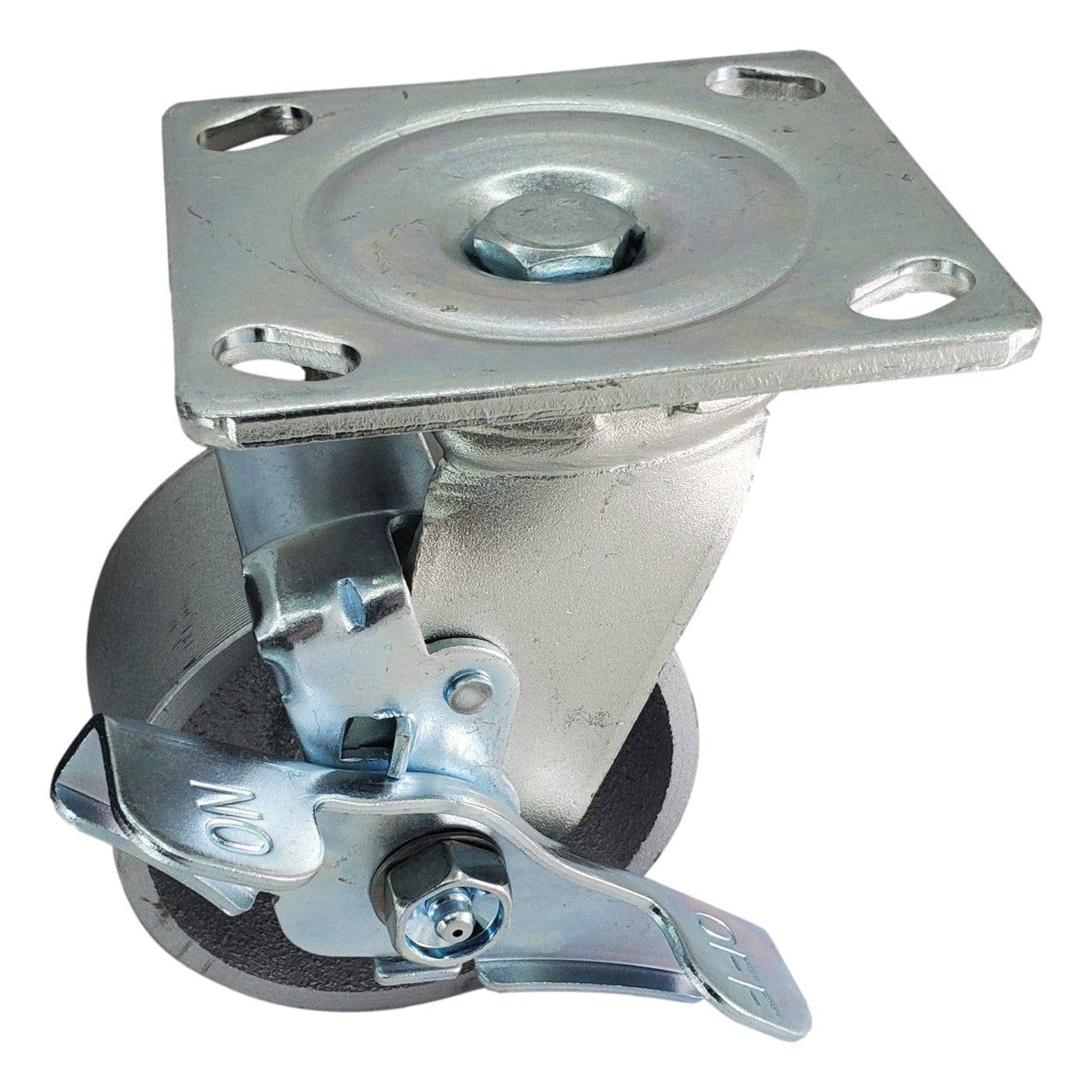

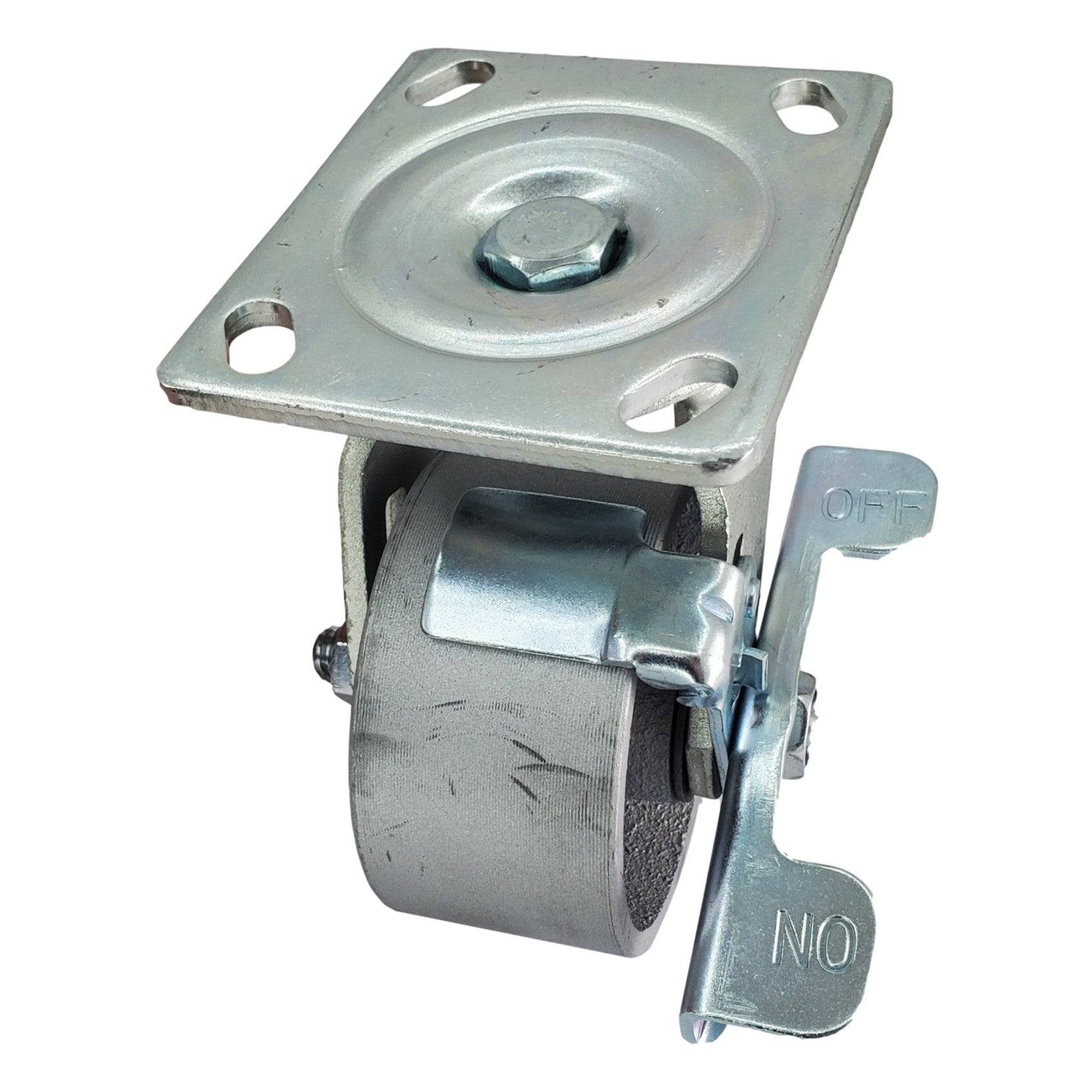

4" x 2" Semi-Steel Wheel Swivel Caster w/ Top-Lock - 700 lbs. Capacity

In stock
SKU: 27SS40JS0417TY
Regular price $41.05

Four Position Swivel Lock
Trusted By

4" s 2" Semi-Steel Wheel Swivel Caster w/ Top-Lock Brake

Semi-Steel / Cast iron, offers a strong, durable, cost effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centered ride, tread edge is machined round.

Tread & Core: Steel Alloy

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top-Lock Brake

  • Capacity: 700 Lbs.
  • Color: Silver
  • Hardness: Brinell 145
  • Tensile Strength: 30,000 PSI
  • Temperature Range: -45° F to 600° F
Load Capacity 700 Lbs.
Wheel Diameter 4"
Tread Width 2"
Tread Type
Steel Alloy
Core Type  Steel Alloy
Bearing Type Roller Bearing
Wheel Color Silver
Overall Height 5-5/8"
Swivel Radius 3-1/4"
Mounting Plate Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Bolt Hole Diameter
3/8"
Lock Type  Top Lock Brake
Tensile Strength
30,000 PSI
Temperature Range
-45° F to 600° F
