5" x 2" Polyon Aluminum Wheel Swivel Caster w/Top Lock Brake - 900 lbs. Capacity

In stock
SKU: 27PA50JN0417TY
Regular price $52.62
Est. Ship Date: Monday, December 18th
Trusted By

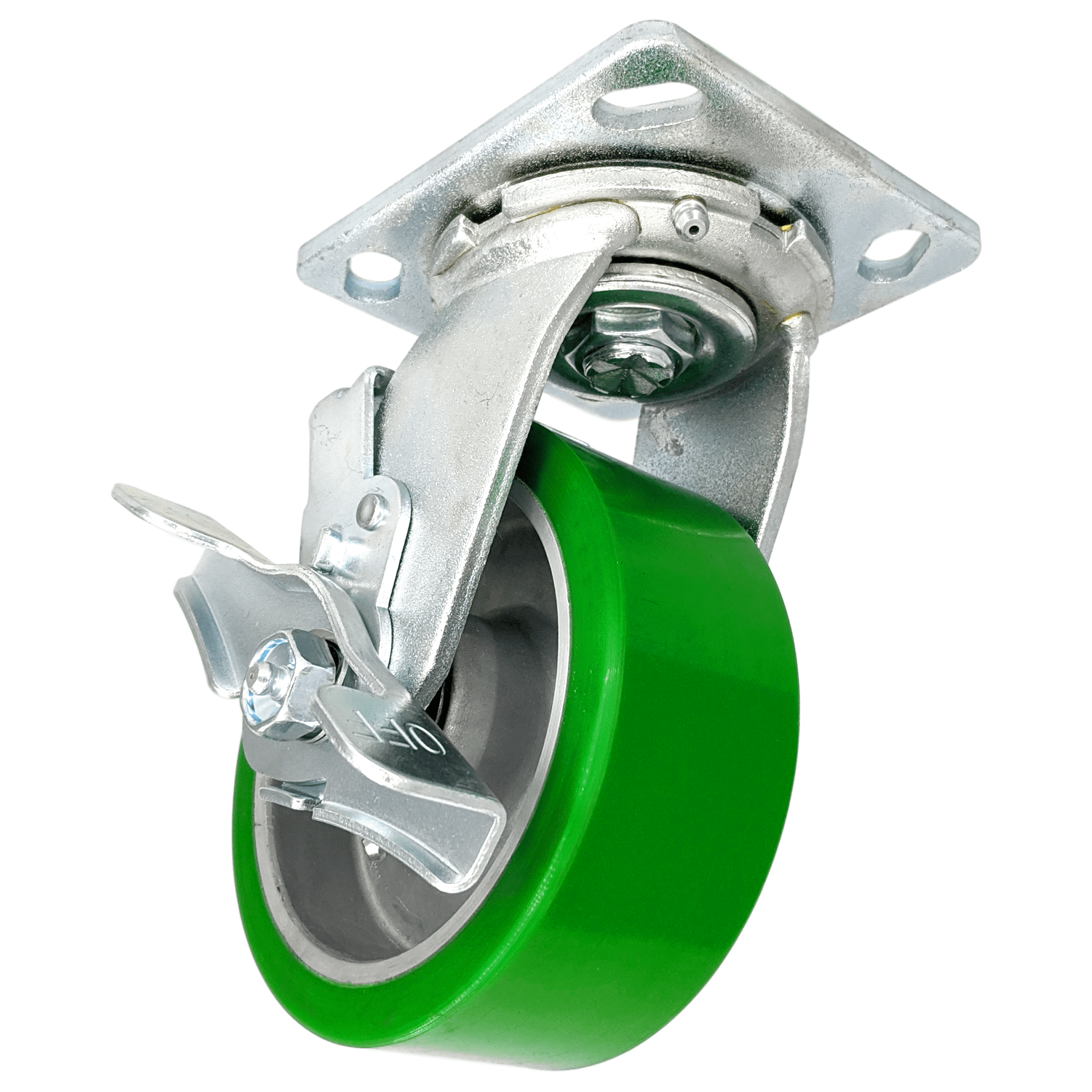

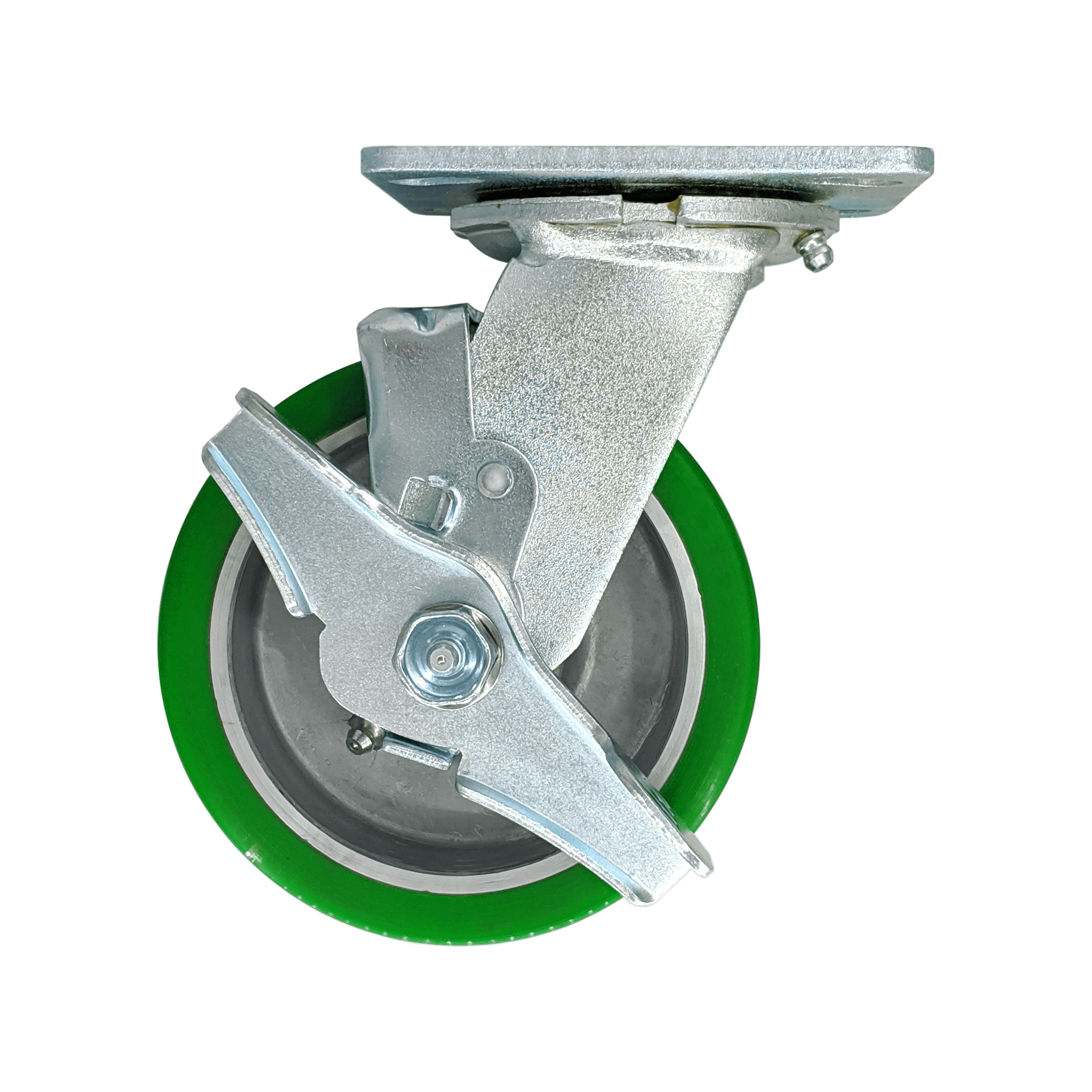

5" x 2" Polyon Aluminum Wheel Swivel Caster with Top Lock Brake

Polyurethane elastomer tread chemically bonded to an aluminum core. Aluminum core has a strong attractive appearance, is lightweight, and resistant to rust and corrosion.

Tread: Polyurethane Elastomer

Core: Aluminum

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake

  • Capacity: 900 Lbs.
  • Color: Green and Silver
  • Durometer: Shore A 95 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity  900 Lbs.
Wheel Diameter
5"
Tread Width
2"
Tread Type
Polyurethane Elastomer
Core Type
Aluminum
Bearing Type
Roller Bearing
Wheel Color
Green and Silver
Overall Height
6-1/2"
Swivel Radius
4"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Lock Type  Top Lock Brake
Durometer  Shore A 95 (+/-5)
Temperature Range  -40° F to 180° F
