Gas-Cylinder Storage Catalog
Cylinder Locker for Safe Storage of 16 Horiz. 20 or 33-lb. LPG Cyl.
Couldn't load pickup availability
Trusted By

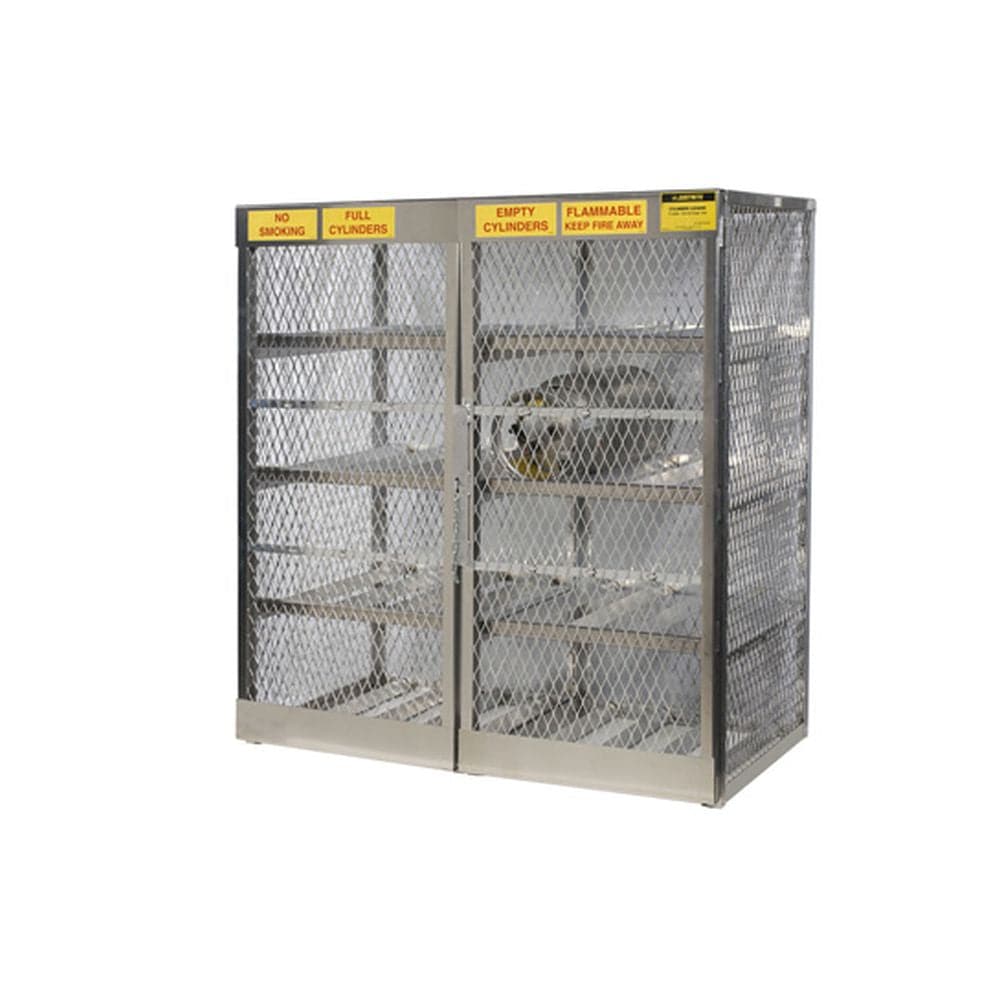

Justrite® Cylinder Locker for Safe Storage of 16 Horizontal Cylinders
Justrite Cylinder Storage cabinets for 16 Horizontal 20 to 33 Lb. Cylinders (Model 23005) provide horizontal storage of liquid petroleum gas (LPG) gas cylinders. It safely holds sixteen 20 or 33-lb (9 or 15 kg) liquid petroleum gas cylinders with exterior dimensions of 65 x 60 x 32 in (1651 x 1524 x 813 mm). As one of five horizontal LPG cylinder storage options and nine modular styles for comprehensive vertical and horizontal gas cylinder storage solutions, model 23005 includes 2 doors and 6 removable shelves.
Gas cylinder storage lockers from Justrite are ideal for those seeking a long-term, trusted, one-and-done investment in a proven product with superior design and manufacturing considerations. These cylinder lockers from Justrite are extremely durable and easy to use. Welded security lug-on front panel door accepts a padlock (not included) for extra protection from tampering. Heavy gauge 0.065 (1.65mm) 100% welded aluminum mesh and extruded (not formed) frame add rigidity. Ventilated designs prevent buildup of dangerous gases. Justrite cylinder lockers do not rust, corrode, or discolor.
All our gas cylinder storage cages have an exclusive solid aluminum roof panel that slants toward the back to shed water and ice. They feature raised floor panels for added support, to prevent cylinders from resting in puddles. Justrite lockers ship fully assembled for easier setup.
Product Summary:
- Sized for large, 33 lb (8 gal) liquid petroleum gas (LPG) cylinders and can also accommodate smaller 20 lb (5 gal) use cases
- Safely holds sixteen 20 or 33 lb (9 or 15 kg) liquid petroleum gas cylinders with exterior dimensions of 65 x 60 x 32 in (1651 x 1524 x 813 mm), stored horizontally
- Lightweight material (66% lighter than steel) reduces shipping and transport costs
- Solid roof panel that slopes back to shed water and ice
- Pre-drilled anchor holes at each corner that accept 1/2" or 12mm anchor bolts (not included)
- In compliance with NFPA 58 LP Gas Code 8.4.2.1, 6.19.4.2, and OSHA 1910.253
| Adjustable Shelves | No |
| Compliance | NFPA, OSHA |
| Dimensions, Exterior | 60" W x 65" H x 32" D |
| Door Type | Manual |
| Material | Aluminum |
| Model No. | 23005 |
| Doors | 2 |
| Racks | 6 |
| Storage Capacity | 16 |
