Digital Diesel Compression Test Kit

Regular price $387.06 Sale

Thursday, August 11st


Lincoln Industrial

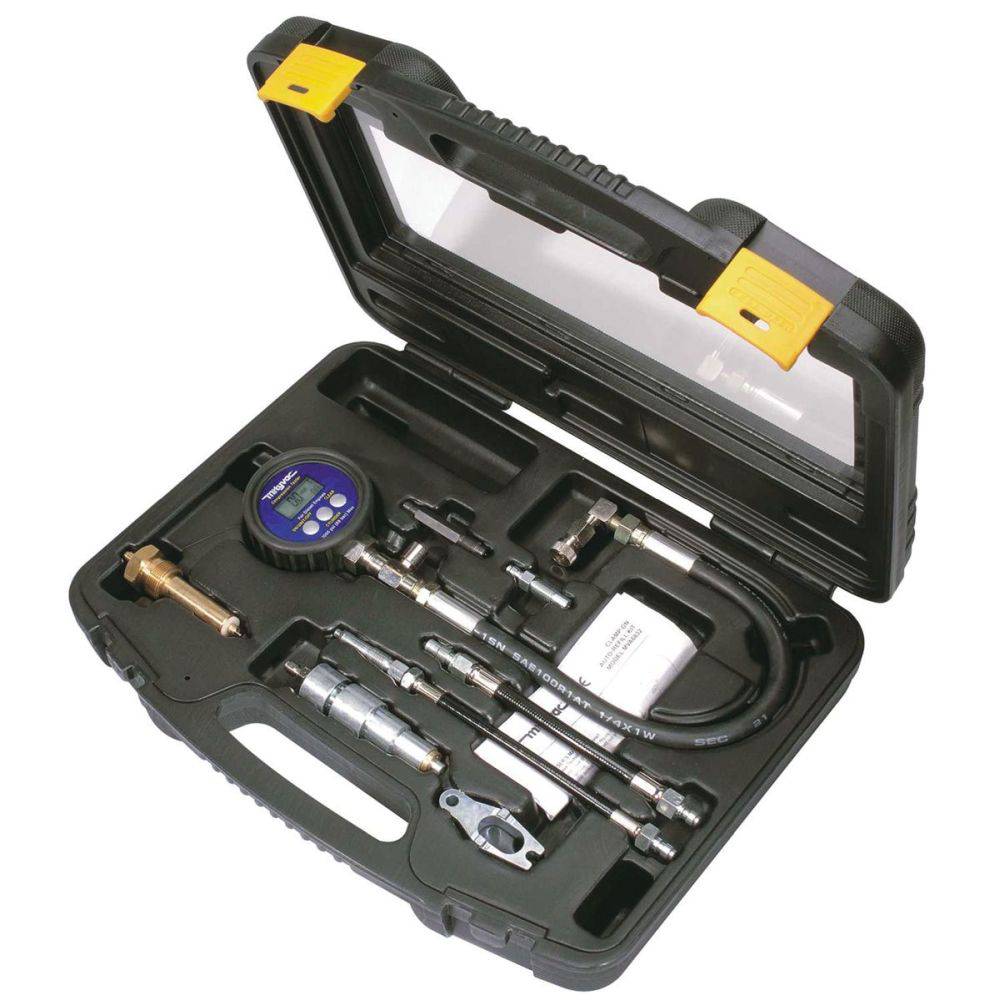

Mityvac® Digital Diesel Compression Test Kit

This comprehensive diesel engine compression test kit features an electronic tester that memorizes the peak compression value for each cylinder. When testing is complete, the values can be quickly reviewed at the push of a button. The kit also includes two (2) injector adapters and four (4) glow plug adapters for testing most modern diesel cars and light trucks sold in the United States.


  • Stores maximum compression value for up to 12 cylinders
  • Backlit LC display is easy to read from any angle and in any light.
  • Used Standard 9 V battery for convenience and cost
  • Automatically shuts off after 3 minutes of non-use (memory is retained)
  • Rubber boot protects the gauge from bumps and drops
  • Sealed, grease- and oil-resistant gauge face prevents contamination of electronics
  • Displays values in psi, bar and kPa


  • Digital compression tester comprising of test gauge with rubber boot, 15 in. long, high-pressure hose, quick-change coupler
  • Adapters MVA5601, MVA5602, MVA5603, MVA5604, MVA5605,MVA5606, MVA5607
  • Glow plug adapter (GM 4.3L, 5.7L (1978-1985), Navistar 6.9L, 7.3L through 1994)
  • Glow plug adapter (GM 6.2L, 6.5L  V8)
  • Glow plug adapter (Ford/Navistar 7.3L power stroke (1994-2003))
  • Glow plug adapter (Volkswagen 1.9L TDI)
  • Right-angle adapter
  • Field service kit
  • Custom-molded case
    Model No. MV5535
    Brand Mityvac
    Maximum Pressure 1,000 psi/68.9 bar
    Packaged Weight  5.2 lbs.
    Case Size  15.7 x 12.4 x 3.2"
