EKKO EB12E Electric Straddle Stacker - 119-138" Height

In stock
SKU: EB12E
Regular price $6,398.00
Est. Ship Date: Wednesday, March 13th

  • 2640lbs Load Capacity
  • 119 or 138-Inch Lift Height
  • Adjustable Forks and Legs

Max Height
Trusted By

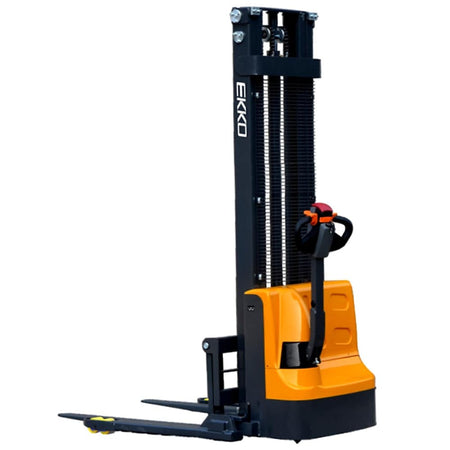

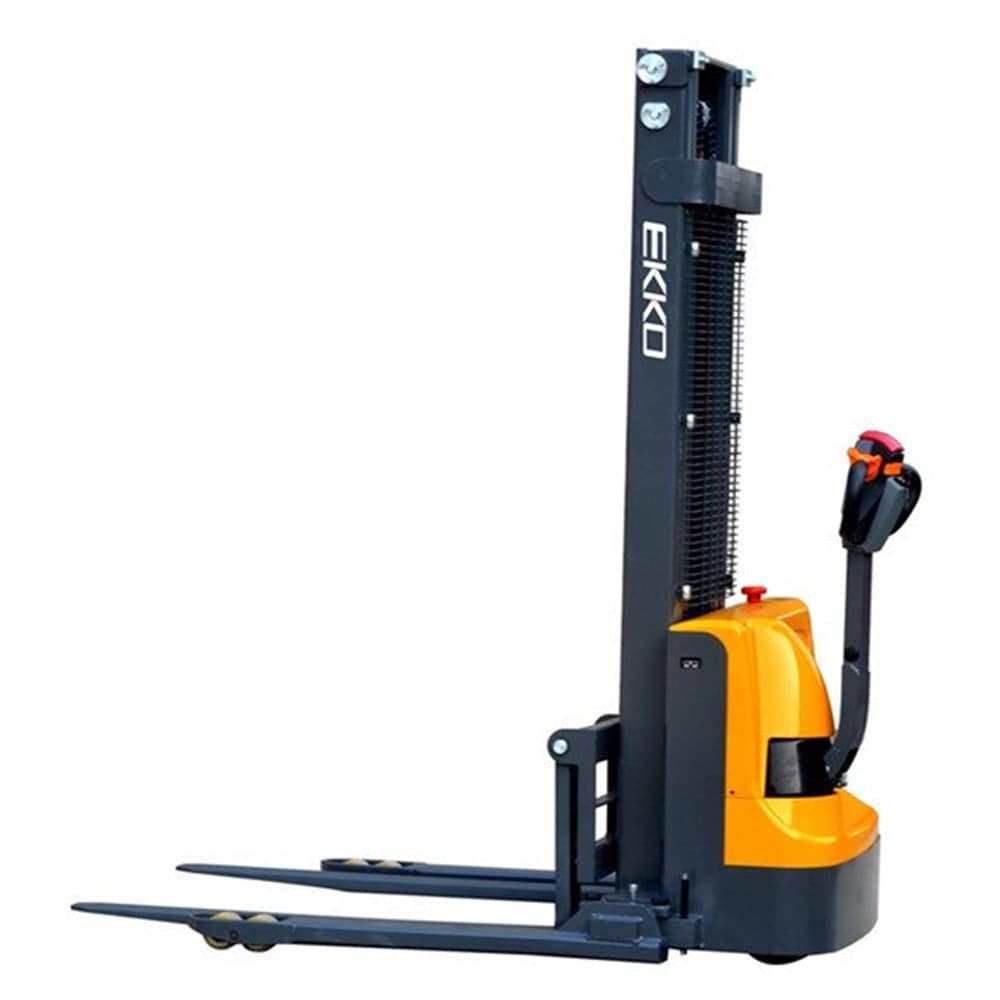

EKKO EB12E Electric Straddle Stacker - 119-138" Height

The EKKO EB12E Electric Straddle Stacker is a highly versatile material handling solution, integrating the functionalities of a forklift, reach truck, and walkie stacker. It is perfectly suited for tasks such as loading and unloading trucks, working in stock rooms, and operating on manufacturing floors and in warehouses. With a load capacity of 2,640 lbs and a maximum lifting height of 119 or 138 inches, this stacker is built from high-quality steel and components, ensuring durability and reliability in diverse working conditions.

Key Features:

  • Versatile Load Capacity: Handles loads up to 2,640 lbs.
  • High Lift Height: Reaches up to 119 or 138 inches for efficient stacking and retrieval.

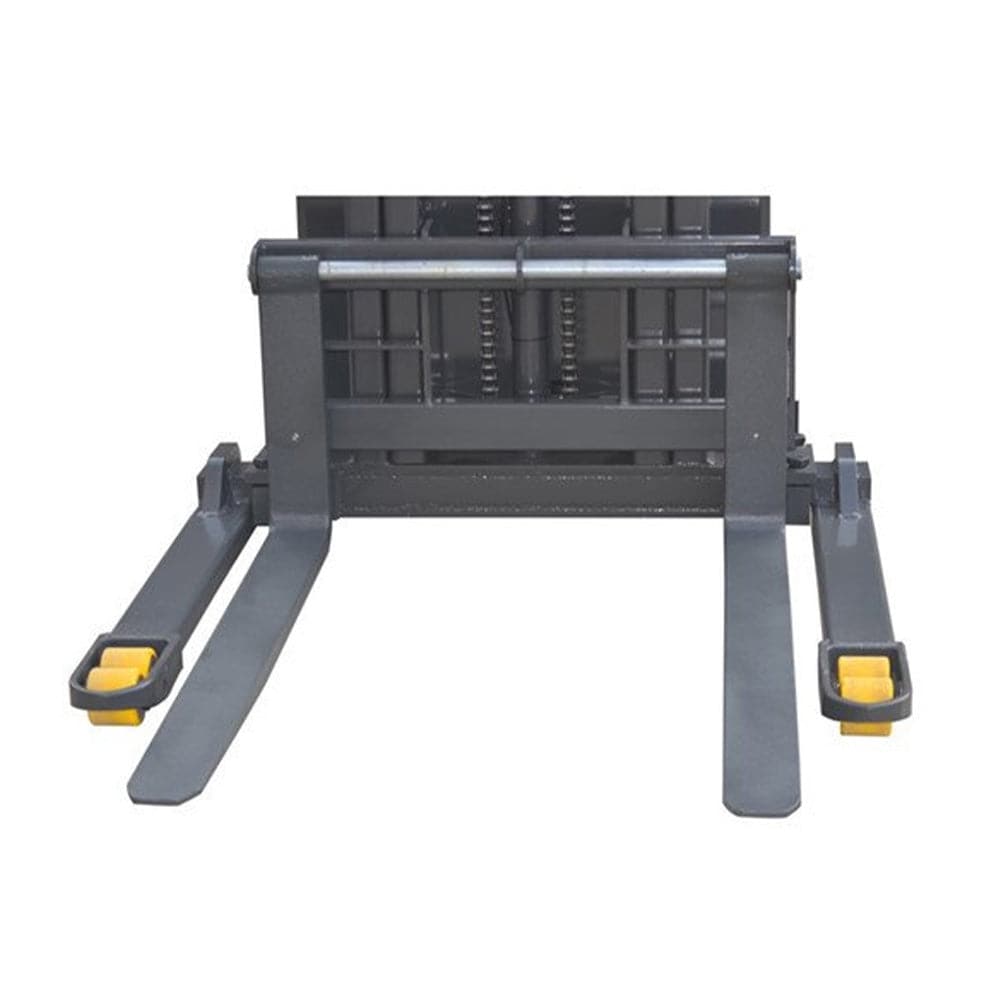

  • Adjustable Forks and Legs: Offers flexibility for different pallet sizes.
  • Efficient Power System: Equipped with a Curtis controller, 24V drive motor, and lift motor.
  • Built-In Battery and Charger: Includes 2×12V/100Ah batteries and an internal 24V/15A charger.
  • Ergonomic Design: Features an ergonomic handle and controls for comfortable operation.
  • Durable Construction: Steel is built with robotic welding for enhanced strength and stability.
  • Warranty: Comes with a 3-year limited warranty.

Specifications:

  • Model: EB12E
  • Turning Radius: 52.6 inches
  • Service Weight: 1,420 lbs

EKKO EB12E Electric Straddle Stacker: A powerful and efficient choice for businesses seeking a multifunctional and robust material handling tool.



  • Load Capacity 2640 lbs.
  • Raised Height 119.4" (9.95ft)
  • Adjustable Forks 8.3-33.5"
  • Adjustable Legs 45.7-59.1"
  • Fork Length 45.3"
  • Curtis Controller
  • 24V Drive Motor
  • 24V Lift Motor
  • Internal Charger
  • Battery 2*12V/100Ah Included
  • Polyurethane Wheels

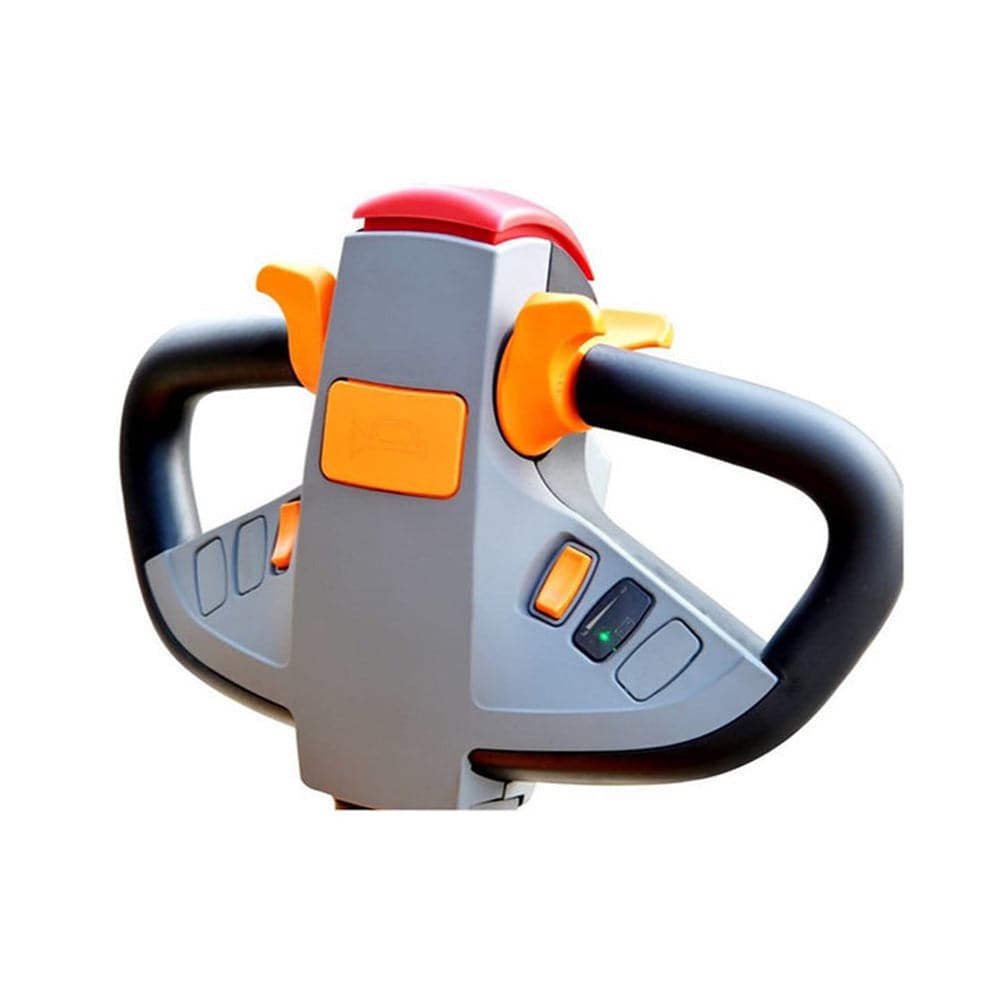

  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • 3 Years Limited Warranty

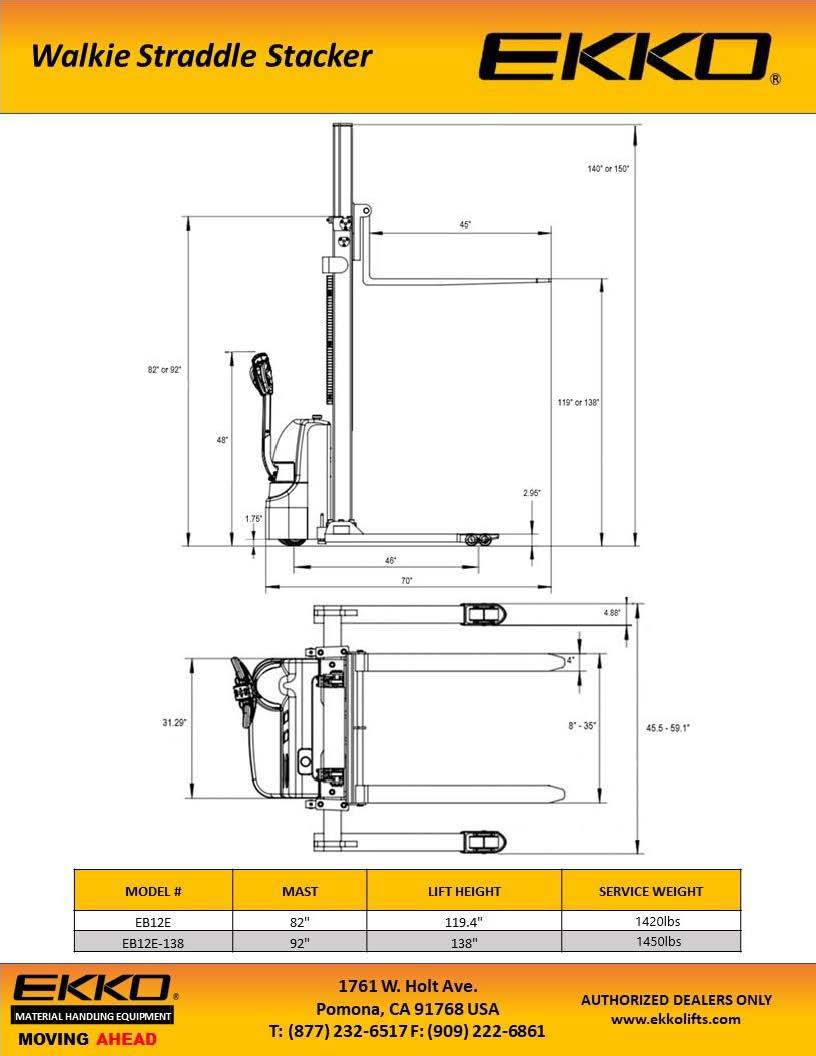

      Model



      EB12E

      Load Capacity

      (lbs)

      2640

      The max. lifting height

      (in)

      119 or 138

      Load center distance

      (in)

      24

      Fork length

      (in)

      45.3

      Single fork width

      (in)

      4

      Overall fork width

      (in)

      8.3-33.5

      Lowered fork height

      (in)

      2.35

      Fixed leg length

      (in)

      36.5

      Adjustable legs

      (in)

      45.5-59.1

      Turning radius

      (in)

      52.6

      Overall length

      (in)

      70

      Max Overall width

      (in)

      61

      Extended mast height

      (in)

      135

      Lowered mast height

      (in)

      82

      Battery voltage (dimensions)

      (in)

      2×12V/100AH(10/6.6/8.5)

      Internal charger

      V/A

      24V/15A

      Lifting Motor

      V/Kw

      2.2kw. Lift speed, laden/unladen:92/136mm/s                                Lowering speed, laden/unladen:112/98mm/s

      Driving Motor



      0.75kw.Driving speed: laden/unladen:4.0/4.2km/h

      Service Weight

       (lbs)

      1420
