EKKO EK16A-189Li 3-Wheel Lithium Forklift 3500 lbs Capacity, 189in Lift

In stock
SKU: EK16A-189Li
$26,999.00

  • 3,500 lb load capacity
  • 189" lift height
  • 58.9" turning radius

Est. Ship Date: Friday, September 19th
Reliability Over 50 years in the industry, demonstrating reliability.
Serving customers Serving customers across all 50 states.
Heavy-duty Products designed for heavy-duty use.
Return Policy 30 Days Return Policy*
Trusted By

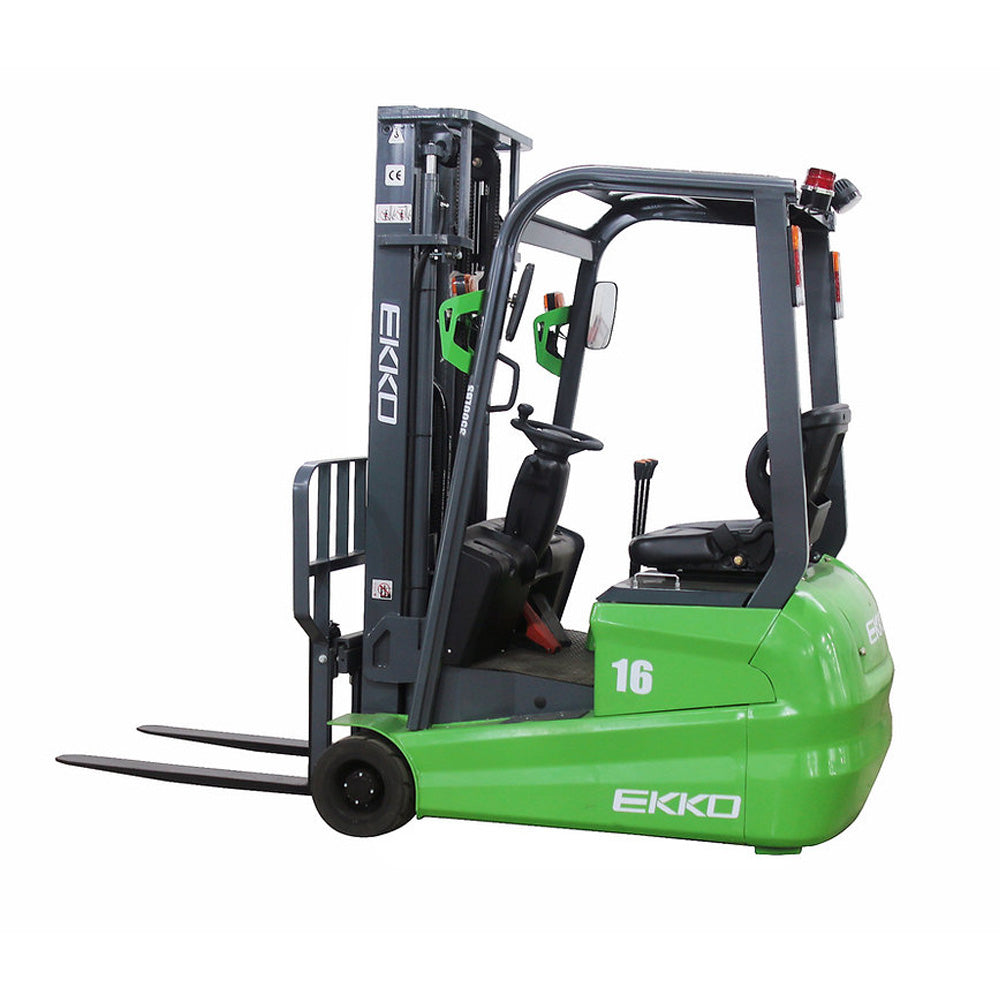

EKKO EK16A-189Li 3-Wheel Lithium Forklift

The EKKO EK16A-189Li 3-Wheel Lithium Forklift is engineered for tight warehouse aisles and confined storage areas, offering an ideal solution for lifting, stacking, and material handling in indoor environments. With a 3,500 lb capacity and a 189-inch lifting height, this forklift combines powerful performance with compact maneuverability.

Designed with operator comfort and efficiency in mind, the EK16A-189Li features a 24V AC drive motor, Zapi controller, hydraulic power steering (HPS), and cushion tires for smooth navigation across flat surfaces. Its 3-wheel structure and tight 58.9-inch turning radius enhance agility, while adjustable forks ensure flexibility for various load sizes.

The durable steel frame, robotic welding, and lithium-ion power system make it a reliable and cost-effective solution for long-term operation. The integrated charger and 3-year limited warranty add further value to this high-performance forklift.

  • Load Capacity: 3,500 lbs
  • Raised Height: 189" (15.75 ft)
  • Free Lift: 31.5"
  • Fork Length: 42.1"
  • Adjustable Forks: 7.9" - 26"
  • 24V AC Drive Motor
  • 3.3 kW Lift Motor
  • Zapi®Controller
  • Cushion Tires
  • Hydraulic Power Steering (HPS)
  • Steel Construction with Robotic Welding
  • Charger Included
  • Battery Included
  • 3-Year Limited Warranty
Model EK16A-189Li
Drive Type Lithium Forklift
Type of Operation Rider
Load Capacity 3,500 lbs.
Load Center Distance 24 in.
Service Weight 4,650 lbs.
Wheel Base 49.2 in.
Lifting Height 189 in.
Free Lifting Height 31.5 in.
Lowered Mast Height 84.75 in.
Side Shifting Forks Yes
Overall Length 65 in.
Overall Width 42.1 in.
Fork Size 1.4" x 4" x 42.1"
Fork Adjust Width 7.9" - 26"
Turning Radius 58.9 in.
Gradient Performance 6% / 10%
Lift Speed 4.71 - 10.2 in/s
Lowering Speed 11.8 - 15.7 in/s
Charger 24V/50A
Driving Motor AC
Lifting Motor 3.3 kW
Tilt (Forward/Backward) 3°/6°
Battery 24V/200Ah
