EKKO EK40D Diesel Forklift with Solid Pneumatic Tires - 8500 lb Capacity, 185in Lift
- Due to the weight of this item, a custom freight quote is required.
Please call 702-718-7391 ext 1 or email sales@source4industries.com
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By

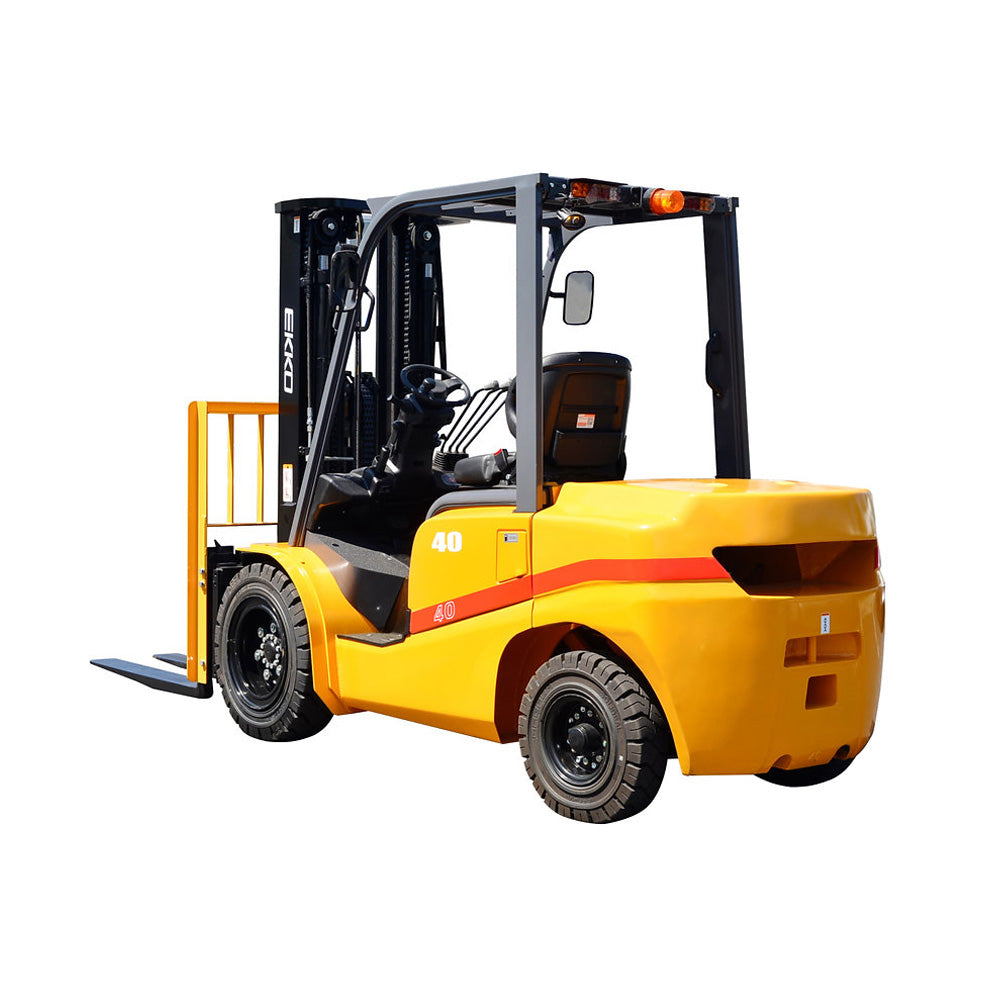

EKKO EK40D Diesel Forklift with Solid Pneumatic Tires
The EKKO EK40D Diesel Forklift is engineered to meet the rigorous demands of heavy-duty material handling across warehouses, loading docks, and industrial distribution environments. With an impressive 8,500 lb lifting capacity and a lift height of 185 inches, this diesel-powered unit delivers the strength and reliability required for intense operations.

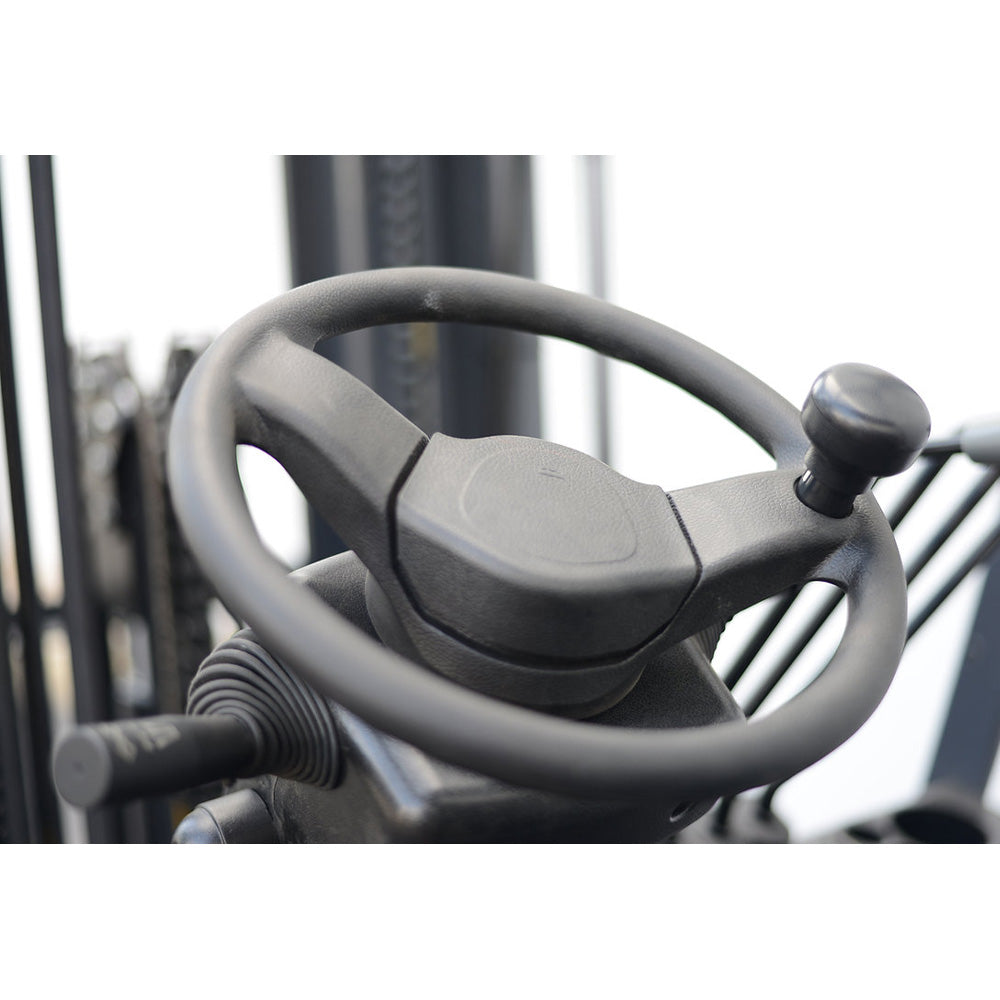

Powered by a Tier 4 EPA-compliant Mitsubishi 4EG engine, the EK40D provides smooth, fuel-efficient performance while minimizing emissions. Designed with operator comfort in mind, it features an adjustable steering wheel, a multifunctional suspended seat for reduced vibration, and an impedance-composed muffler to lower sound output.
Equipped with Cascade side shift and a Shimadzu 4-way pre-plumbed valve, this forklift offers added functionality for precision control and efficient load handling. The solid pneumatic tires provide stability across rugged surfaces, making it ideal for both indoor and outdoor use.
- Load Capacity 8000 lb
- Lift Height 185" (15.75ft)
- Side Shifting Forks
- Free Lift 38-43.7”
- Fork Length 42“
- Inmotion Controller
- Battery 80V/230Ah
- Solid Pneumatic Tires
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
- Cascade® Side Shift
- Shimadzu® 4-Way Valve (Pre-Plumbed)
| Model | EK40D |
| Drive Type | Diesel |
| Type of Operation | Diesel |
| Load Center | 24 in. |
| Lift height | 185 in. |
| Wheelbase | 70.8 in. |
| Service Weight | 11,519 lbs. |
| Tire material | Solid Pneumatic Tire |
| Service Brake | Hydraulic Floor Pedal |
| Overall width | 52.9 in. |
| Overall length with forks | 157 in. |
| Overall length without forks | 112 in. |
| Min ground clearance (at the mast) | 4.7 in. |
| Mast Overall height | 86.2 in. |
| Free lifting height | 37.9 in. |
| Overall Height w/ forks lifted | 234 in. |
| Fork Size | 48" x 5.9" x 1.9" |
| Battery | 12V/80Ah |
| Engine Mode | Mitsubishi 4EG |
| Engine rated power | 49HP/2,250rpm |
| Load Capacity | 8,500 lbs. |
| Max traveling speed (loaded/unloaded) | 10.3mph/11.2mph |
