EKKO EP30A Rider Pallet Jack - 6600 lbs Capacity

In stock
SKU: EP30A
Regular price $11,600.00
Est. Ship Date: Monday, June 24th

  • 6600lb Load Capacity
  • Full Power Lifting
  • Ergonomic and Efficient

Trusted By

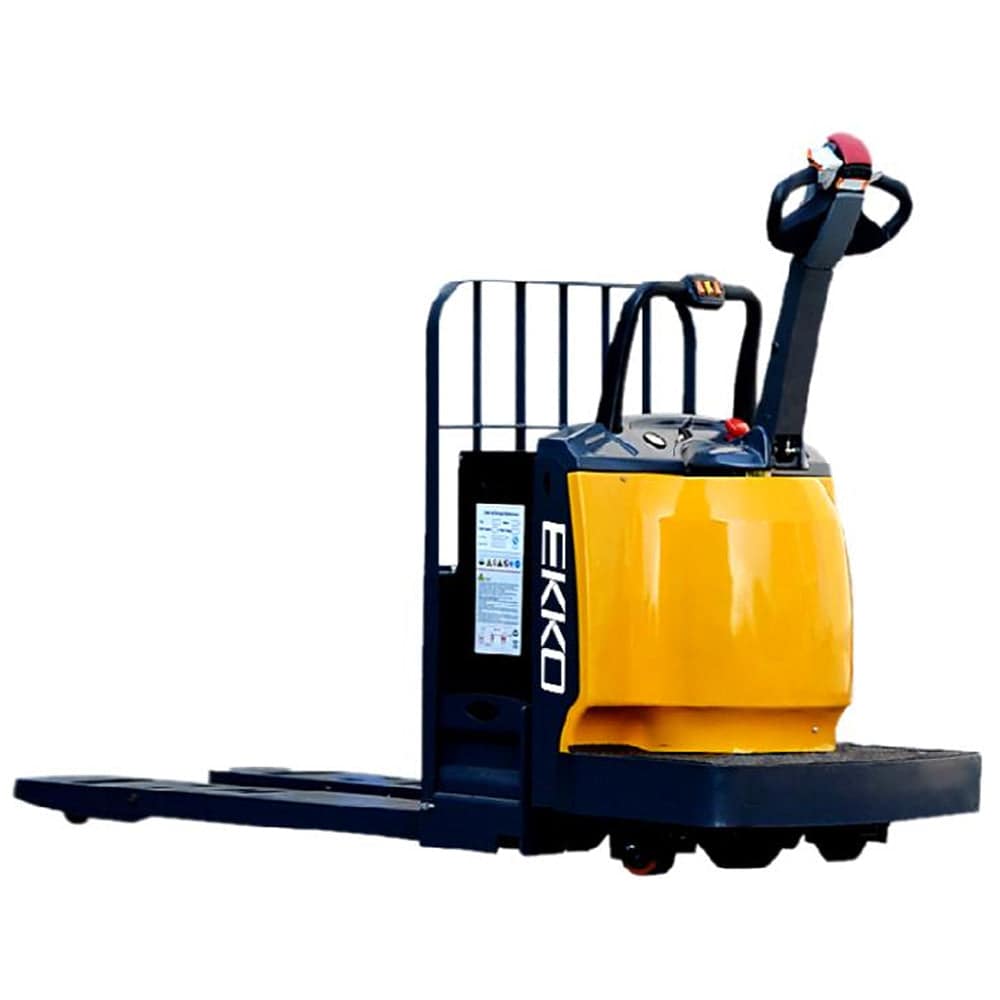

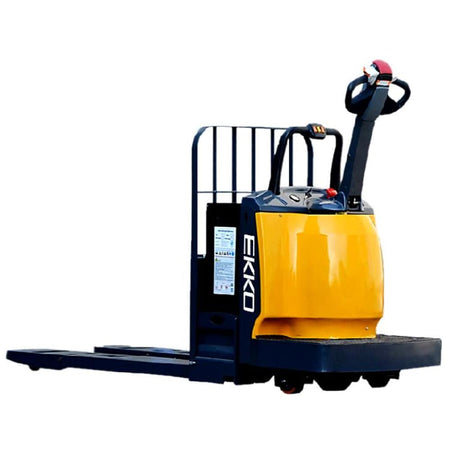

EKKO EP30A Rider Pallet Jack

The EKKO EP30A Rider Pallet Jack combines the functionality of a traditional pallet jack with the added advantage of full powerlifting and driving capabilities. It's an excellent choice for tasks like loading and unloading trucks and operating in loading docks, stock rooms, manufacturing floors, and warehouses. With a substantial load capacity of 6600 lbs and ergonomic design, the EP30A is constructed from high-quality steel and components, ensuring durability and adaptability in various operational settings.

Key Features:

  • High Load Capacity: Capable of handling loads up to 6600 lbs.
  • Efficient Lifting and Lowering: Features a raised height of 9.17 inches and a lowered height of 3.26 inches.
  • Powered Operation: Includes a Curtis controller and a ZF AC drive motor for smooth and efficient operation.
  • Ergonomic Design: Offers an ergonomic handle and controls for ease of use and reduced operator fatigue.
  • Durable Construction: Steel is built with robotic welding for enhanced durability and longevity.
  • Included Charger and Battery: Comes with a 24V/280Ah battery and charger for consistent performance.
  • Warranty: Includes a 3-year limited warranty for peace of mind.

Specifications:

  • Model: EP30A
  • Fork Size: 27x48 inches
  • Service Weight: 1720 lbs

EKKO EP30A Rider Pallet Jack: A robust, efficient, and versatile material handling tool, perfect for a range of industrial and warehousing applications.

  • Load Capacity 6600 lbs.
  • Fork Size 27x48
  • Raised Height 9.17"
  • Lowered Height 3.26"
  • Curtis Controller
  • ZF AC Driver Motor
  • Polyurethane Wheels
  • Steel Entry Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery 24V/280Ah Included
  • 3 Years Limited Warranty

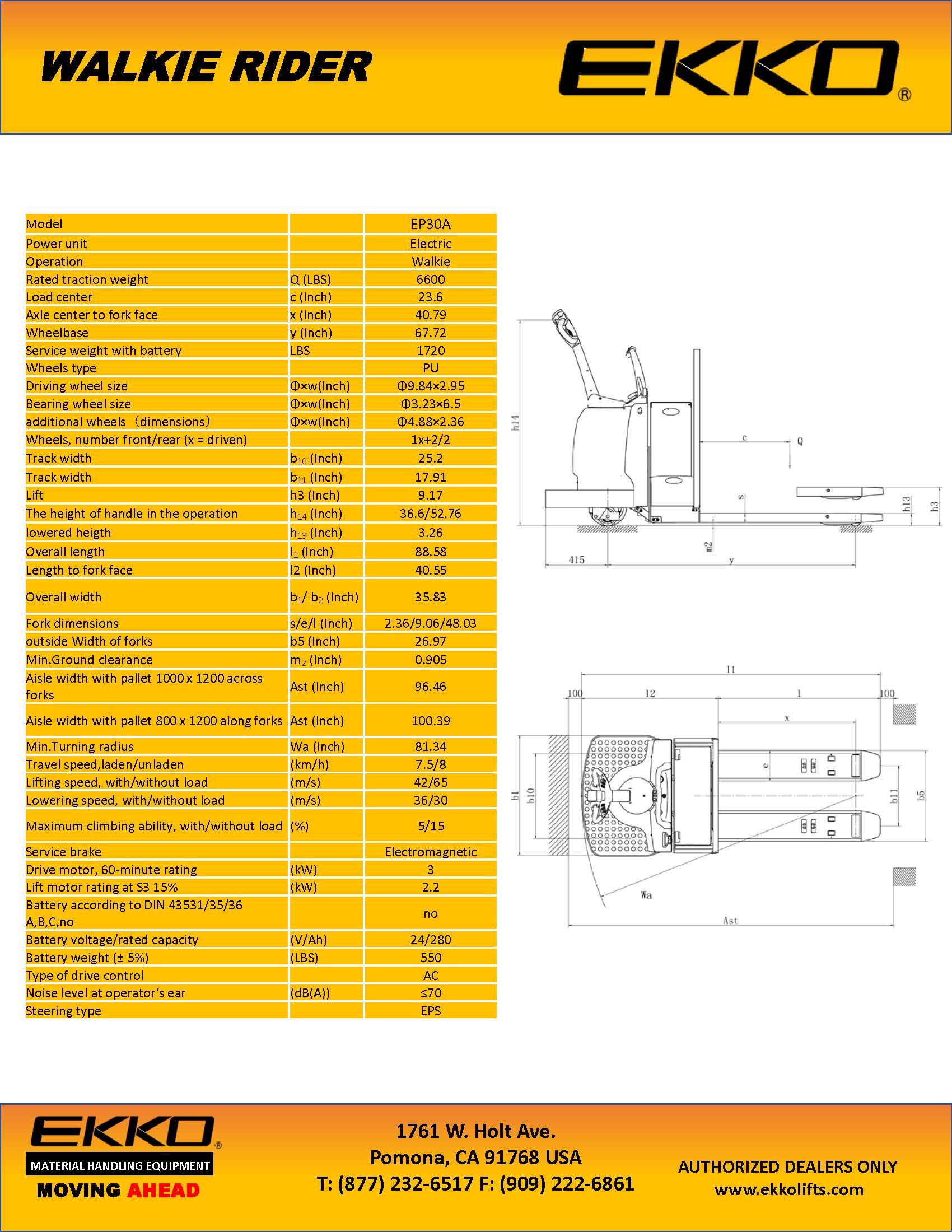

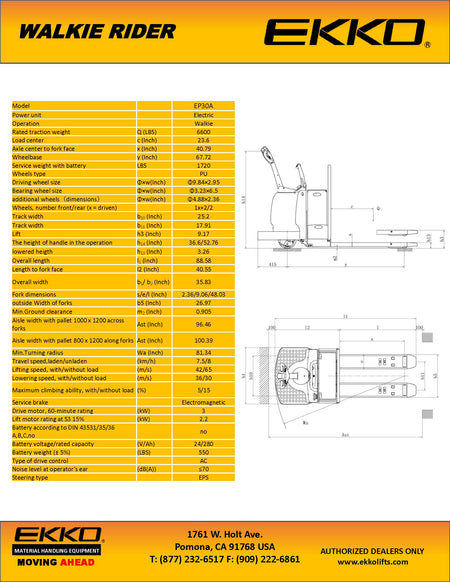

Model



EP30A

Lift



Electric

Drive



Electric

Load Capacity

(lb)

6600

Load center

(in)

24

Wheelbase

(in)

67.72

Lowered fork height

(in)

3.26

Lifting height

(in)

9.17

Overall length

(in)

88.58

Overall width

(in)

35.83

Fork size

s/e/l (in)

2/9/48

Outside distance of fork

 in)

27

Turning radius

(in)

81.34

Lifting speed, laden/unladen

(in/s)

7.5/8

Lowering speed, laden/unladen

(in/s)

36/30

Max gradient performance  laden/unladen

(%)

5/15

Brake type



electromagnetic

Drive motor

(W)

3000

Lift motor

(W)

2200

Charger

(V/A)

24/30

Battery voltage/rated capacity

(V/Ah)

24V/280Ah

AC Drive Motor



AC Motor

Noise level at operator sear

(dB(A))

70

Service weight

(with battery)

(lb)

1720
