EKKO EPF18LI Lithium Electric Pallet Jack - 4000lb Capacity

On-Backorder
SKU: EPF18LI
Regular price $2,599.00

  • 4000lb Load Capacity
  • Lithium Iron Battery
  • Robust Steel Construction

Est. Ship Date: Tuesday, October 15th
Reliability Over 50 years in the industry, demonstrating reliability.
Serving customers Serving customers across all 50 states.
Heavy-duty Products designed for heavy-duty use.
Return Policy 30 Days Return Policy*
Trusted By

EKKO LIFTS Lithium-Ion Pallet Jack

Introducing the EKKO EPF18LI Lithium Iron Phosphate Electric Walkie Pallet Jack, an industrial-grade solution designed to enhance operational efficiency in loading docks, stock rooms, and warehouse environments. With a robust load capacity of 4000 lbs, this pallet jack combines the versatility of manual handling with the power of full-electric lifting and driving capabilities, ideal for intense commercial use.

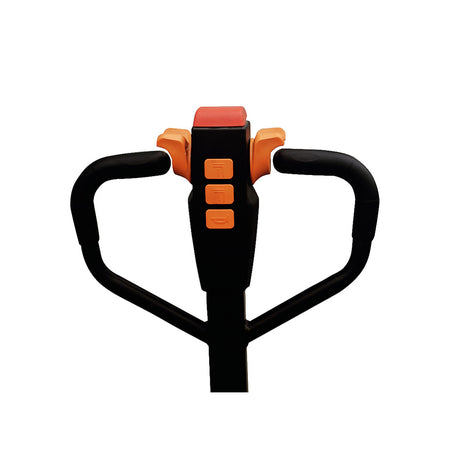

Constructed from high-quality steel and integrated with robotic welding techniques, the EPF18LI ensures durability and resilience against any terrain and usage conditions. It features polyurethane wheels for smooth movement and an ergonomic handle with intuitive controls for ease of operation. The lithium 24V powered unit includes a high-performance 24V/40Ah LiFePO4 battery, ensuring long-lasting power and quick recharging with the included charger.

This pallet jack's pinwheel capability allows for superior maneuverability in tight spaces, with a raised height of 7.87" and a lowered height of just 2.95". Whether navigating through narrow aisles or loading and unloading trucks, the EPF18LI enhances productivity with its efficient electric drive and electromagnetic brake system, providing safety and precision in every move.

Key Features:

  • Lithium 24V Powered
  • Load Capacity 4000 lb
  • Fork Size 27x45
  • Raised Height 7.87"
  • Lowered Height 2.95"
  • Pinwheel Capability
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • (1) Lithium Iron Battery LiFePO4 Included 24V/40Ah
  • 3 Years Limited Warranty

Specifications:

  • Model: EPF18LI
  • Service Weight: 370 lbs
  • Fork Size: 27x45 inches
Specification Details
Model EPF18LI
Drive type Electric
Manner of operation Walkie
Load Capacity (LBS) 4000
Load Centre (Inch) 23.6
Distance between fork backrest and front wheel (Inch) 39.92
Wheel Base (Inch) 51.69
Tire material PU
Driving wheel size (Inch) Φ8.27×2.76
Bearing wheel size (Inch) Φ3.15×3.35
Qty of wheel, Front/Rear (x=driving wheel) 1x/2
Tread (Inch) 21.06
Lifting Height (Inch) 7.87
The height of handle in the operation position (Inch) 29.13/45.67
Lowered fork height (Inch) 2.95
Overall Length (Inch) 65.86
Body Length (Inch) 17.83
Overall Width (Inch) 26.97
Fork Size (Inch) 1.97/5.91/45
Fork Width (Inch) 26.97
Min. Ground clearance (Inch) 1.38
Aisle width for pallets 39.37*47.24 crossways (Inch) 73.78
Aisle width for pallets 31.5*47.24 lengthways (Inch) 75.75
Turning Radius (Inch) 57.8
Driving Speed, load/unload (km/h) 4.2/4.5
Maximum gradeability load/unload (%) 5/10
Brake Type Electromagnetic brake
Drive Motor (kW) 0.75
Lift Motor (kW) 0.8
Lithium LiFePO4 Battery voltage, rate capacity (V/Ah) 24/40
Battery Weight (LBS) ±5% 22.4
Type of drive control DC
Noise level (dB(A)) ≤70
Service Weight (with battery) (LBS) 370
