Electric Grease Pump W/ RemoteLinc Technology - P203 Series - 12V

In stock
SKU: 94223-12
Regular price $1,473.74
Est. Ship Date: Monday, December 11th
Trusted By

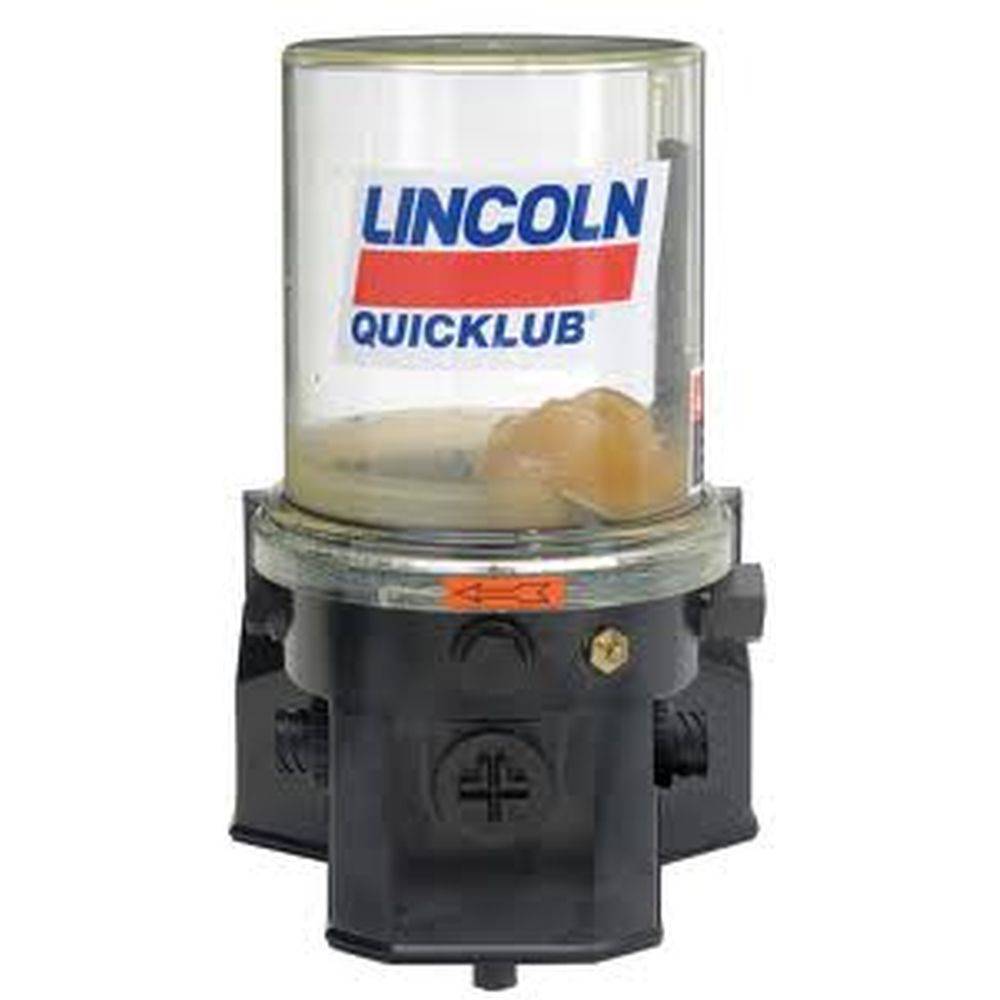

Lincoln Electric Grease Pump W/ RemoteLinc Technology - P203 Series - 12V

These pumps are electrically operated and are used in progressive-type automated lubrication systems. The proven and reliable P203 pump has been designed to develop high operating pressures allowing it to supply NLGI #2 grease in most ambient temperatures.

Easily interfaces with OEM and aftermarket telematics systems.

Allows users to: Remotely monitor and detect low lubricant levels and system faults. Reduce cost by receiving immediate, real-time alerts when lubricant is low or the system is in fault.

  • Lubricant Outlet: 1/8" NPT (F)
  • Max. System Operating Pressure: 5000 psi
  • Electrical Requirements: 12 VDC
  • Reservoir Capacity: 2 liter
Model No. 94223-12
Input 12  VDC @3.5 amps, 24 VDC @ amps 94-265 VAC (50 to 60 Hz)
Enclosure Rating IP6K9K
Interval Between Lube Cycles Min. 4 minutes/Max. 15 hours
Pump Output  0.171 cu. in./min/2.8 cc/min
Outlet Connection  1/8" NPT (f)
Reservoir Capacity  2-,-4,8- or 15-liter
Maximum Recommended Operating Measure  5000 psi/350 bar
Lubricant  Greases NLGI grade 2 (depending on operating temperature and type of lubricant)
Temperature Range -13°F to +158°F
Pressure Relief Valve 4000 psi, ±250 psi/276 bar, ±17 bar
