Electric Grease Pump W/ Timer - No Lid - P203 Series 12V

on-backorder
SKU: 94412LDL
Regular price $1,155.15
Est. Ship Date: Call for Availability

Trusted By

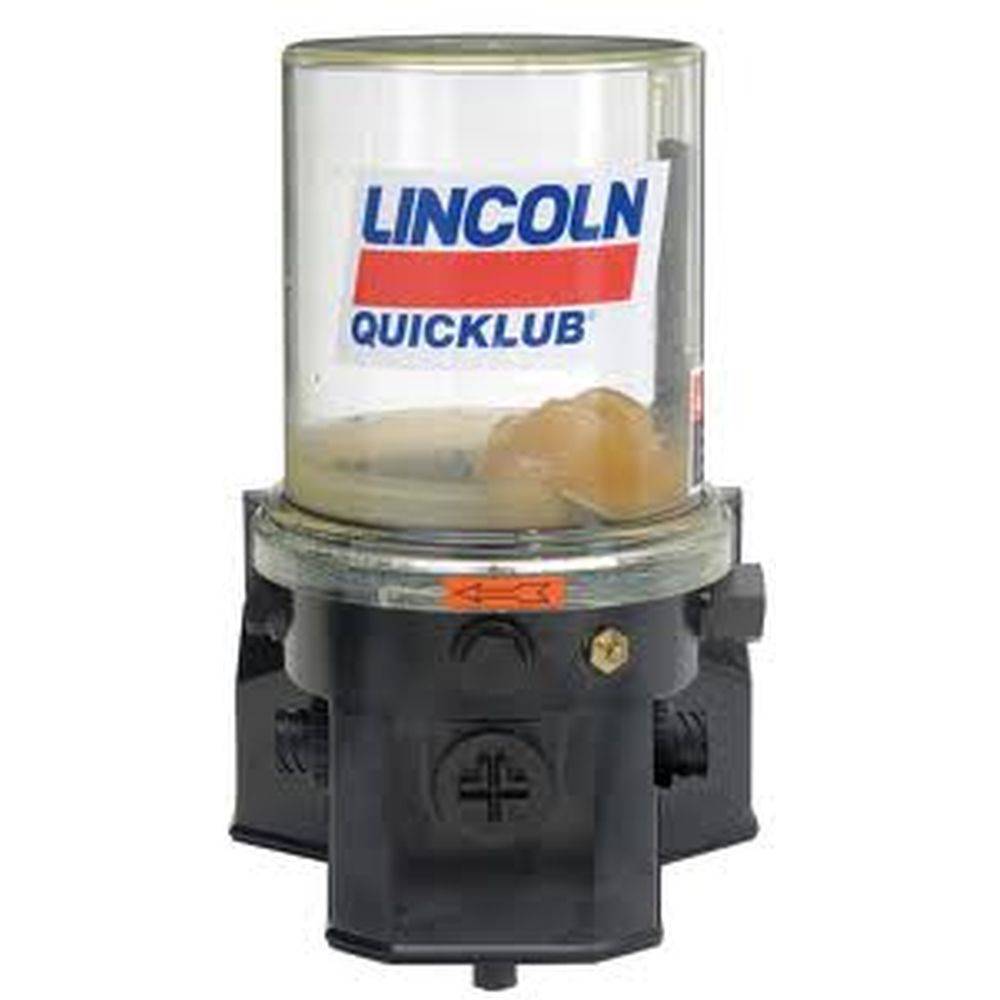

Lincoln Electric Grease Pump W/ Timer - No Lid

These pumps are electrically operated and are used in progressive-type automated lubrication systems. The proven and reliable P203 pump has been designed to develop high operating pressures allowing it to supply NLGI #2 grease in most ambient temperatures.

Versatile, compact and economical, this pump can be enhanced with several options including an integrated controller, low-level monitoring and system monitoring. Special configurations are available upon request.

Electric Grease Pumps with Integrated On/Off Controller:

  • Output/Min Per Element: .171 cu. in./2,8 cc.
  • Lubricant Outlet: 1/8" NPT (f)
  • Maximum System Operating Pressure: 5000 psi/350 bar
  • Enclosure Rating: IP6K9K
  • Operating Temperature Range: Min. -13°F/-25°C / Max. 158°F/70°C
  • Reservoir Capacity: 2-, 4-, 8- or 15-liter
  • Reservoir Fill Method: By grease fitting
  • Pressure Relief Valve: 4000 psi, +/- 250 psi/276 bar, +/- 17 bar
    Model No. 94412LDL
    Electrical Requirements 12 VDC/3.5 Amps
    Interval Timer Setting Minimum (on time) 2 minutes
    Interval Timer Setting Maximum (on time) 30 minutes
    Interval Timer Setting Minimum (off time) 1 hour
    Interval Timer Setting Maximum (off time) 15 hours
    Reservoir Capacity  8 lb.
