Electric Grease Pump W/ Timer - No Lid - P203 Series 24V

In stock
SKU: 94824LDL
Regular price $1,549.93
Est. Ship Date: Call for Availability

Trusted By

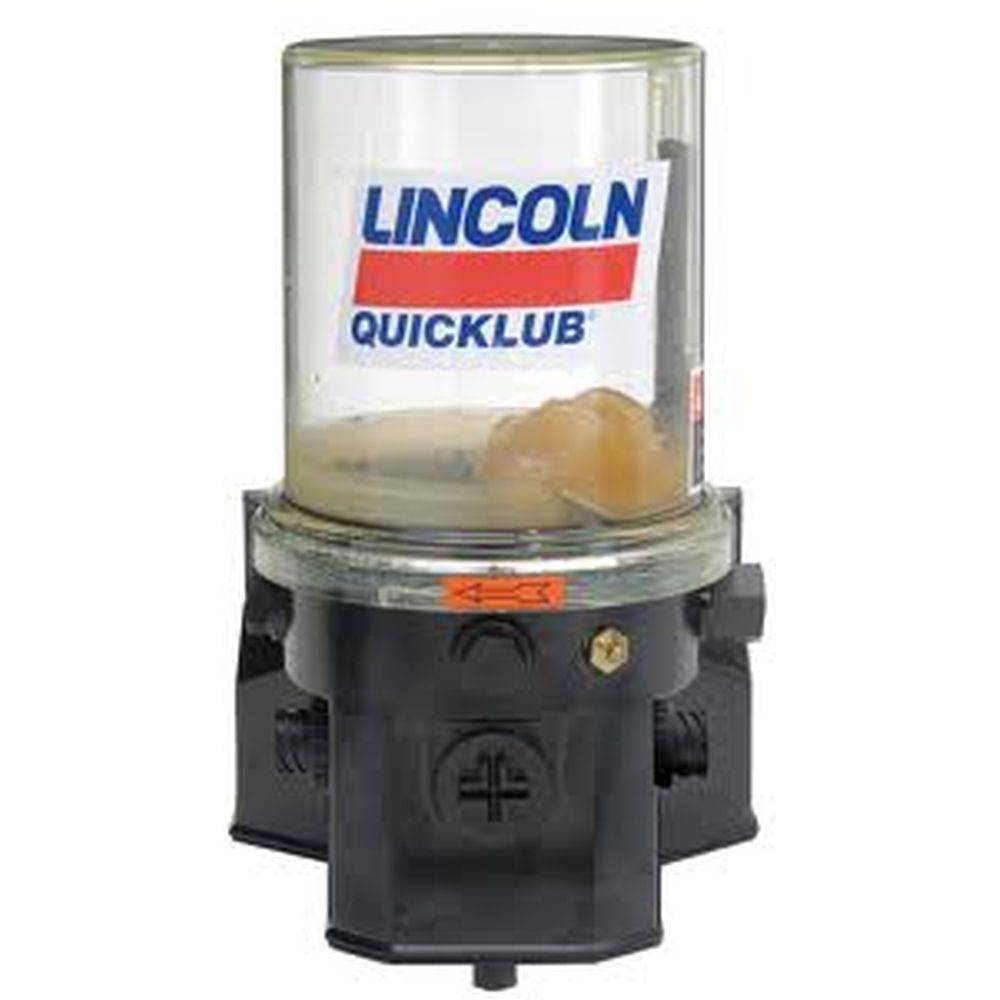

Lincoln Electric Grease Pump W/ Timer - No Lid

These pumps are electrically operated and are used in progressive-type automated lubrication systems. The proven and reliable P203 pump has been designed to develop high operating pressures allowing it to supply NLGI #2 grease in most ambient temperatures.

Versatile, compact and economical, this pump can be enhanced with several options including an integrated controller, low-level monitoring and system monitoring.

  • Lubricant Outlet: 1/8" NPT (F)
  • Max. System Operating Pressure: 5000 psig
  • Electrical Requirements: 24 VDC
  • Reservoir Capacity: 8 liter
Model No. 94824LDL
Output/Min Per Element  .171 cu.in./2.8 cc
Lubricant Outlet 1/8" NPT (f)
Max. System Operating Pressure 5000 psi/350 bar
Enclosure Rating IP6K9K
Operating Temperature Range   Min. -13°F/Max. 158°F
Reservoir Capacity  2-, 4-, 8- or 15-liter
Reservoir Fill Method By grease fitting
Pressure Relief Valve  4000 psi, ±250 psi/276 bar, ±17 bar
