Electric Grease Pump W/ Timer - P203 Series 12V

In stock
SKU: 94012
Regular price $907.76

Trusted By

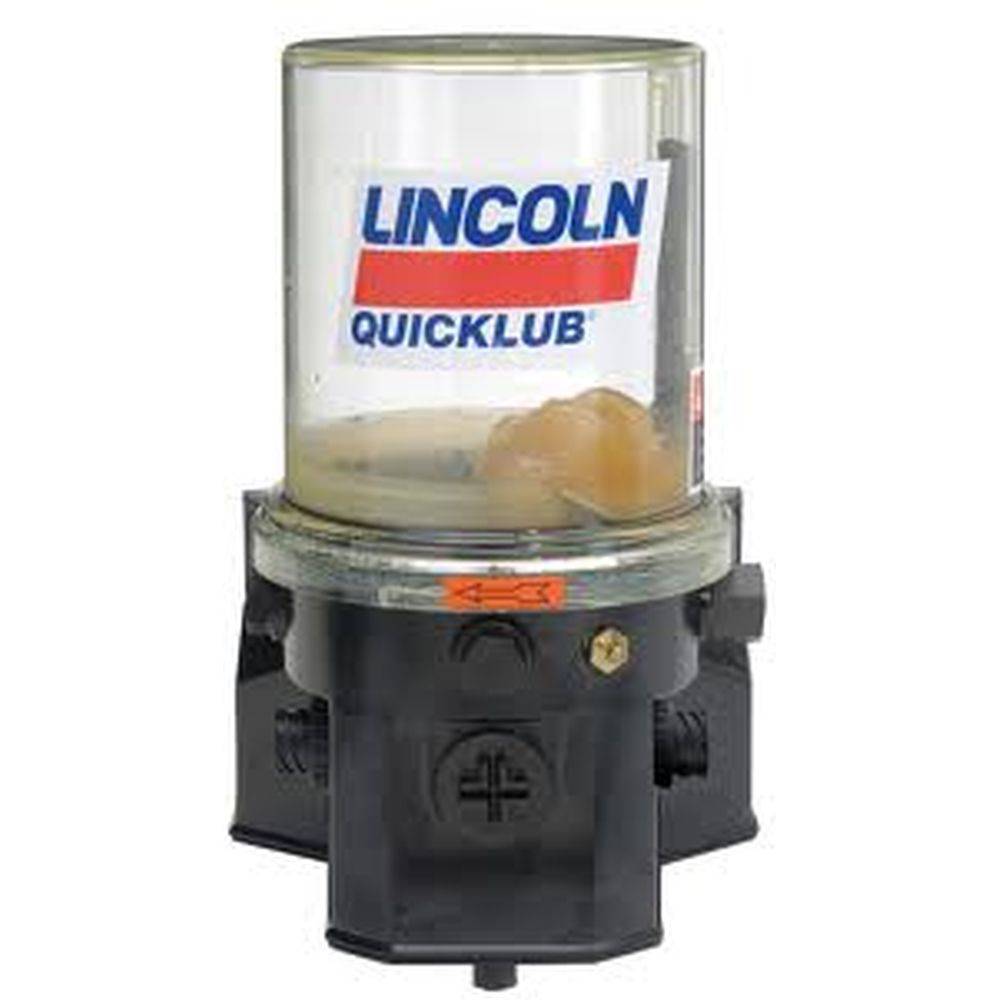

Lincoln Electric Grease Pump W/ Timer

These pumps are electrically operated and are used in progressive-type automated lubrication systems. The proven and reliable P203 pump has been designed to develop high operating pressures allowing it to supply NLGI #2 grease in most ambient temperatures.

Versatile, compact and economical, this pump can be enhanced with several options including an integrated controller, low-level monitoring and system monitoring.

  • Lubricant Outlet: 1/8" NPT (F)
  • Max. System Operating Pressure: 5000 psig
  • Electrical Requirements: 12 VDC
  • Reservoir Capacity: 2 liter
Model No. 94012
Output/Min Per Element  .171 cu.in./2.8 cc
Lubricant Outlet  1/8" NPT (f)
Max. System Operating Pressure  5000 psig/350 bar
Enclosure Rating  IP6K9K
Operating Temperature Range  Min. -13°F/max. 158°F
Reservoir Capacity  2-, 4-, 8-, 15-liter
Reservoir Fill Method  By grease fitting
Pressure Relief Valve  4000 psi, ±250 psi/276 bar/±17 bar
