Heavy Duty Warehouse Guard Rail Column

In stock
SKU: CS-1
Regular price $117.00
Est. Ship Date: Monday, March 4th
Height

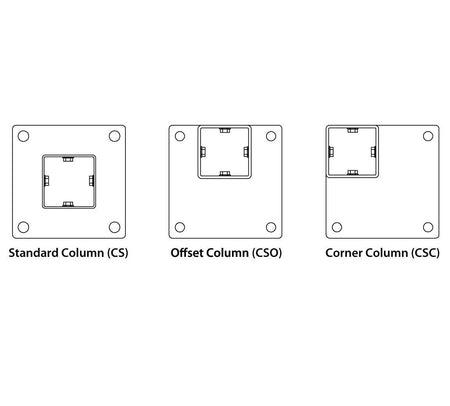

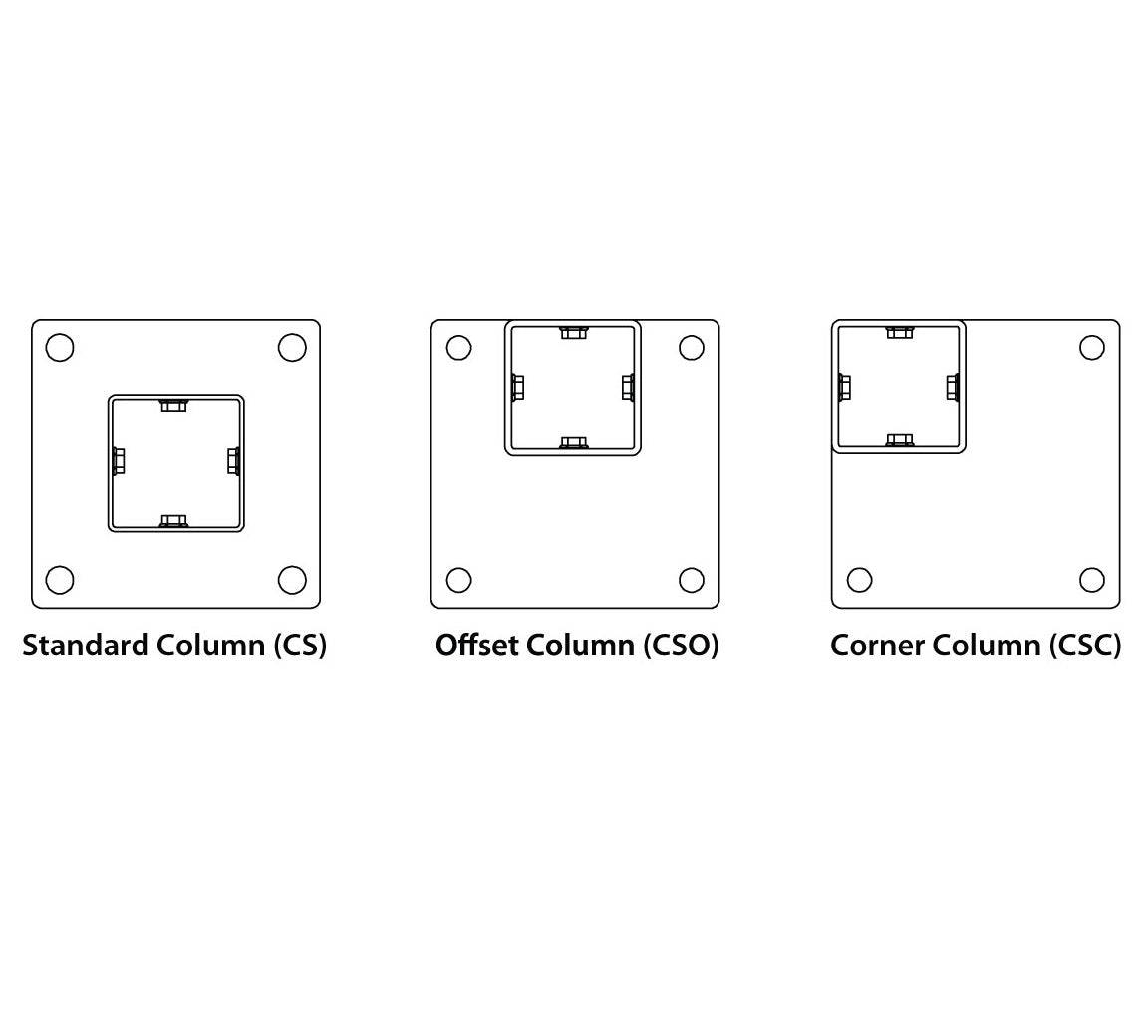

Baseplate
Trusted By

Handle-It® Heavy Duty Warehouse Guard Rail Column

Handle-It Heavy Duty Guard Rail Column, designed to be used with Handle-It guard rail systems. Used as Safety Barriers and Forklift Guardrails. Quick ship stock in Milwaukee, WI warehouse. Available in single or double rail configuration.  Includes cap and hardware.

*Ships out of WI

Lift Out Adapters are sold separately.

Adjustable Pedestrian Gate are sold separately

    Features and Benefits

    • Tested to withstand 10,000 lbs. at 4 mph
    • Powder-coated Handle-It yellow, yields high visibility in a durable finish

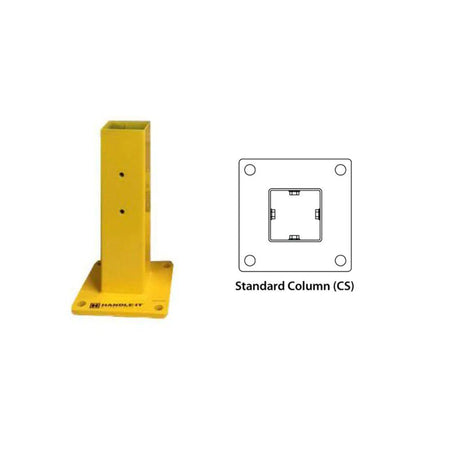

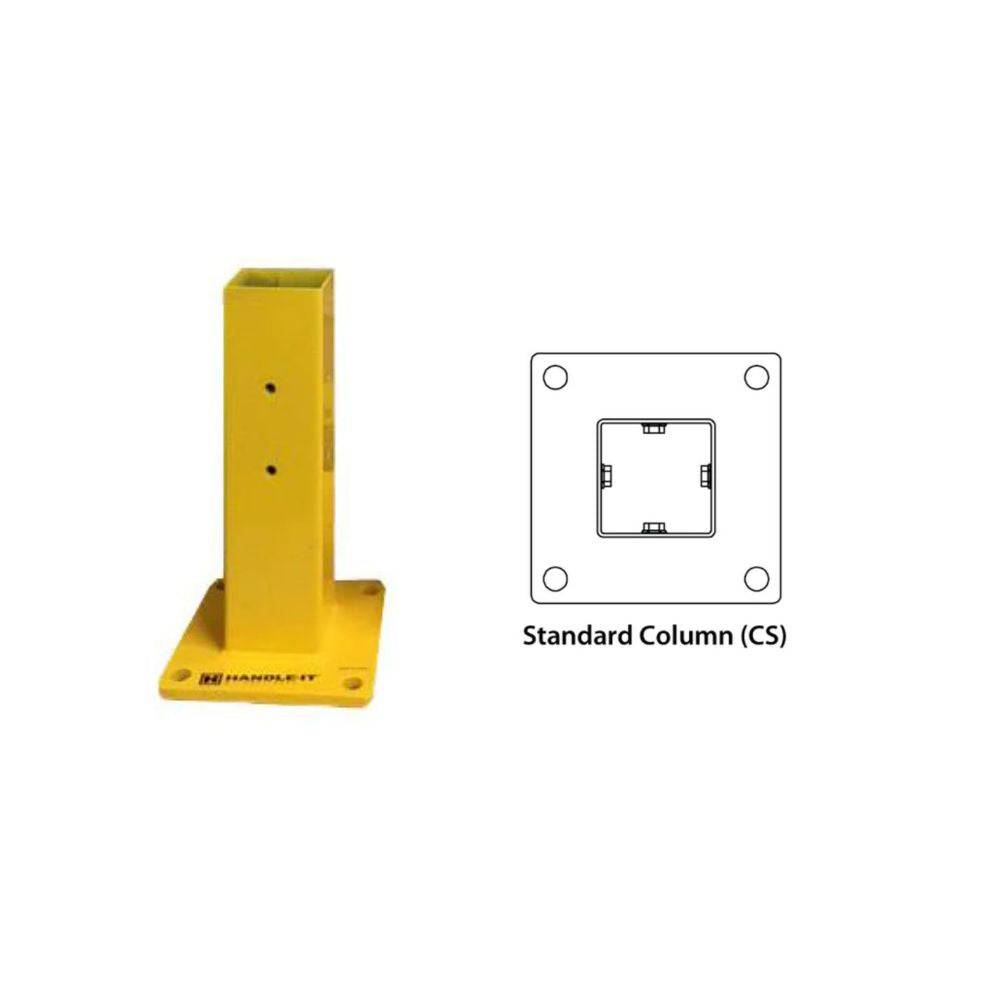

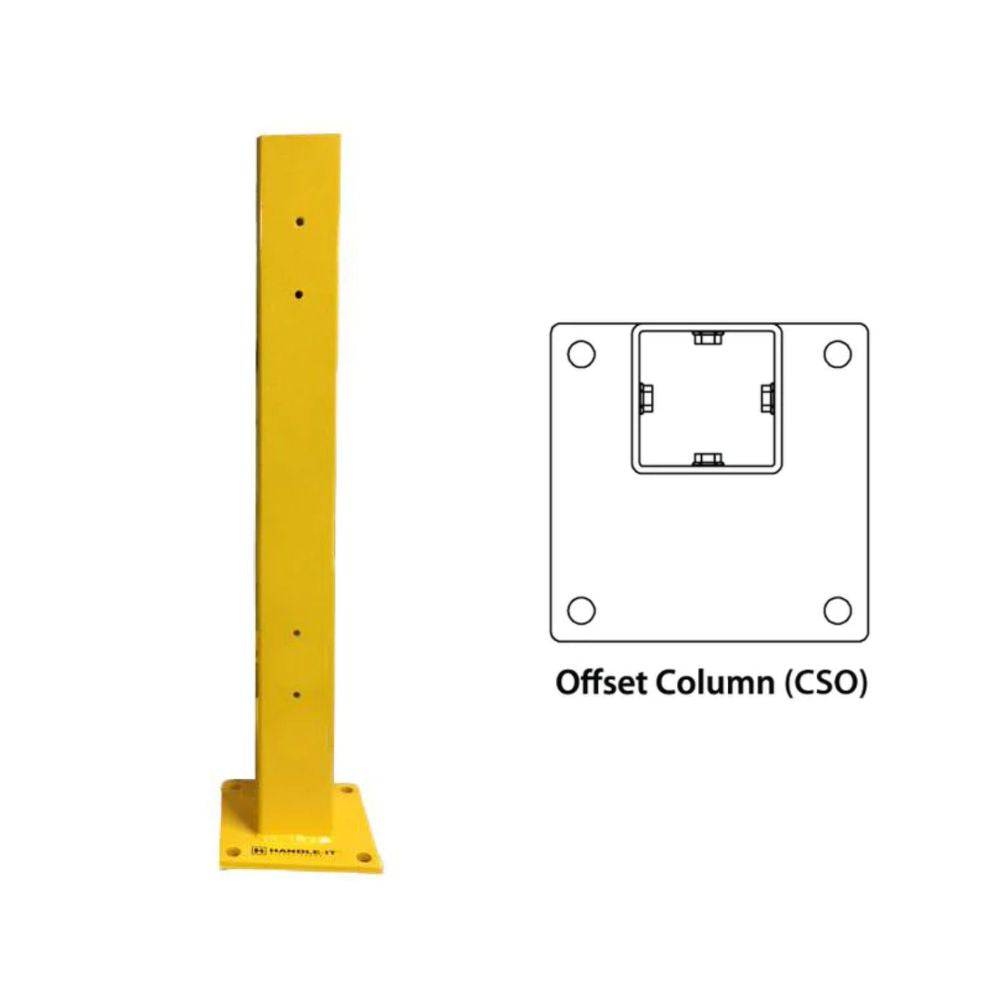

    • Column is 4.75" x 4.75" steel square tube mounted on a 10" x 10" base plate
    • Product design allows for faster installation cutting down on labor costs
    • Drilled & pre-tapped posts have mounting on all four sides

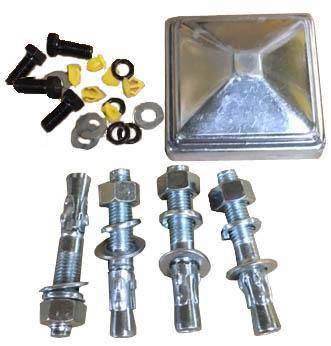

    • All anchors and hardware/caps included
    • In-stock items can ship within 24 hours.

    Areas for Installation

    • Around in-plant offices and workstations
    • Along pedestrian walkways
    • To protect sensitive machines
    • At the end of rack aisles
    • Adjacent to conveyor lines
    • Around mezzanines



    Handle-It Guard Rail Dimensions
    Rail Length
    Center to Center of Columns
    Outside to Outside of Base Plates
    10 Ft. Rail
    115"
    120"
    130"
    9 Ft. Rail
    103"
    108"
    118"
    8 Ft. Rail
    91"
    96"
    106"
    7 Ft. Rail
    79" 84"
    94"
    6 Ft. Rail
    67"
    72"
    82"
    5 Ft. Rail
    55" 60" 70"
    4 Ft. Rail
    43" 48" 58"
    3 Ft. Rail
    31" 36"
    46"
    2 Ft. Rail 19" 24" 34"

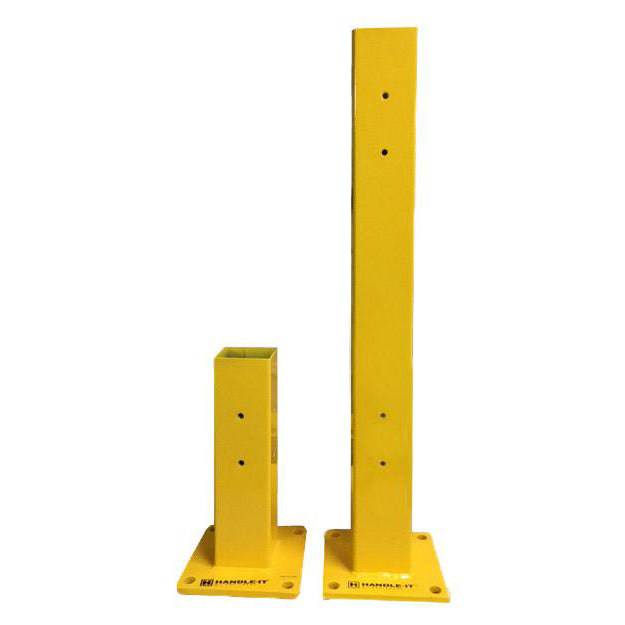

    Column Height

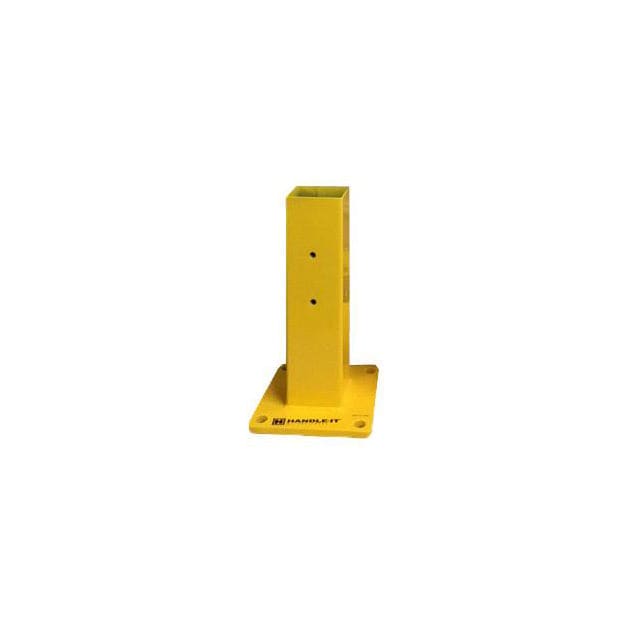

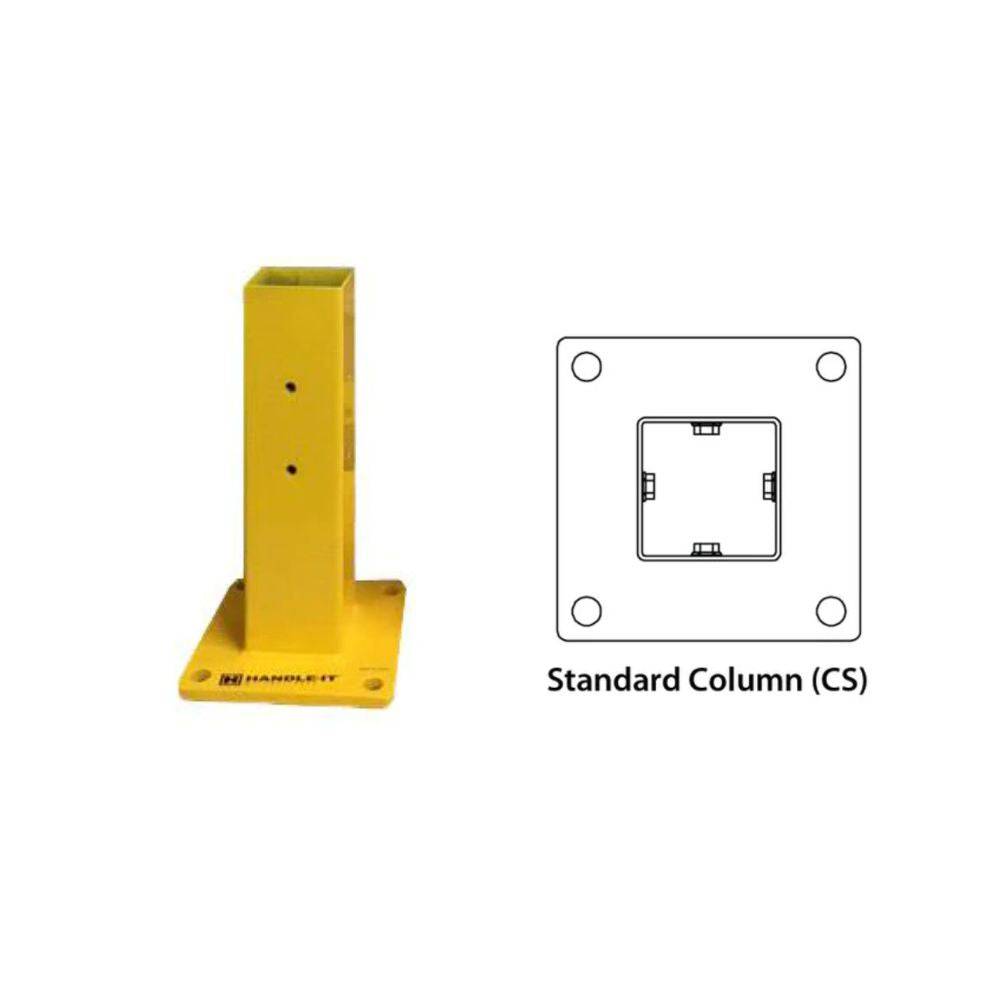

    Single Rail Post
    18.5"

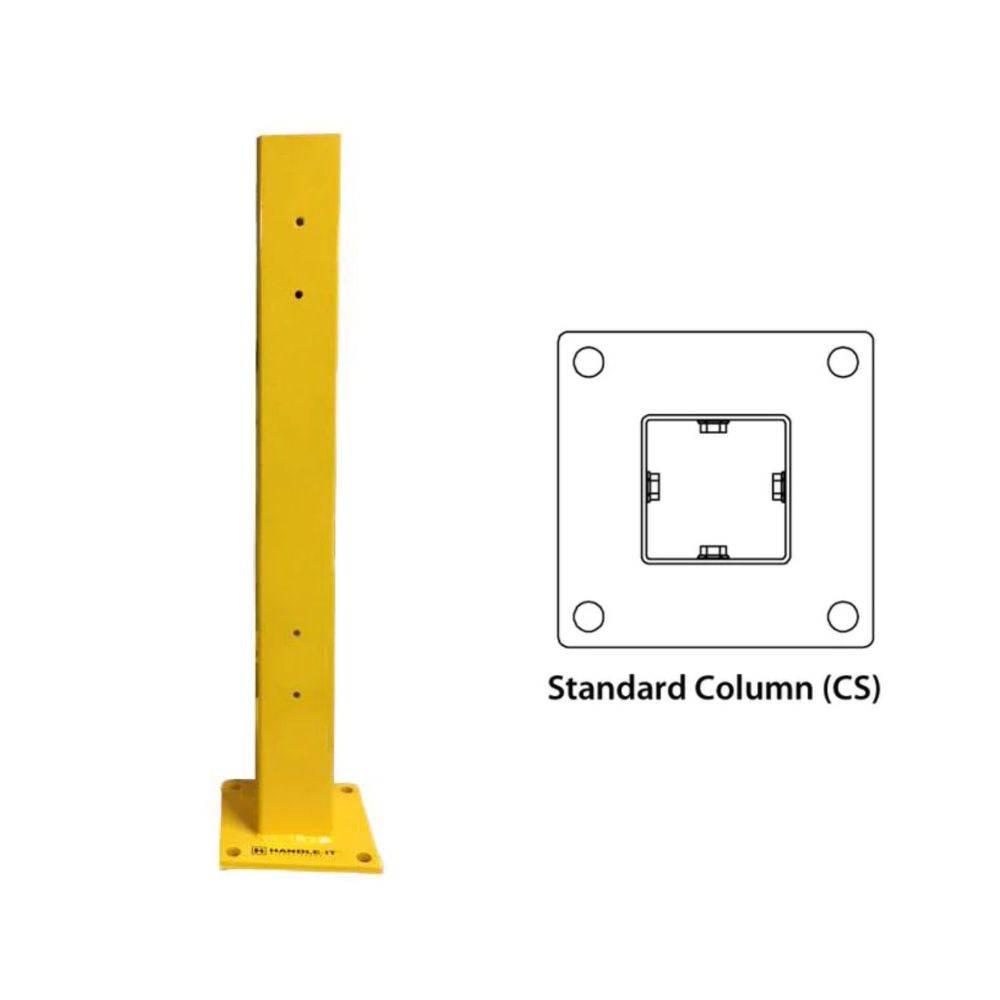

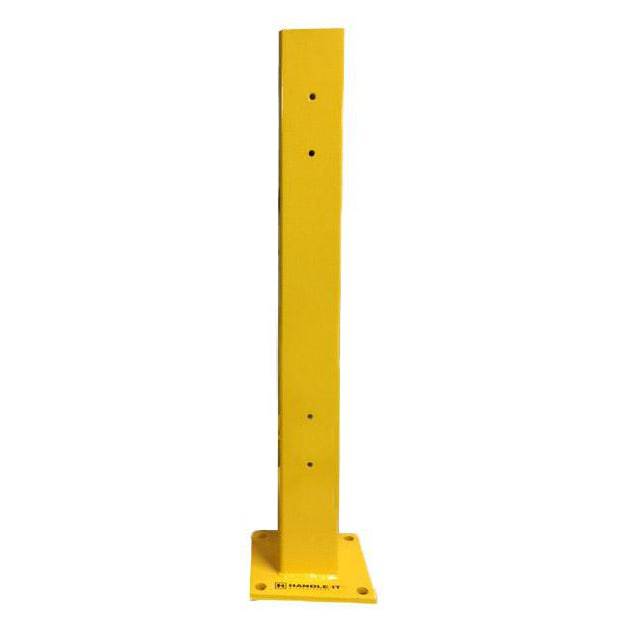

    Double Rail Post
    43"
    Brand Handle-It
    Finish Handle-It Yellow visibility powder coat
    Miscellaneous Custom sizes available
