HTL 201US Lubrication Pump

In stock
SKU: 85446
Regular price $1,815.16
Est. Ship Date: Monday, July 29th
Reliability Over 50 years in the industry, demonstrating reliability.
Serving customers Serving customers across all 50 states.
Heavy-duty Products designed for heavy-duty use.
Return Policy 30 Days Return Policy*
Trusted By

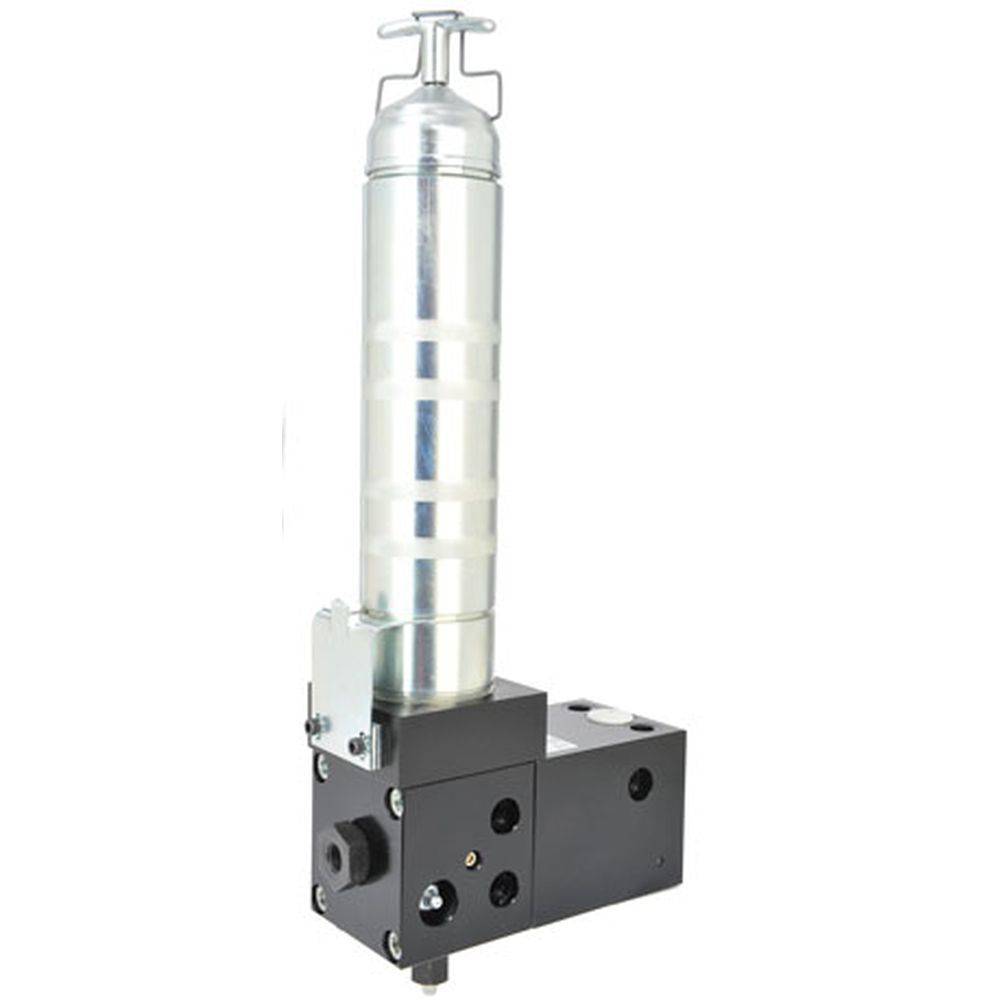

Lincoln® HTL 201US Hydraulic Lubrication Pump

Arms and breakers move constantly and exert enough force to demolish a building or repair roads in a tough environment filled with grit and debris. Many OEMs recommend constant lubrication of that hammer to achieve optimal performance and to hold down maintenance and repair costs. However, deadline-driven operators rarely halt work to grease the hammer, which can lead to breakdowns that grind down productivity and inflate repair expenses. Lincoln's HTL Pumps make precise, consistent lubrication a realty. Now your operator can lubricate the hammer without leaving the cab. The pumps attach directly to the hammer, and your operator, with the push of a pedal, automatically sends a continuous flow of hydraulic fluid to the pump. Then the pump gives continuous grease to lubricate the bearing points. When the operator's foot comes off the pedal, pressure releases the flow in the pump so its ready to lubricate again.

Applications: Construction, OEMs, hydraulic hammer retrofits, demolition attachments, and medium to larger breakers/hammers.

  • Mounts directly on the hydraulic device and lubricates continuously while in operation
  • Continuous lubrication with small quantities during the working cycle
  • Compact design
  • Independent - the pump stays with the tool that requires lubrication even if the carrier unit is exchanged
  • 14.5 oz. cartridge can be replaced or the reservoir bulk filled with the special built-in adapter making it deal for OEMs or rental fleets that specify a specific grease or chisel paste on their equipment
  • Low lubricant level indicator lets operator know when to fill or change cartridges
  • Delivers precise lubrication every time the hammer operates
  • Increase productivity - no work interruption
  • Reduces machine repairs and replacement costs
Model No. 85446
Brand Lincoln
Operating Temperature  -13°F to +140°F/-25°C to +60°C
Hydraulic Port  G 1/4 BSPP O-Ring
Pump Outlet  G 1/4 BSPP O-Ring
Maximum Hydraulic Operating Pressure 1160 to 3045 psi (80 to 210 bar)
Maximum Lube Outlet Pressure  1740 to 3916 psi (120 to 270 bar)
Output Per Stroke  0.13"/stroke (0.22 cm/stroke) to 0.41"/stroke (6.7 cm/stroke)
