Lincoln SL-1 Grease Injector

on-backorder
SKU: 81770-2
Regular price $230.78
Est. Ship Date: Call for Availability

No. of Outlets
Trusted By

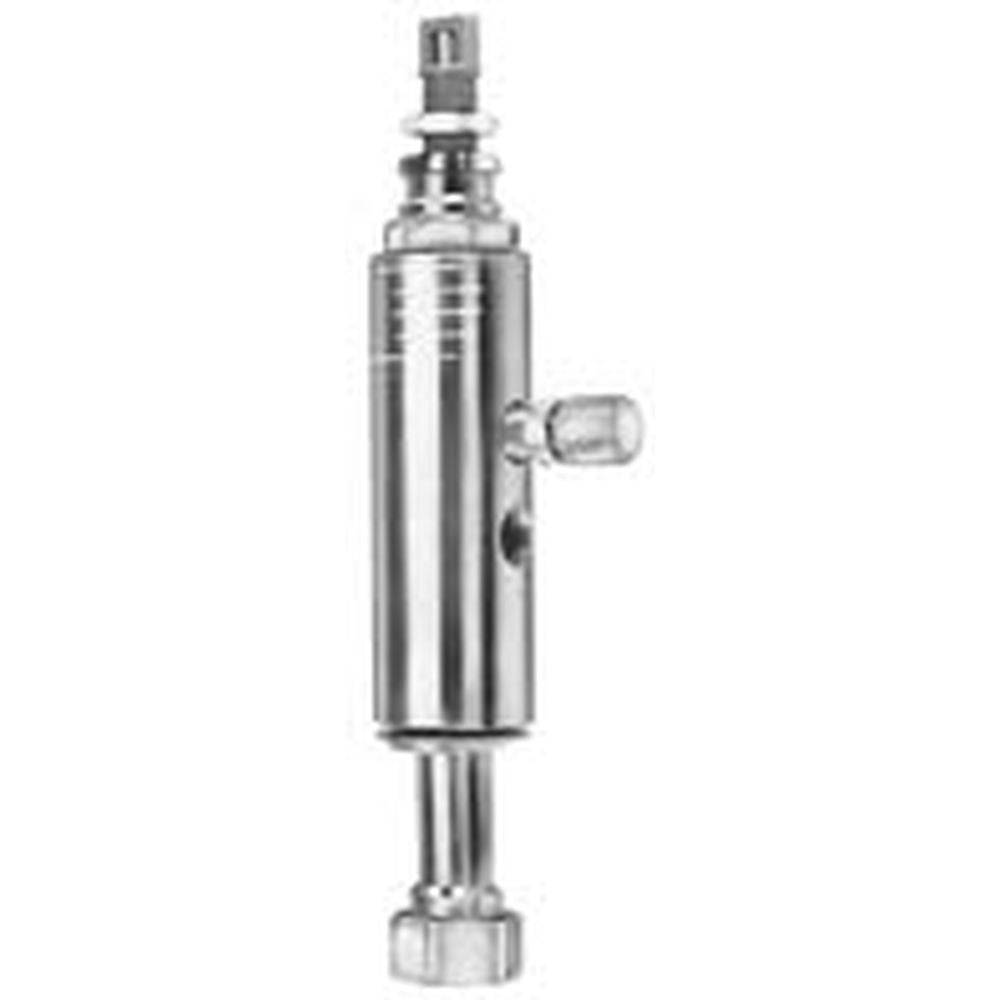

Lincoln® SL-1 Grease Injector

  • For single-line, high-pressure central lubrication system
  • For dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of injectors SL-32, SL-3, SL-V, SL-V XL and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement
  • Available in stainless steel SAE 3 16, for application where environmental conditions are hazardous to carbon steel or in industries preferring stainless steel

Notes:

  • Injector manifolds have 13/32" (10.3mm) dia. mounting holes for 3/8" bolt
  • Injectors have flouroelastomer packings. Check compatibility with synthetic lubricants
  • Injector rated for 350°F (176°C) max. ambient temperature, depending on lubricant used
  • Injectors include fitting for filling feedlines via alternate outlet port
  • Output with adjustment screw hand-tightened is .009 cu. in. Maximum output is achieved with eight turns at .009 cu. in./turn.
Model No. 81770-1
Brand Lincoln
Output Minimum  .008 cu. in./.131 cc
Output Maximum  .080 cu. in./1.31 cc
Operating Pressure Minimum 1850 psi/127 bar
Operating Pressure Maximum  3500 psi/241 bar
Operating Pressure Typical  2500 psi/172 bar
Operating Pressure Vent  600 psi/41 bar
Connections Manifold Inlet  3/8" NPTF (f)
Connections Injector Outlet  1/8" NPTF (f)
Stainless Steel 239351* One Injector Manifold
Number of Outlets  1
