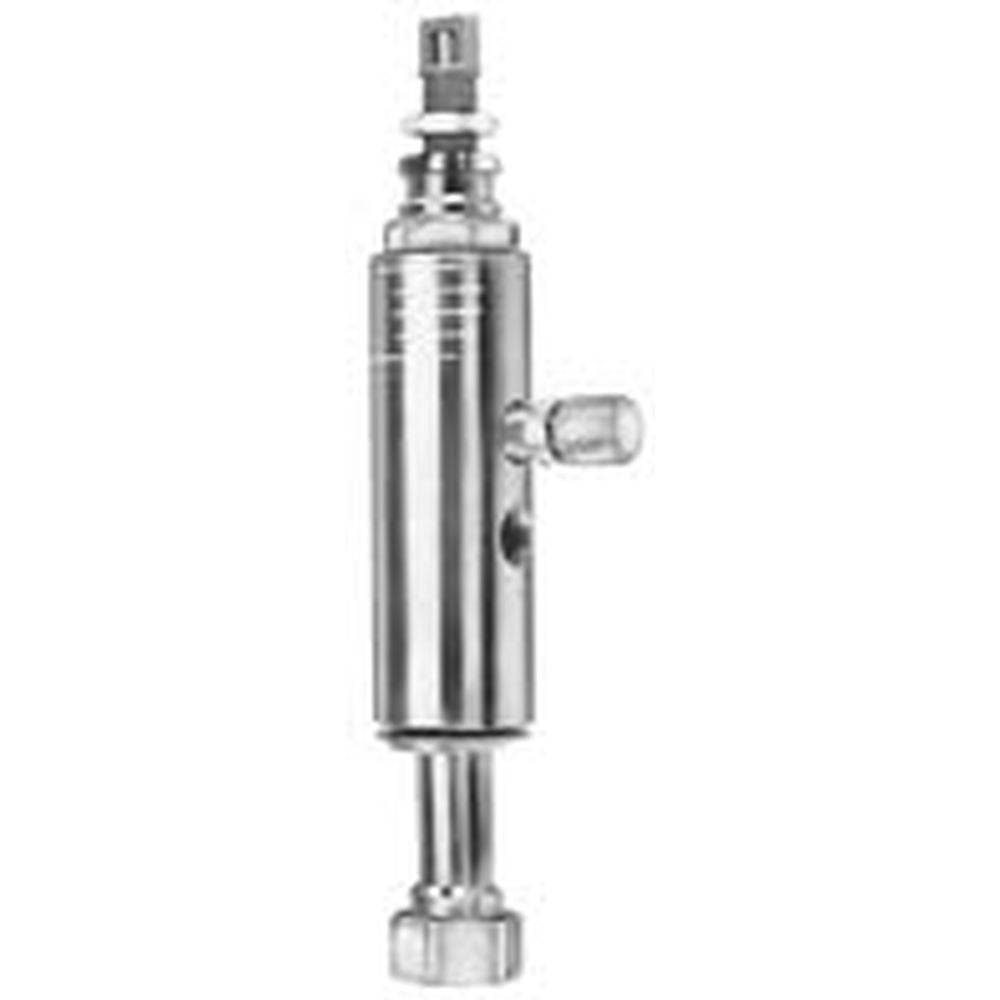

Lincoln SL-1 Single Grease Injector W/O Manifold

In stock
SKU: 81713
Regular price $152.62
Est. Ship Date: Call for Availability
Trusted By

Lincoln® SL-1 Single Grease Injector

  • For single-line, high-pressure central lubrication system
  • For dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of injectors SL-32, S-33, SL-V, SL-V XL and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement
  • Available in stainless steel SAE 316, for application where environmental conditions are hazardous to carbon steel or in industries preferring stainless steel

Notes:

  • Injector manifolds have 13/32" (10.3mm) dia. mounting holes for 3/8" bolt
  • Injectors have flouroelastomer packings. Check compatibility with synthetic lubricants
  • Injector rated for 350°F (176°C) max. ambient temperature, depending on lubricant used
  • Injectors include fitting for filling feedlines via alternate outlet port
  • Output with adjustment screw hand-tightened is .009 cu. in. Maximum output is achieved with eight turns at .009 cu. in./turn
    Model No. 81713
    Brand Lincoln
    Output Minimum  .008 cu. in./.131 cc
    Output Maximum  .080 cu. in. 1.31 cc.
    Operating Pressure Minimum  1850 psi/127 bar
    Operating Pressure Maximum  3500 psi/241 bar
    Operating Pressure Typical  2500 psi/172 bar
    Operating Pressure Vent  600 psi/41 bar
    Connections Manifold Inlet  3/8" NPTF (f)
    Connections Injector Outlet  1/8" NPTF (f)
    Dimensions  Single injector/no manifold, [3/8" NPTF (m) inlet]
