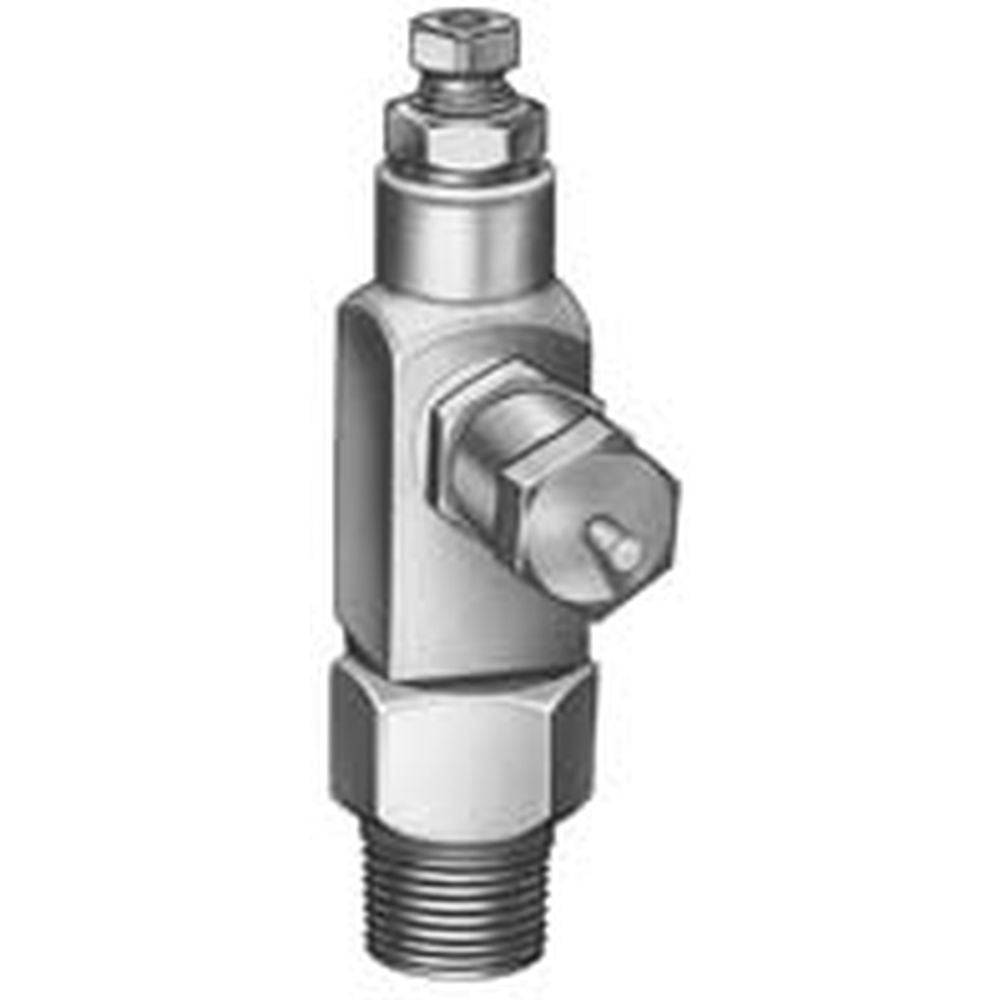

Lincoln® SL-32 Single Grease Injector

  • For single-line, high-pressure central lubrication system
  • For dispensing petroleum-based lubricants with a viscosity up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of injectors SL-33, SL-V, SL-V XL, SL-1 and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement
  • Available in stainless steel SAE 304, for application where environment conditions are hazardous to carbon steel

Notes:

  • Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing - 1/8" O.D. as standard. Other outlet connectors for feed line optional
  • Injectors with manifolds include two mounting clips and screws
  • Injectors have Nitrile packings (200°F max./93°C). Check packing compatibility with synthetic lubricants
  • Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with five turns at .0014 cu. in./turn
Model No. 83338
Brand Lincoln
Output Minimum  .001 cu. in./.016 cc.
Output Maximum  .008 cu. in./.131 cc
Operating Pressure Minimum  1200 psi/83 bar
Operating Pressure Maximum  3500 psi/241 bar
Operating Pressure Typical  1500 psi/103 bar
Operating Pressure Vent  200 psi/14 bar
Number of Outlets
1
Connections Manifold Inlet 1/4" NPTF (m)
Connections Injector Outlet  1/8" O.D. Tube
