Product Overview

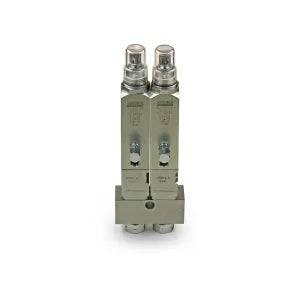

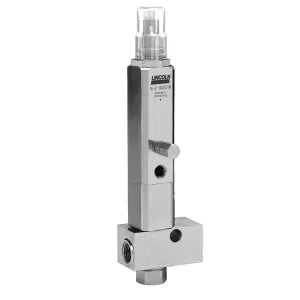

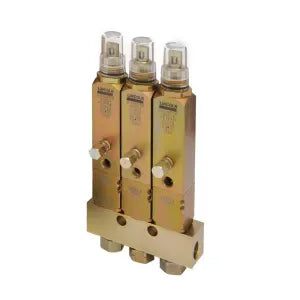

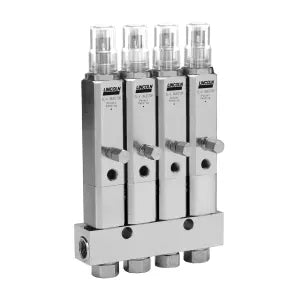

Lincoln- SL-V XL Grease Metering Device, Single Line Parallel Injector for single line, high-pressure central lubrication systems. For dispensing lubricants compatible with polyurethane seals up to NLGI No.2 Output is externally adjustable. Indicator stem permits visual check of injector operation. Individual injectors can be easily removed for inspection or replacement.
Key source specifications include Inlet Connection Size: 3/8; Outlet Connection Size: 1/8; Model 85781; Material: Carbon Steel.
Key Features
- Inlet Connection Size: 3/8
- Outlet Connection Size: 1/8
- Material: Carbon Steel
- Connection Type: NPTF (f)
- Temperature Units: Degrees Fahrenheit
- Maximum Pressure - PSI: 6000
Ideal For
Choose this product if you need:
- Replacement, repair, or installation work involving One-injector to six-injector, series SL-V XL
- lubricants compatible with polyurethane seals up to NLGI No
- Systems operating within the listed pressure specifications
Not Ideal For
Not ideal for equipment outside the listed One-injector to six-injector, series SL-V XL compatibility, pressures above the listed 6000 maximum, or temperatures outside the listed Degrees Fahrenheit range.
Product Details
Review the shared product details below, then use the SKU table to compare injector manifolds. Confirm the inlet connection size, outlet connection size, model / mpn, material before ordering.
Shared Product Details
| Brand | Lincoln Industrial |
| Model / MPN | 85781 |
| Material | Carbon Steel |
| Connection Type | NPTF (f) |
| For Use With Production Type | One-injector to six-injector, series SL-V XL |
| Special Features | Clear protective cap included |
| Temperature Units | Degrees Fahrenheit |
| Maximum Pressure - PSI | 6000 |
| Maximum Working Pressure - PSI | 1850-6000 |
| Inlet Connection Size | 3/8 |
| Outlet Connection Size | 1/8 |
| Outside Diameter | 1-3/8 |
| Item Width | 2-1/2 |
| Maximum Temperature | 180 |
Available SKU Options
| SKU | Configuration Details |
| 85780-1 | Injector Manifolds: 1 |
| 85780-2 | Injector Manifolds: 2 |
| 85780-3 | Injector Manifolds: 3 |
| 85780-4 | Injector Manifolds: 4 |
| 85780-5 | Injector Manifolds: 5 |
| 85780-6 | Injector Manifolds: 6 |
Frequently Asked Questions
What does this fit?
The supplied product data identifies it for One-injector to six-injector, series SL-V XL.
What pressure is listed?
The supplied specifications list 6000.
How many outlets are listed?
The supplied specifications list 1/8.
