Metering Device

on-backorder
SKU: 649-29638-1
Regular price $1,023.59

Trusted By

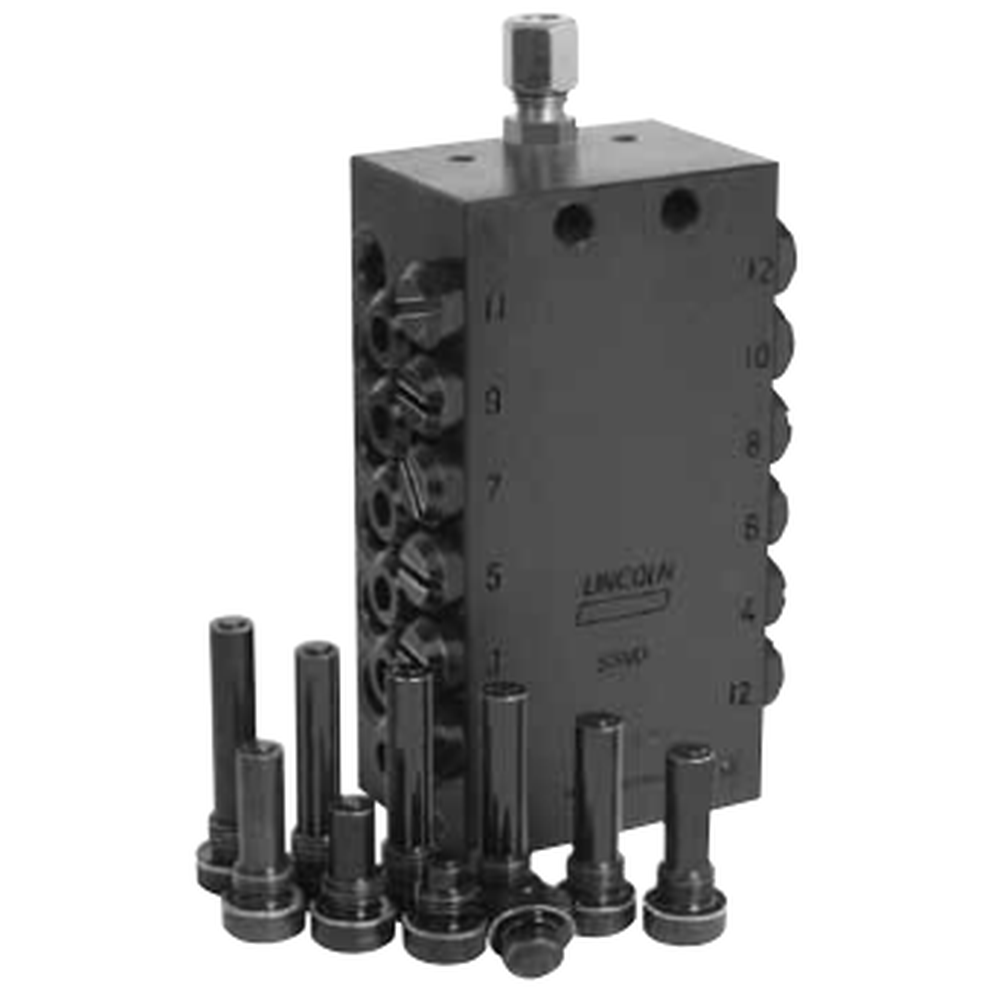

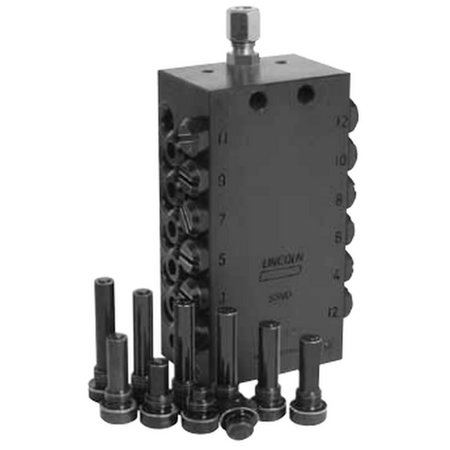

Lincoln Metering Device

SSV-D metering devices are adjustable per outlet pair, thus enabling lubricant requirements to be better met. The metering occurs within the block via metering screws that are available in ten different outputs (sold separately). The outputs of the progressive metering device can be easily set, even after installation. Simply put in a different size metering screw. Tedious reassembly of entire metering device segments is a thing of the past. The SSV-D can be integrated into system using standard SSV metering devices. Both metering device types also use the same components such as piston detector and outlet closure plugs.

Model No. 649-29638-1
Construction Material Carbon Steel
Max. Operating Pressure 5076 psig/350 bar
Output/Outlet Pair/Stroke Min. .0049/.08/Max. .110/1.8
Lubricant Inlet  1/8" NPTF (f)
Operating Temperature  -13°F to 158°F
Maximum Number of Outlets 22
Cycle Indicator Pin Yes
Dimension A 7.48 in./190 mm.
Number of Required Metering Screws 11
