Metering Device W/ Combined Outlets
Couldn't load pickup availability

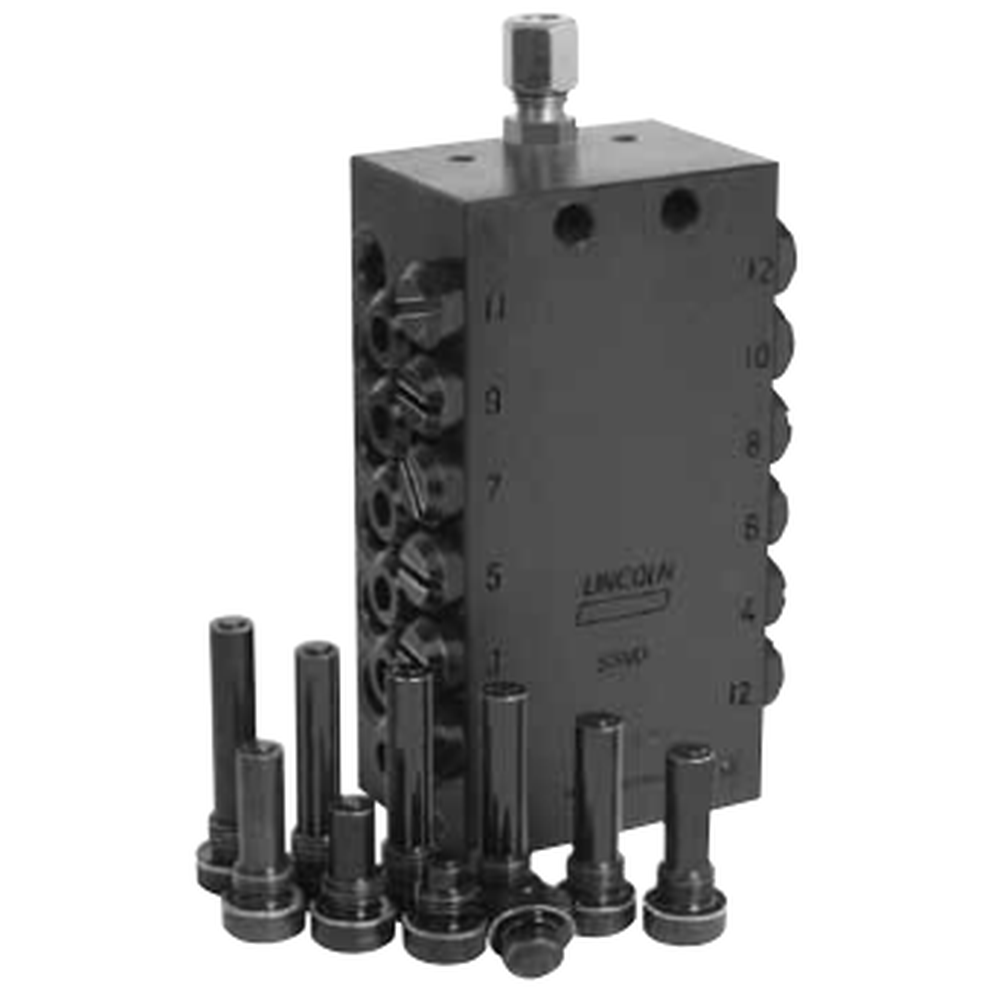

Lincoln Metering Device W/ Combined Outlets
For added installation flexibility, outlets 1 and 2 can singled together. In this configuration, outlets #1 and #5 are internally connected thus doubling the output through one output port.
|Construction Material||Carbon Steel|
|Max. Operating Pressure||5076 psig/350 bar|
|Output/Outlet Pair/Stroke||Min. .0049/.08/Max. .110/1.8|
|Lubricant Inlet||1/8" NPTF (f)|
|Operating Temperature||-13°F to 158°F|
|Description||NPT SSVD 6/5-V1-K-A|
|Maximum Number of Outlets||5|
|Cycle Indicator Pin||Yes|
|Number of Required Metering Screws||3|
