Metering Device W/ Combined Outlets

on-backorder
SKU: 649-29552-1
Regular price $562.26

Trusted By

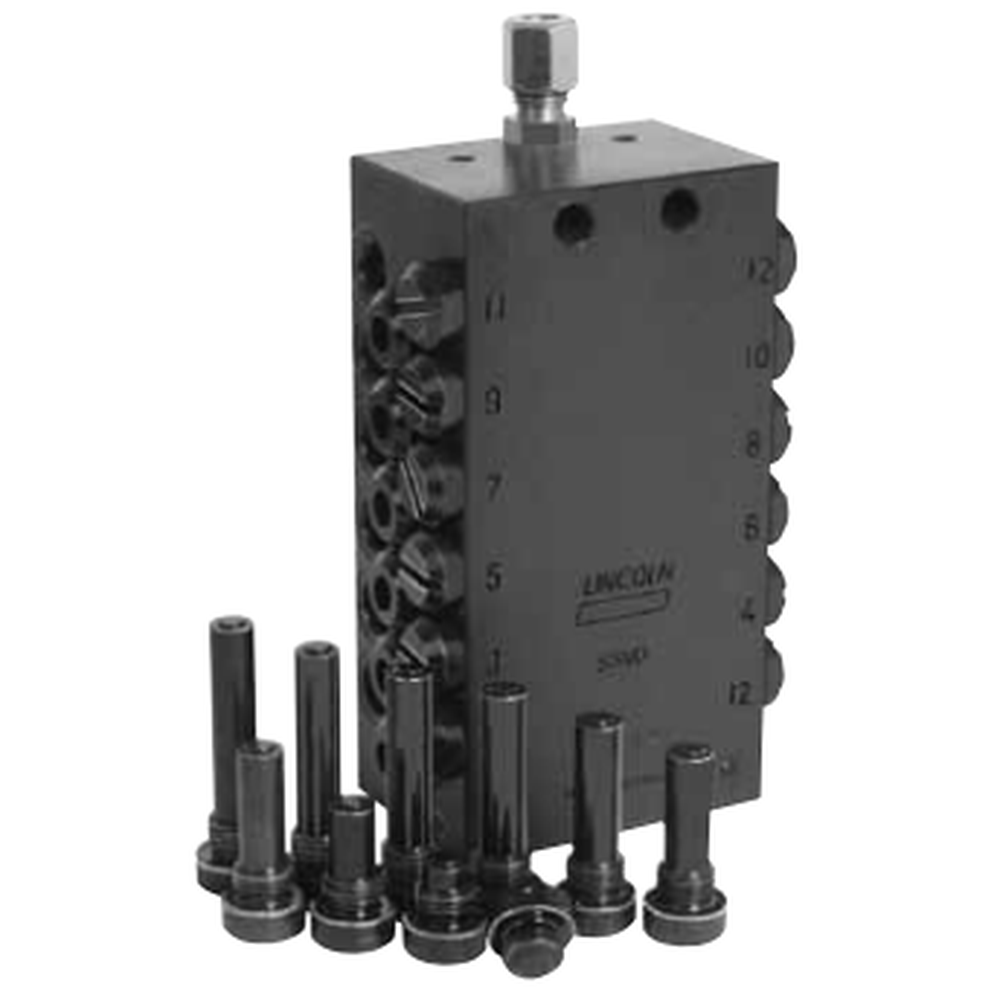

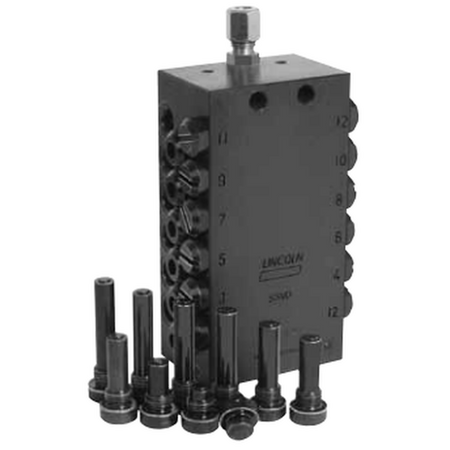

Lincoln Metering Device W/ Combined Outlets

?For added installation flexibility, outlets 1 and 2 can be singled together. In this configuration, outlets #1 and #2 are internally connected thus doubling the output through one output port.

Model No. 649-29552-1
Construction Material Carbon Steel
Max. Operating Pressure 5076 psig/350 bar
Output/Outlet Pair/Stroke Min. .0049/.08/Max. .110/1.8
Lubricant Inlet  1/8" NPTF (f)
Operating Temperature  -13°F to 158°F
Description  NPT SSVD 10/9-V1-K-A
Maximum Number of Outlets  9
Cycle Indicator Pin Yes
Number of Required Metering Screws 5
