Metering Device W/ Combined Outlets

In stock
SKU: 649-29631-1
Regular price $634.20

Trusted By

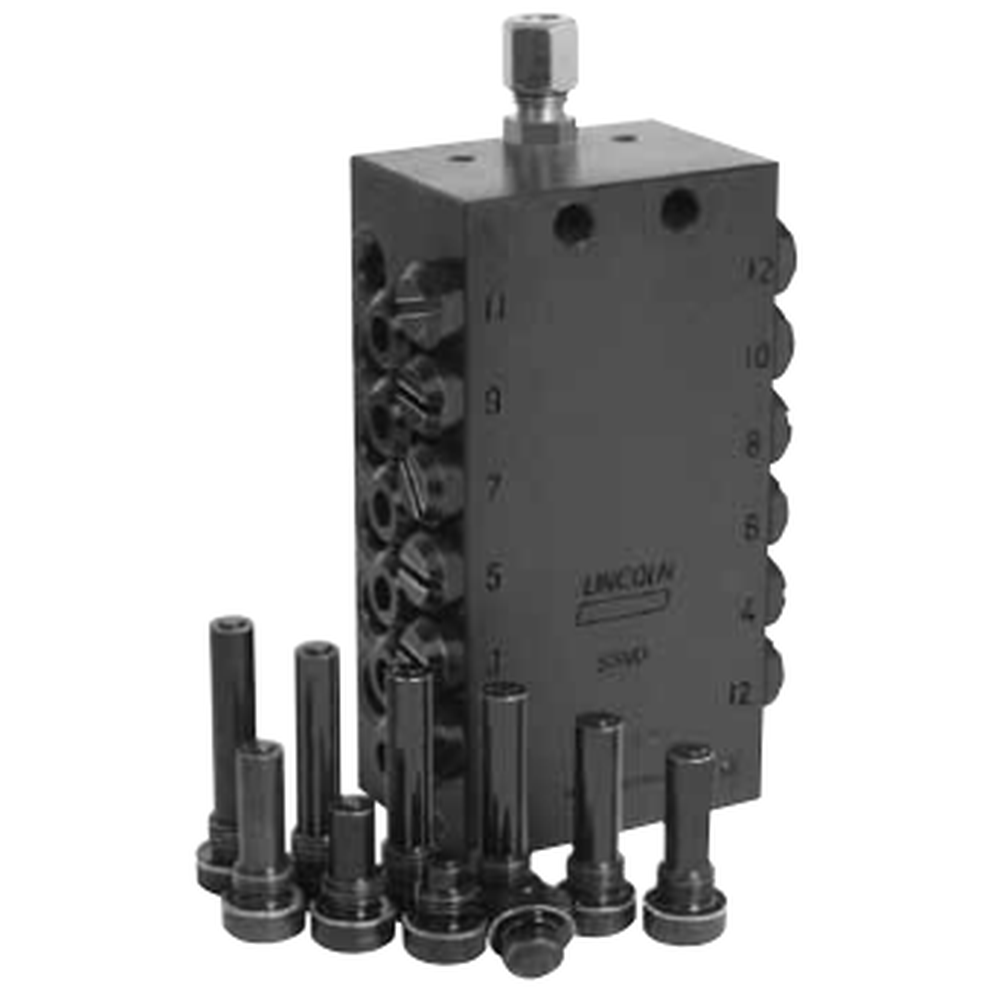

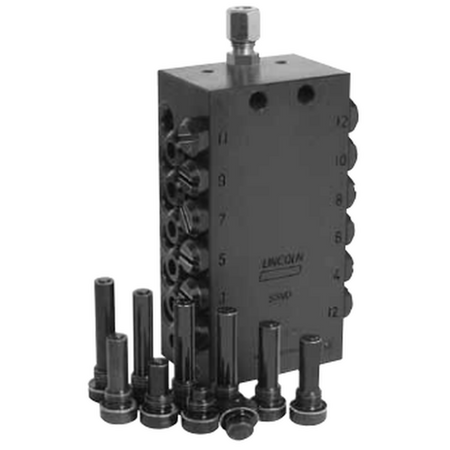

Lincoln Metering Device W/ Combined Outlets

For added installation flexibility, outlets 1 and 2 can singled together. In this configuration, outlets #1 and #2 are internally connected thus doubling the output through one output port.

Model No. 649-29631-1
Construction Material Carbon Steel
Max. Operating Pressure 5076 psig/350 bar
Output/Outlet Pair/Stroke Min. .0049/.08/Max. .110/1.8
Lubricant Inlet  1/8" NPTF (f)
Operating Temperature  -13°F to 158°F
Description  NPT SSVD 16/15-V1-A
Maximum Number of Outlets  15
Cycle Indicator Pin No
Number of Required Metering Screws 8
