Oil Pump 3:5:1 (250 - 275 Gal.)

In stock
SKU: 4491
Regular price $787.83
Est. Ship Date: Friday, April 19th
Trusted By

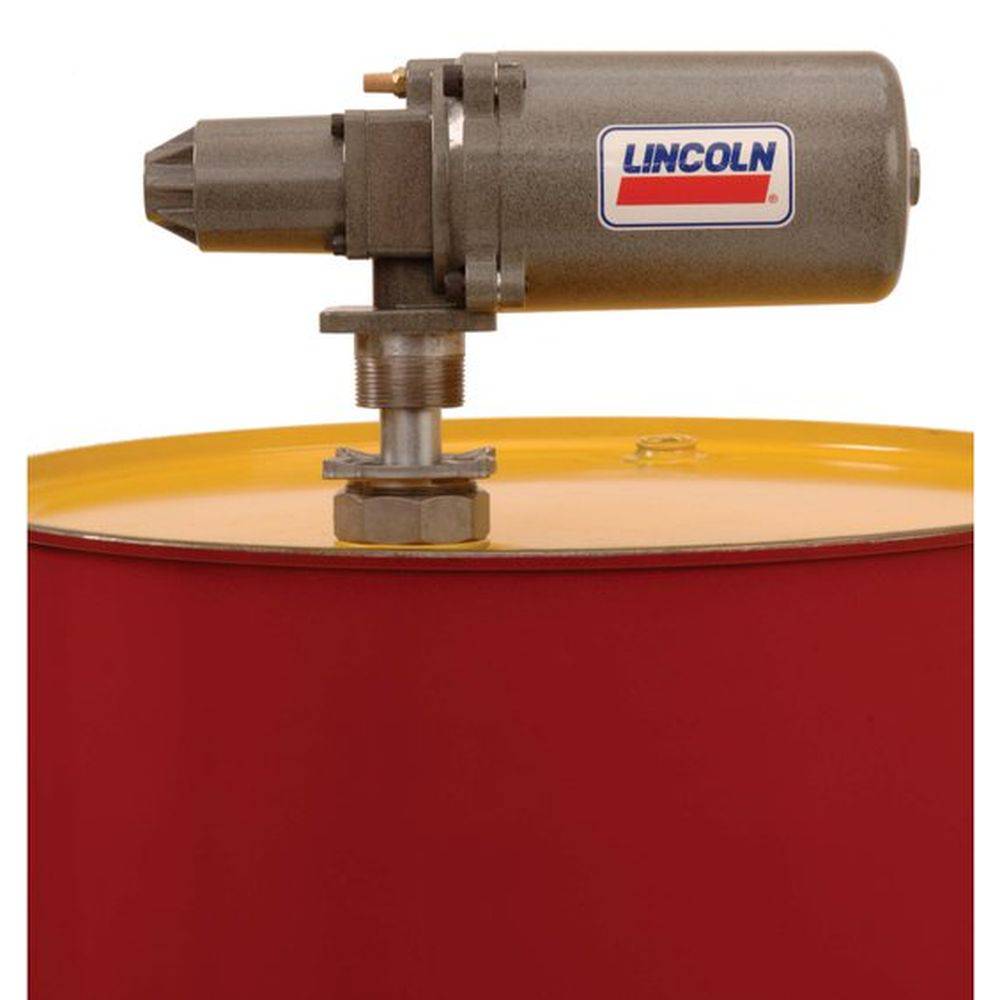

Lincoln® Oil Pump 3:5:1 (250 - 275 Gal.)

Lincoln offers its new Value Series 3.5:1 Air-operated Pump for medium- to low- volume applications such as those found in vehicle service facilities, car dealerships, small contractors, farmers and agriculture equipment dealers. The affordable pump performs quick-dispense, fill or transfer applications with high-volume output.

Available as a stub pump, 16- or 55-gallon pump or pump for a 250- to 275-gallon oval tank, its proven horizontal, valved-piston motor design and single-stroke action deliver reliability, as well as high performance and flow.

Model 4490

Capacity 250 - 275 gal.
Model No. 4491
Brand Lincoln
Pumping Ratio 3:5:1
Output Per Stroke  5.6"
Delivery Output  6 gallons /min.
Pneumatic Inlet Pressure Max. - 120 psi/8,3 bar
Min. - 20 psi/1,4 bar
Operating Temperature Range 30°F to 120°F
Weight (empty) 14 lbs.
Pneumatic Port Inlet  1/4" - 18 NPTF
Material Port Outlet  1/2 NPTF
Recommended Fluids  Motor oils, transmission fluid, petroleum - based fluids
Application 250 to 275 oval tank
Mounting  2 NPT male bung adapter
Size  47"
