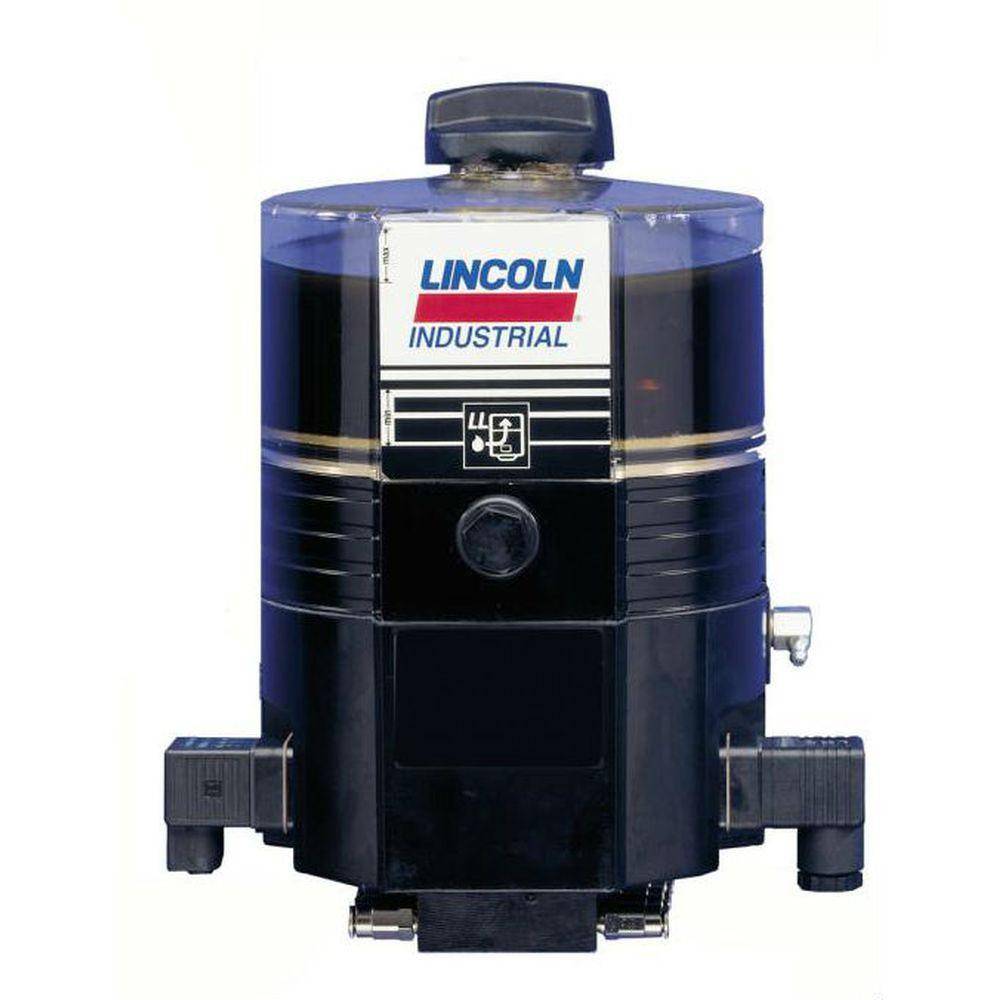

Lincoln Quicklub® QLS 311 Electric Oil Pump

Unit includes pump, control monitor, and metering valve and is ready to go "out of the box." Pump includes built-in controller with LED display and keypad for easy programming, system cycle monitoring, a built-in low-level control, and remote monitoring capability. Unit offers the advantages of automated lubrication, including reduced downtime and improved safety, to machinery large and small.

Model No. P31142611114
Operating Voltage - 120 VAC
Operating Current  - 120 VAC/1.0 A
Operating Temperature -10°F to 158°F/-25°C to 70°C
Number of Outlets 8
Valve Mount Bottom
Reservoir Capacity  61"/1.0 L
Protection NEMA 4
Lubrication Cycle Time  - AC: 20 min. to 60 hours
Number of Cycles - For VAC-SSV6/SSV8: 1 to 3 cycles
Timer Memory  Indefinite
Maximum Operating Pressure  1160 psi/80 bar
Output per Outlet & Cycle  approx. 0.012"/approx. 0.2 cm.
Lubricant  oil with at least 40cSt.
Weight  14.9 lb.
