Quicklub QLS 301 Back Valve Remote Control (SSV6)

Regular price $962.54 Sale

3 - 5 Business Days

P30131411110

Lincoln Industrial

$962.54

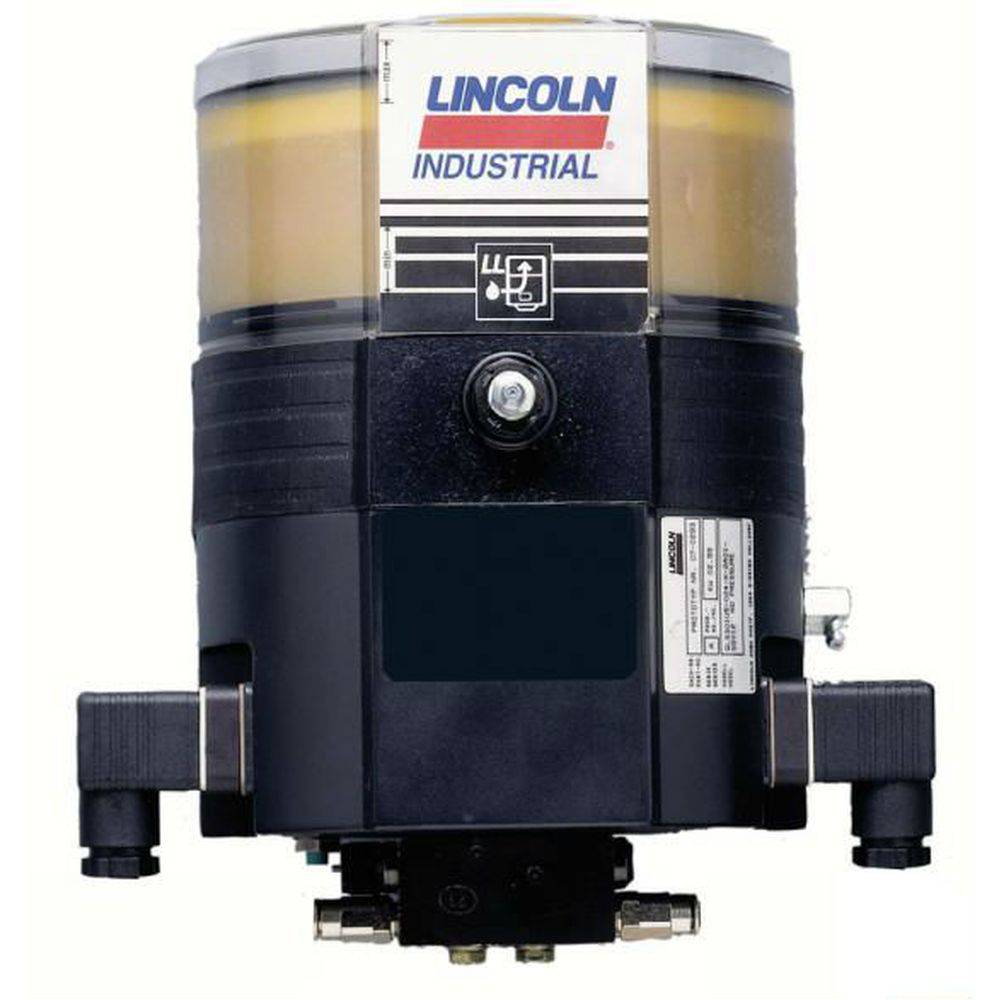

Lincoln® Quicklub QLS 301 For Grease Back Valve Remote Control SSV6 Valve Type

The QLS 301/311 for Remote Control allows customers to be in control of the lubrication process. The 24 VDC models monitor system cycling with a proximity  switch. An external timer or PLC controls the interval between lube cycles. The 120 VAC models have no cycle monitoring and are on/off controlled by the users external timer or PLC. The minimum pause time requirements should be followed when setting up the external controller.

Installation kit comes with everything that's needed for quick set-up. And both units come in versions for 6 12 or 18 lube points. Environmentally-friendly, with a built in safety valve and overfill protection.

  • Compact pre-assembled pump and metering valve work with customer's PLCs, no need for separate controller.
  • Handle up to NLGI #2 grease for QLS 301
  • Works between -10°F and 158°F allowing operation in many environments



Model No. P30131411110
Brand Lincoln
Operating Voltage -24 VDC
-120 VAC
-50/60 Hz
Operating Current -24 VDC/1.0 A
-120 VAC/1.0 A
Operating Temperature -10°F to 158°F/-25° to 70°C
Number of Outlets 6, 8, 12 or 18
Reservoir Capacity 61"/1.0L
Protection NEMA 4
Minimum Pause Time 4 min. DC models/20 min. AC models
Maximum Operating Time 25 min. DC models/15 min. AC models
Timer Memory  Indefinite
Maximum Operating Pressure Grease: 3000 psi/205 bar
Oil: 1160 psi/80 bar
Output per Outlet & Cycle approx. 0.012"/approx. 0.2 cm.
Lubricant  up to NLGI 2 grease or oil with at least 40 cSt.
Weight  12.5 lbs./5.7 kg
