Quicklub QLS 301 Electric Grease Pump Back Valve 12 or 24 VDC (SSV12)

In stock
SKU: P30161411154
Regular price $1,238.51

Voltage
Trusted By

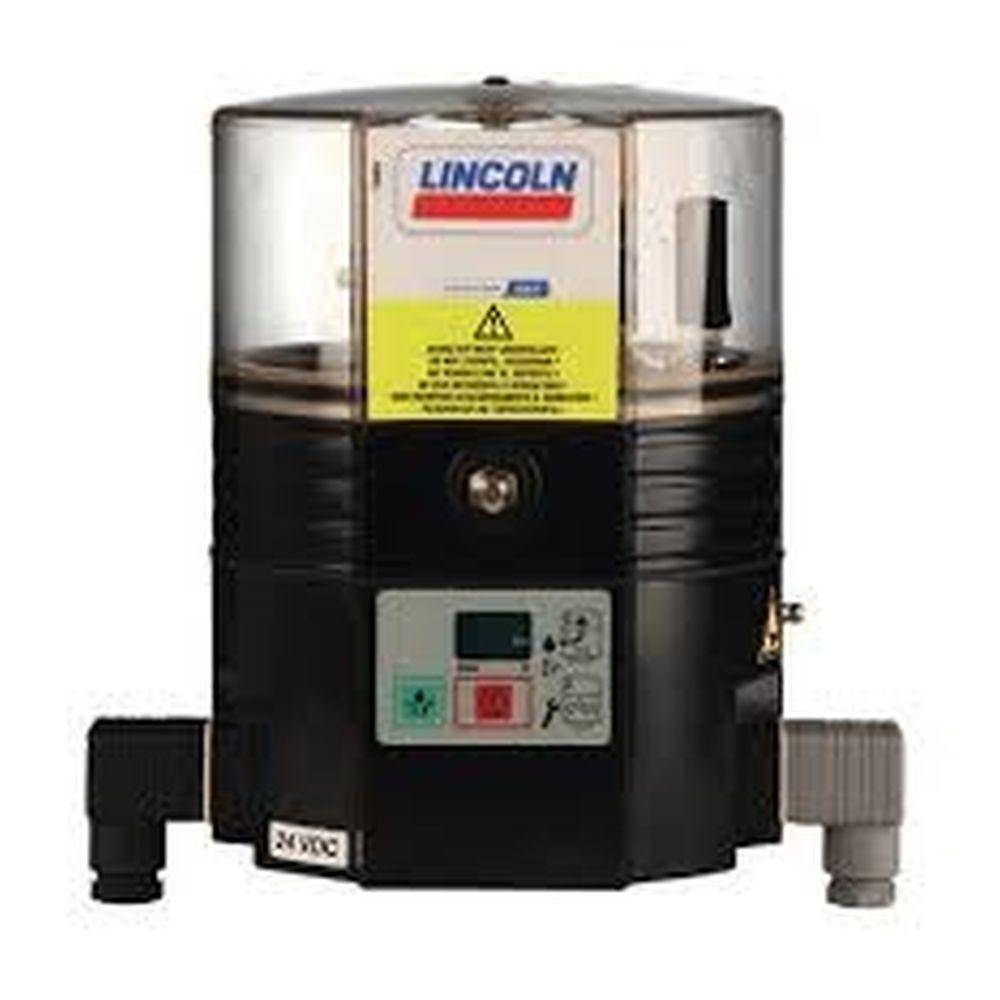

Lincoln Quicklub QLS 301 Electric Grease Pump

It's compact, rugged, easy to install and easy to use. It has a long list of standard features including built-in controlled with LED display and keypad for easy programming, system cycle monitoring, a built-in low-level control and remote monitoring capability. For those who thought the reduced the downtown and improved safety of automated lubrication were out of reach, and for those waiting for a cost-effective system for their smaller machinery, the reliable QLS 301 is the answer. It's automated lubrication "made easy."

  • Same as QLS 401 except it has a spring-loaded follower allowing for mounting pump horizontally
  • Uses NLGI #2 grease
Model No. P30161211154 or P30161411154
Operating Voltage - 12 or 24 VDC
Operating Current  - 12 VDC/2.0 A
- 24 VDC/1.0 A
Operating Temperature  - -10°F to 158°F
Number of Outlets 12
Valve Mount Back
Reservoir Capacity  61"/1.0 L
Protection NEMA 4
Lubrication Cycle Time - DC: 4 min. to 60 hours
Number of Cycles  - For VDC: 1 to 5 cycles
Timer Memory  Indefinite
Maximum Operating Pressure  3000 psi/205 bar
Output per Outlet & Cycle  approx. 0.012"/approx. 0.2 cm.
Lubricant  NLGI 2 grease
Weight  19.5
