Product Overview

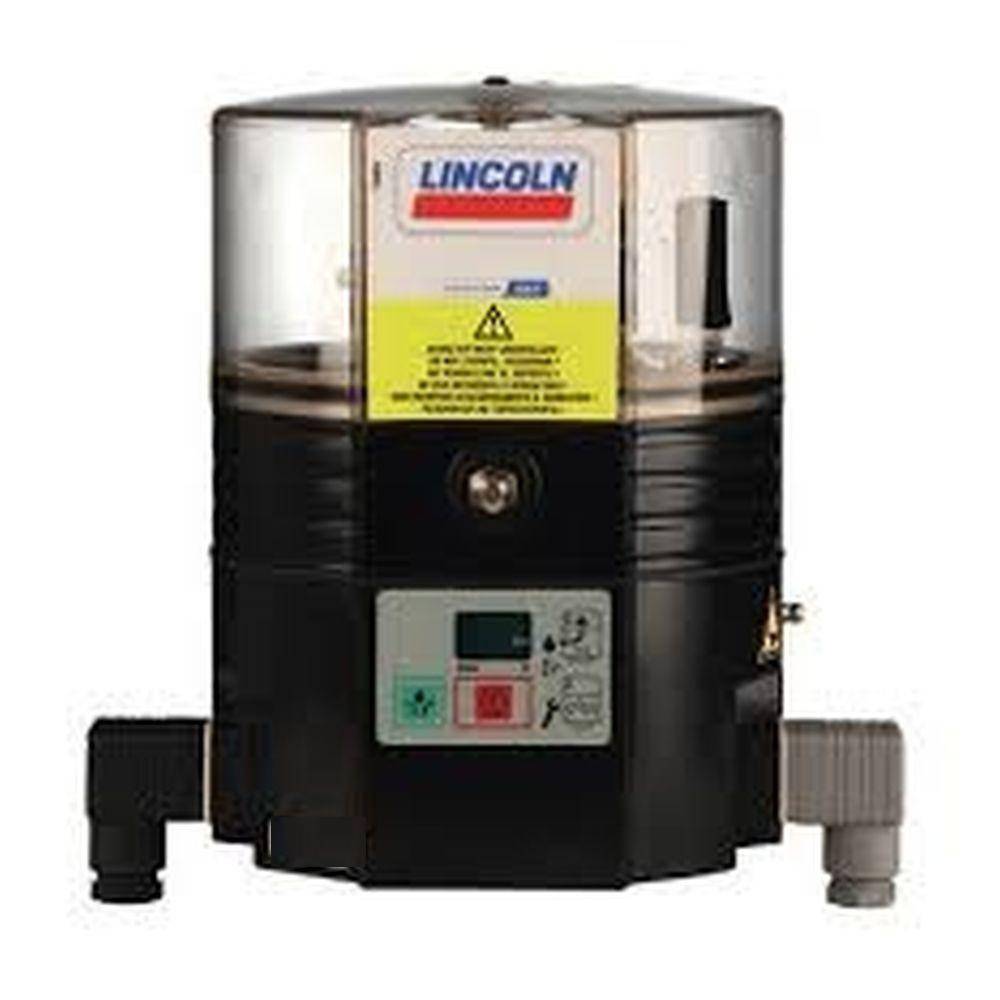

Lincoln Quicklub QLS 301 Electric Grease Pump It's compact, rugged, easy to install and easy to use. It has a long list of standard features including built-in controller with LED display and keypad for easy programming system cycle monitoring, a built-in low-level control and remote monitoring capability. For those who thought the reduced downtime and improved safety of automated lubrication were out of reach, and for those waiting for a cost effective system for their smaller machinery, the reliable QLS 301 is the answer.
Key source specifications include Output per Outlet & Cycle: approx. 0.012 in./approx. 0.2 cm.; Reservoir Capacity: 61"/1.0L; Operating Current: - 120 VAC/1.0 A - 230 VAC/0.5 A; Operating Temperature: - -10°F to 158°F/-25°C to 70°C.
Key Features
- Output per Outlet & Cycle: approx. 0.012 in./approx. 0.2 cm
- Reservoir Capacity: 61"/1.0L
- Operating Current: - 120 VAC/1.0 A - 230 VAC/0.5 A
- Operating Temperature: - -10°F to 158°F/-25°C to 70°C
- Number of Outlets: 12
- Protection Rating: NEMA 4
Ideal For
Choose this product if you need:
- Lubrication systems using NLGI 2 grease
- Systems operating within the listed pressure specifications
Not Ideal For
Not ideal for pressures above the listed 3000 psi/205 bar maximum, lubricants outside the listed NLGI 2 grease compatibility, or temperatures outside the listed - -10°F to 158°F/-25°C to 70°C range.
Product Details
Review the shared product details below, then use the SKU table to compare voltage. Confirm the output per outlet & cycle, reservoir capacity, operating current, operating temperature before ordering.
Shared Product Details
| Brand | Lincoln Industrial |
| Operating Current | - 120 VAC/1.0 A - 230 VAC/0.5 A |
| Operating Temperature | - -10°F to 158°F/-25°C to 70°C |
| Number of Outlets | 12 |
| Reservoir Capacity | 61"/1.0L |
| Protection Rating | NEMA 4 |
| Lubrication Cycle Time | - AC: 20 min. to 60 hours |
| Number of Cycles | - For SSV12: 1 cycle |
| Timer Memory | Indefinite |
| Maximum Operating Pressure | 3000 psi/205 bar |
| Output per Outlet & Cycle | approx. 0.012 in./approx. 0.2 cm. |
| Lubricant | NLGI 2 grease |
| Weight | 19.5 |
| Model No. | P30162611114 (120v) P30162811114 (230v) |
Available SKU Options
| SKU | Configuration Details |
| P30162811114 | Voltage: 230 VAC |
| P30162611114 | Voltage: 120 VAC |
Frequently Asked Questions
What pressure is listed?
The supplied specifications list 3000 psi/205 bar.
How many outlets are listed?
The supplied specifications list 12.
How do I choose a SKU?
Use the Available SKU Options table to match the listed configuration to your system.
