Quicklub QLS 311 Oil Back Valve Remote Control (SSV6)
Couldn't load pickup availability
Trusted By

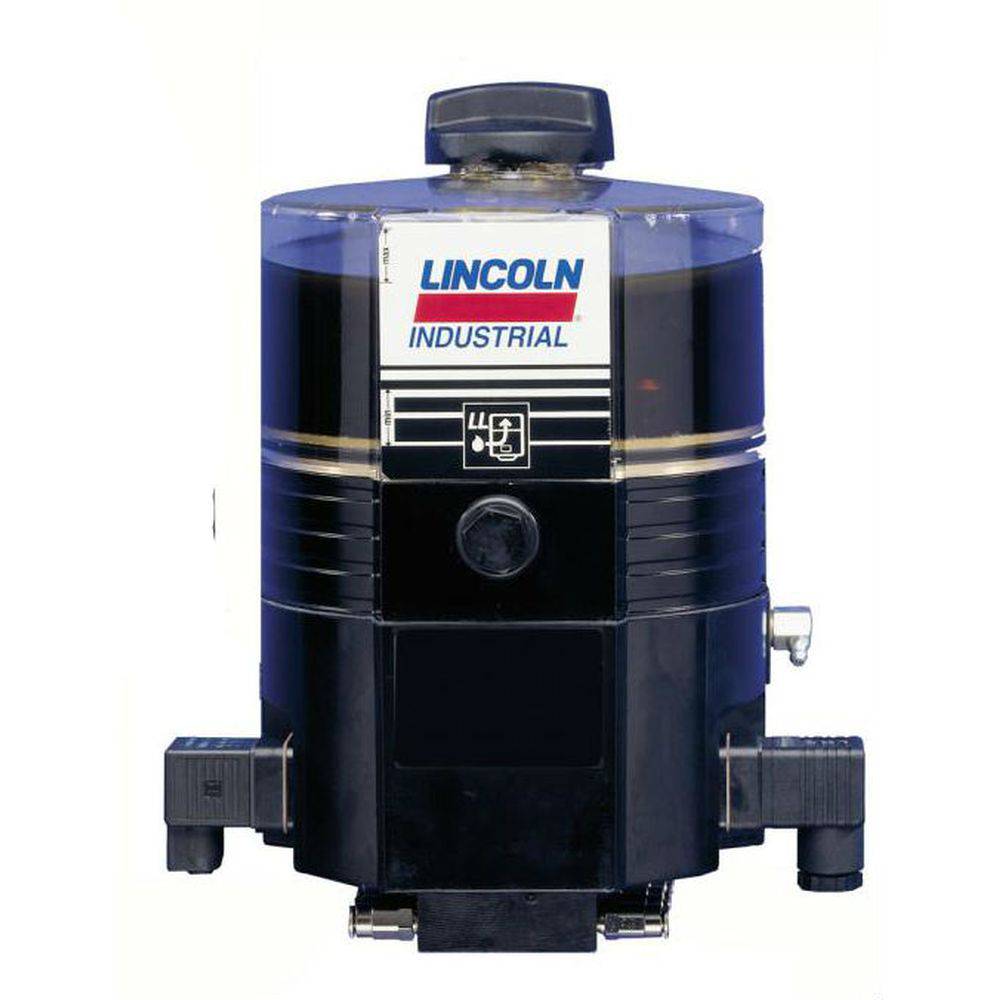

Lincoln® Quicklub QLS 311 For Oil Back Valve Remote Control SSV6 Valve Type
The QLS 301/311 for Remote Control allows customers to be in control of the lubrication process. The 24 VDC models monitor system cycling with a proximity switch. An external timer or PLC controls the interval between lube cycles. The 120 VAC models have no cycle monitoring and are on/off controlled by the user's external timer or PLC. The minimum pause time requirements should be followed when setting up the external controller.
- Compact pre-assembled pump and metering valve work with customer's PLCs, no need for separate controller.
- For oil QLS 311
- Works between -10°F and 158°F allowing operation in many environments
| Model No. | P31131411110 |
| Operating Voltage | - 24 VDC - 120 VAC - 50/60 Hz |
| Operating Current | - 24 VDC/1.0 A - 120 VAC/1.0 A |
| Operating Temperature | - -10°F to 158°F/-25°C to 70°C |
| Number of Outlets | 6, 8, 12 or 18 |
| Reservoir Capacity | 61"/1.0L |
| Protection | NEMA 4 |
| Minimum Pause Time | 4 min. DC models/20 min. AC models |
| Maximum Operating Time | 25 min. DC models/15 min. AC models |
| Timer Memory | Indefinite |
| Maximum Operating Pressure | - Grease: 3000 psi/205 bar - Oil: 1160 psi/80 bar |
| Output per Outlet & Cycle | approx. 0.012"/approx. 0.2 cm. |
| Lubricant | up to NLGI 2 grease or oil with at least 40cSt. |
| Weight | 12.5 lbs./5.7 kg. |
