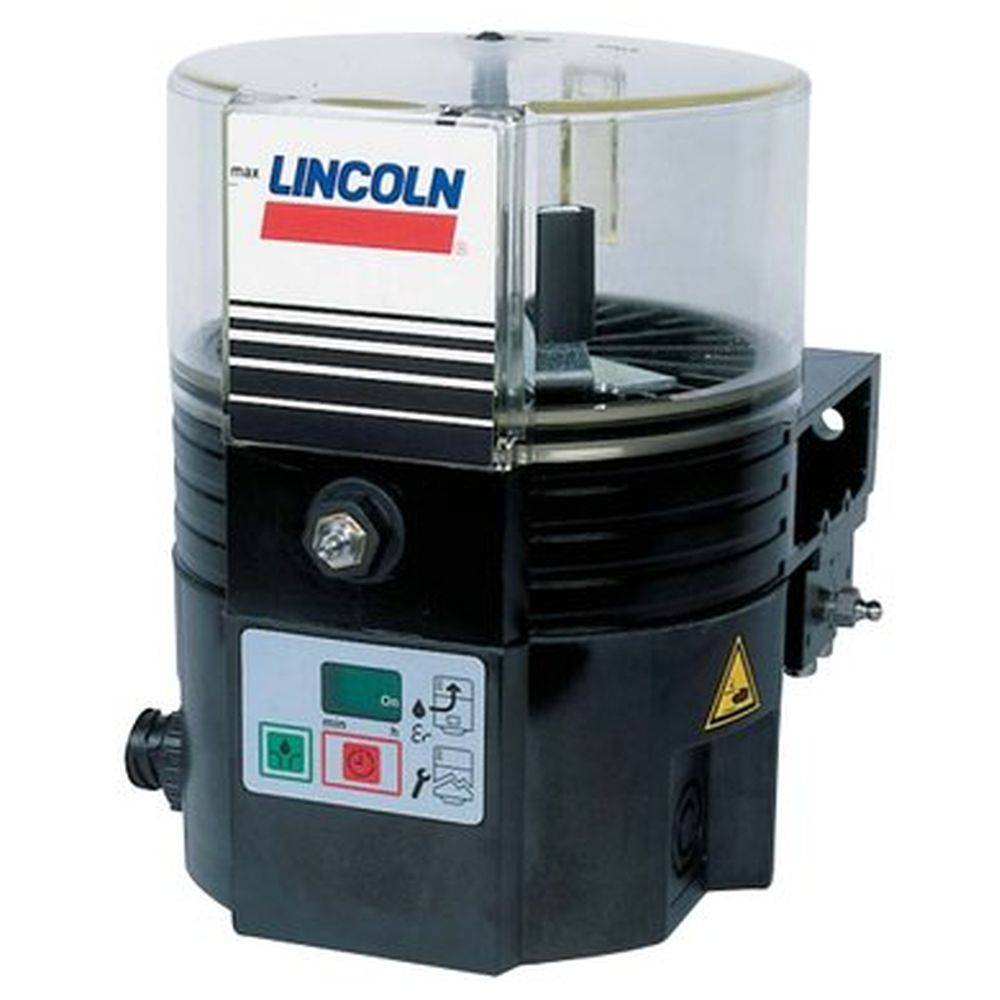

Lincoln Quicklub QLS 401 Electric Grease Pump
The QLS 401 features a newly enhanced stirring paddle in the reservoir to prevent grease separation - even with long refill intervals. All components including an internal pressure relief valve are part of the complete package. Standard features include a built-in controller with LED display and keypad for easy programming and monitoring, and a divider block with 6, 8, 12, or 18 outlets. The integrated, all-in-one system concept reduces installation time and costs. The 12 and 24 VDC models are available with bayonet, quarter-turn type plugs for improved protection in mobile applications (optional low-level control).
|Operating Voltage||- 12 and 24 VDC
- 120 and 230 VAC
- 50/60 Hz
|Operating Current||- 12 VDC/2.0 A
- 24 VDC/1.0 A
- 120 VAC/1.0 A
- 230 VAC/0.5 A
|Operating Temperature||-13°F to 158°F/-25°C to 70°C|
|Number of Outlets||6, 8, 12 or 18|
|Lubrication Cycle Time||- AC: 20 min. to 60 hours
- DC: 4 min. to 6 hours
|Number of Cycles||- For VDC: 1 to 5 cycles
- For VAC - SSV6/SSV8: 1 to 3 cycles
- For SSV12/SSV18: 1 cycle
|Maximum Operating Pressure||3000 psi/205 bar|
|Output per Outlet & Cycle||approx. 0.012"/approx. 0.2 cm.|
|Lubricant||NLGI 2 grease|
|Weight||12.5 lbs./5.7 kg.|
