Quicklub QLS 401 Electric Grease Pump

on-backorder
SKU: P40162801114
Regular price $1,241.48

Voltage
Trusted By

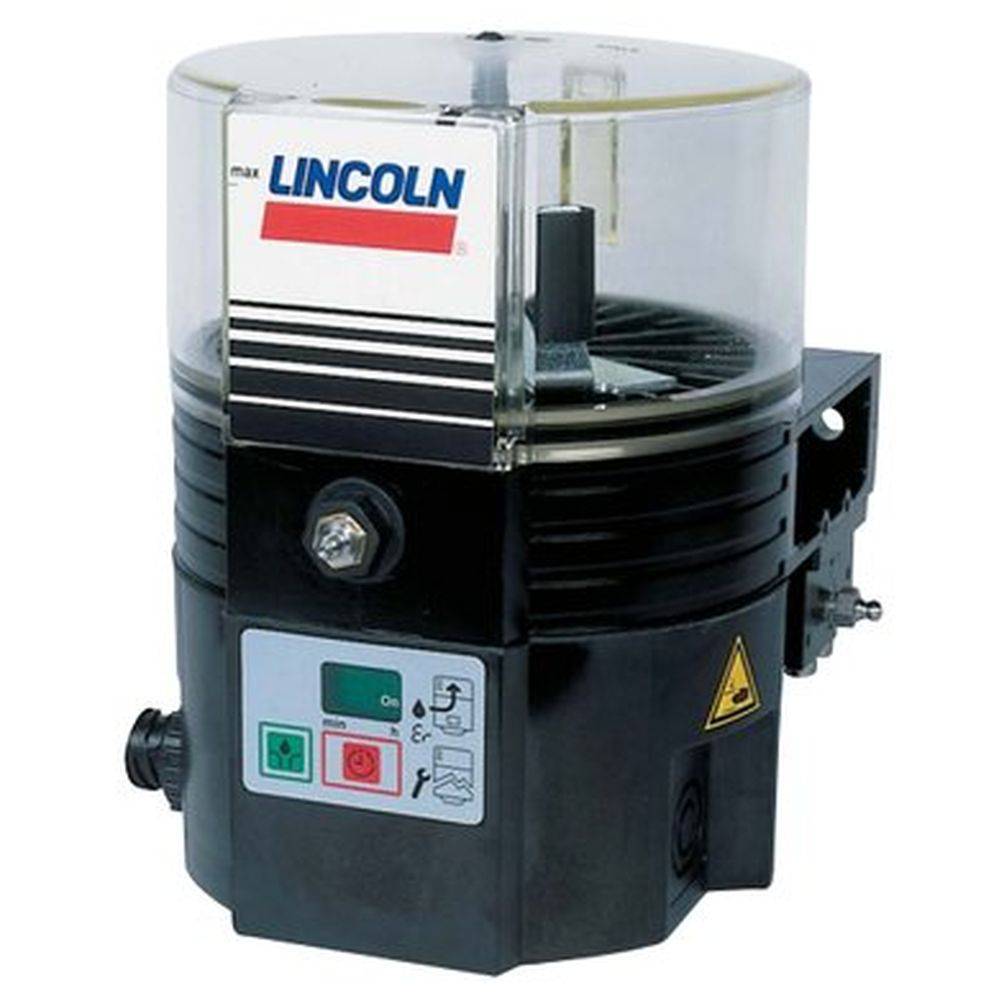

Lincoln Quicklub QLS 401 Electric Grease Pump

The QLS 401 features a newly enhanced stirring paddle in the reservoir to prevent grease separation - even with long refill intervals. All components including an internal pressure relief valve are part of the complete package. Standard features include a built in controller with LED display and keypad for easy programming and monitoring, and a divider block with 6, 8, 12 or 18 outlets. The integrated, all-in-one system concept reduces, installation time and costs. The 12 and 24 VDC models are available with bayonet, quarter-turn type plugs for improved protection in mobile applications (optional low-level control).

Model No. P40162601114
Operating Voltage - 12 and 24 VDC
- 120 and 230 VAC
- 50/60 Hz
Operating Temperature  -13° to 158°F/-25°C to 70°C
Number of Outlets 6, 8, 12 or 18
Reservoir Capacity 61"/1.0 L/ 2.0 L
Protection NEMA 4
Lubrication Cycle Time - AC: 20 min. to 60 hours
- DC: 4 in. to 6 hours
Number of Cycles  - For VDC: 1 to 5 cycles
- For  VAC - SSV6/SSV8: 1 to 3 cycles
- For SSV12/SSV18: 1 cycle
Timer Memory  Indefinite
Maximum Operating Pressure 3000 psi/205 bar
Output Per Outlet & Cycle  approx. 0.012"/approx. 0.2 cm
Lubricant    NLGI 2 grease
Weight  12.5 lbs./5.7 kg
