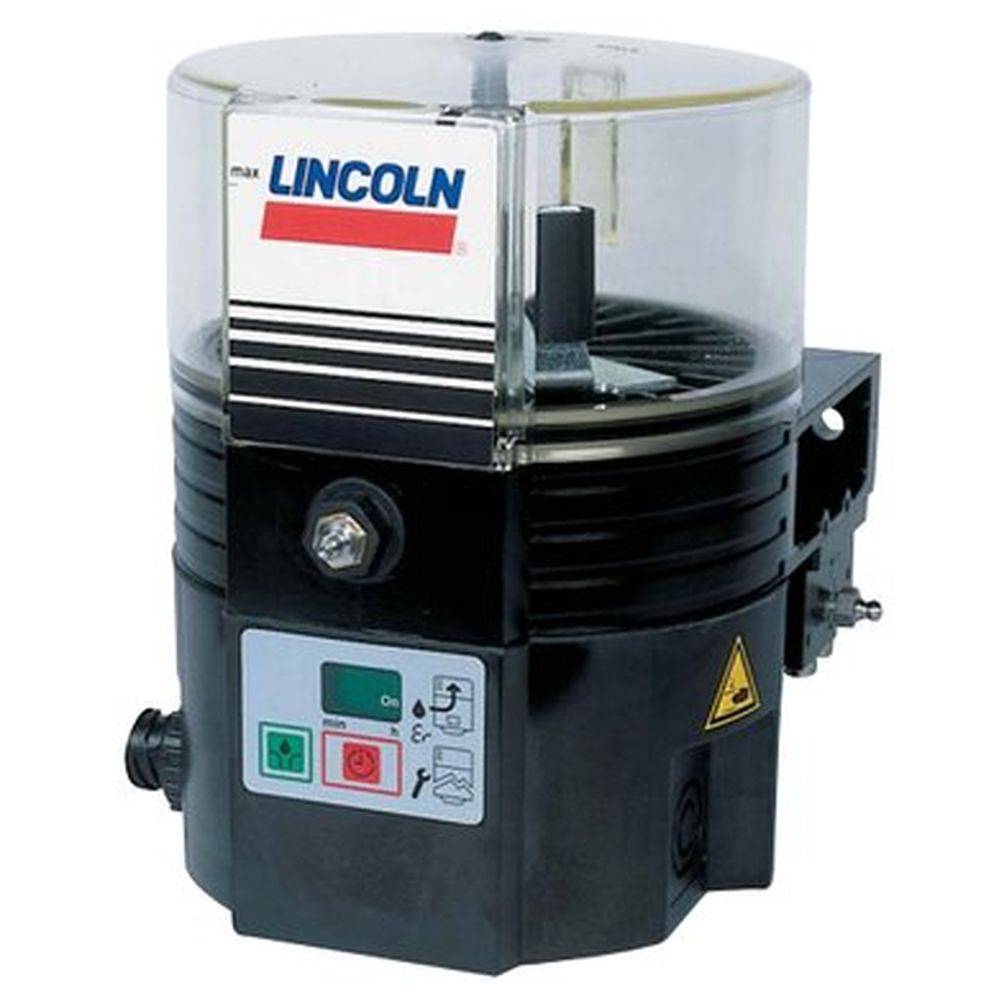

The QLS 401 features a newly enhanced stirring paddle in the reservoir to prevent grease separation - even with long refill intervals. All components including an internal pressure relief valve are part of the complete package. Standard features include a built-in controller with LED display and keypad for easy programming and monitoring, and a divider block with 6, 8, 12 or 18 outlets. The integrated, all-in-one system concept reduces installation time and costs. The 12 and 24 VDC models are available with bayonet, quarter-turn type plugs for improved protection in mobile applications (optional low-level control).
- 12 and 24 VDC - 120 and 230 VAC - 50/60 Hz
- 12 VDC/2.0 A - 24 VDC/1.0 A - 120 VAC/1.0 A - 230 VAC/0.5 A
-13° to 158°F/-25°C to 70°C
Number of Outlets
6, 8, 12 or 18
61"/1.0 L/2.0 L
Lubrication Cycle Time
- AC: 20 min. to 60 hours - DC: 4 min. to 6 hours
Number of Cycles
- For VDC: 1 to 5 cycles - For VAC - SSV6/SSV8: 1 to 3 cycles - For SSV12/SSV18: 1 cycle
Maximum Operating Pressure
3000 psi/205 bar
Output per Outlet & Cycle
approx. 0.012"/approx. 0.2 cm.
NLGI 2 grease
12.5 lbs./5.7 kg.
