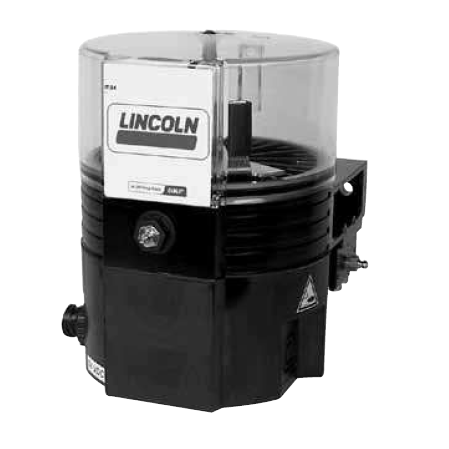

Lincoln Quicklub QLS 401 Electric Grease Pump - Remote Control
The QLS 402 for Remote Control allows customers to be in control of the lubrication process. The 24 VDC models monitor system cycling with a proximity switch. An external timer or PLC controls the interval between lube cycles. The 120 VAC models have no cycle monitoring and are on/off controlled by the user's external timer or PLC. The minimum pause time requirements should be followed when setting up the external controller. (Optional low-level control).
- 24 VDC - 120 VAC - 50/60 Hz
- 24 VDC/1.0 A - 120 VAC/1.0 A
-10°F to 158°F/-25°C to 70°C
Number of Outlets
6, 8, 12 or 18
Minimum Pause Time
4 min. DC models/20 min. AC models
Maximum Operating Time
25 min. DC models/15 min. AC models
Maximum Operating Pressure
3000 psi/205 bar
Output per Outlet & Cycle
approx. 0.012"/approx. 0.12 cm.
up to NLGI 2 grease
12.5 lbs./5.7 kg.
