Quicklub QLS 401 Electric Grease Pump - Remote Control

In stock
SKU: P40191401110
Regular price $1,544.82
Est. Ship Date: Thursday, October 10th
Reliability Over 50 years in the industry, demonstrating reliability.
Serving customers Serving customers across all 50 states.
Heavy-duty Products designed for heavy-duty use.
Return Policy 30 Days Return Policy*
Trusted By

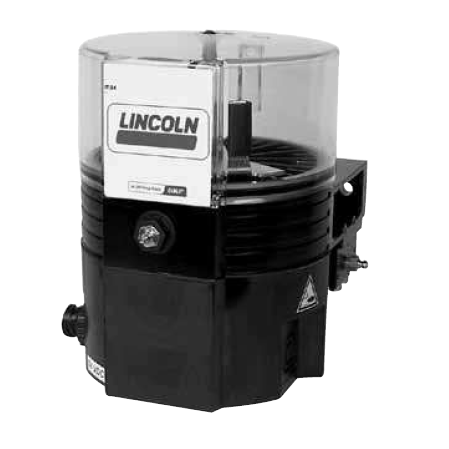

Lincoln Quicklub QLS 401 Electric Grease Pump - Remote Control

The QLS 401 for Remote Control allows customers to be in control of the lubrication process. The 24 VDC models monitor system cycling with a proximity switch. An external timer or PLC controls the interval between lube cycles. The 120 VAC models have no cycle monitoring and are on/off controlled by the user's external timer or PLC. The minimum pause time requirements should be followed when setting up the external controller. (Optional low-level control).



Model No. P40191401110
Operating Voltage  - 24 VDC
- 120 VAC
- 50/60 Hz
Operating Current - 24 VDC/1.0 A
- 120 VAC/1.0 A
Operating Temperature  -10°F to 158°F/-25°C to 70°C
Number of Outlets 6, 8, 12 or 18
Reservoir Capacity  61"/1.0 L
Protection  NEMA 4
Minimum Pause Time  4 min. DC models/20 min. AC models
Maximum Operating Time  25 min. DC models/15 min. AC models
Timer Memory  Indefinite
Maximum Operating Pressure  3000 psi/205 bar
Output per Outlet & Cycle  approx. 0.0162"/approx. 0.2 cm.
Lubricant  up to NLGI 2 grease
Weight  12.5 lbs./5.7 kg.
