Product Overview

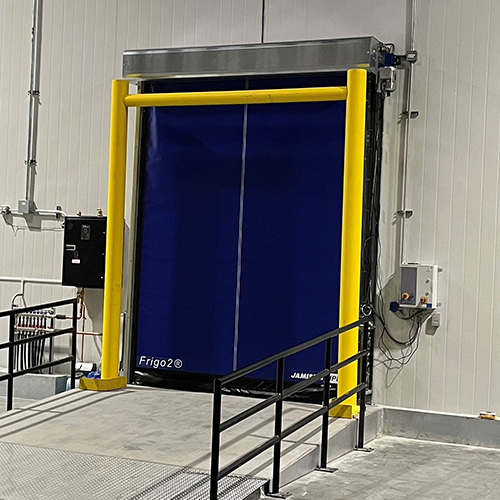

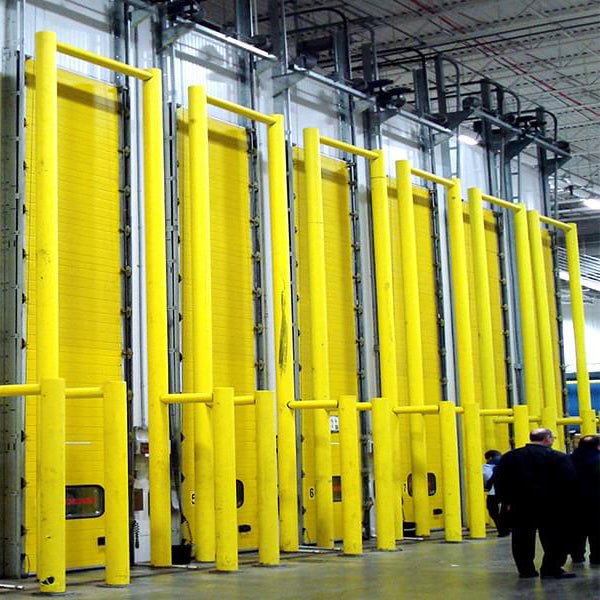

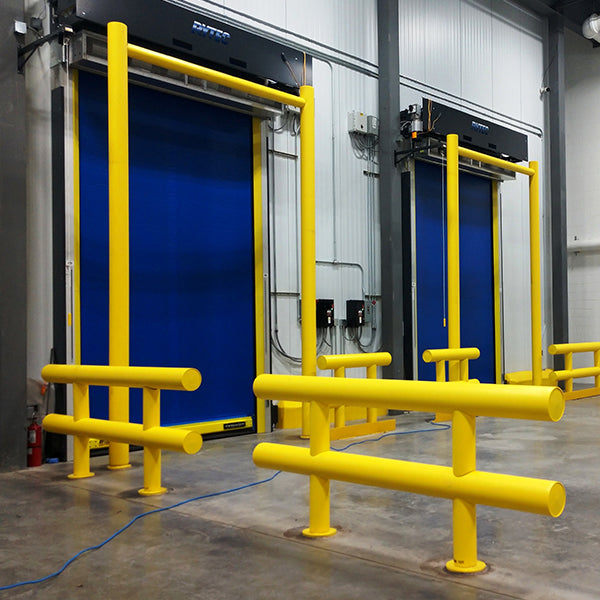

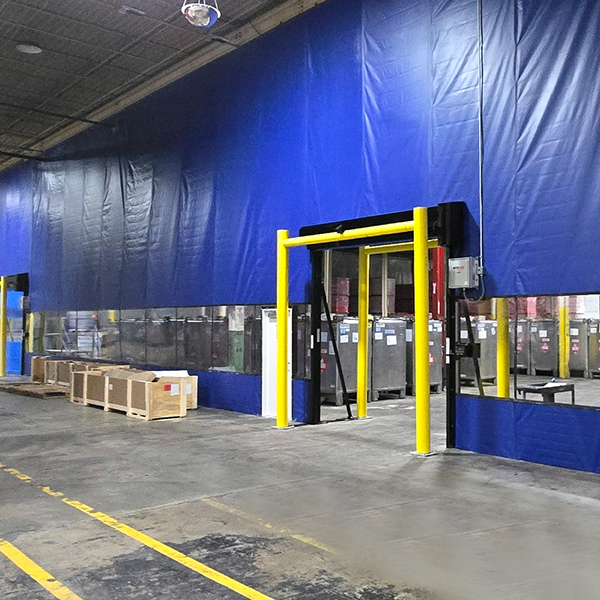

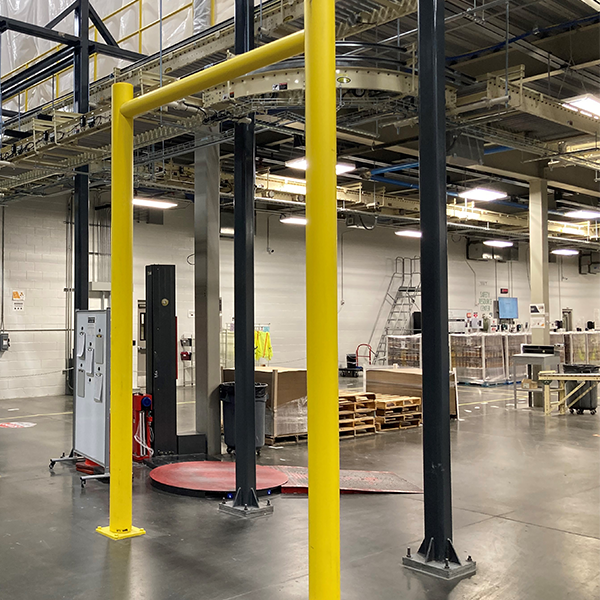

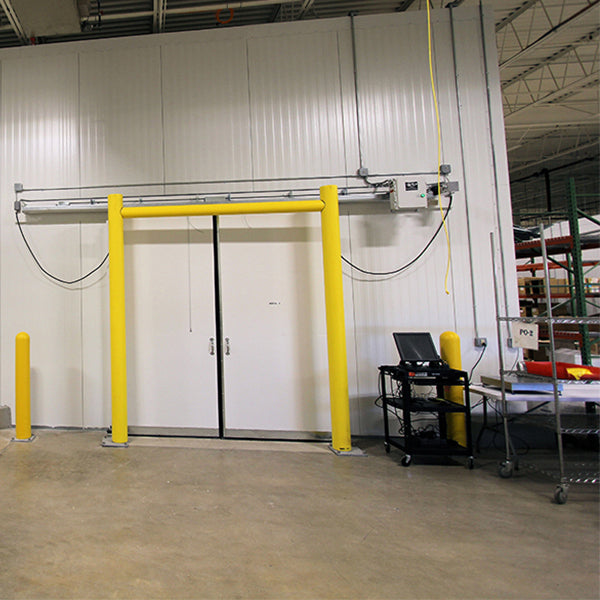

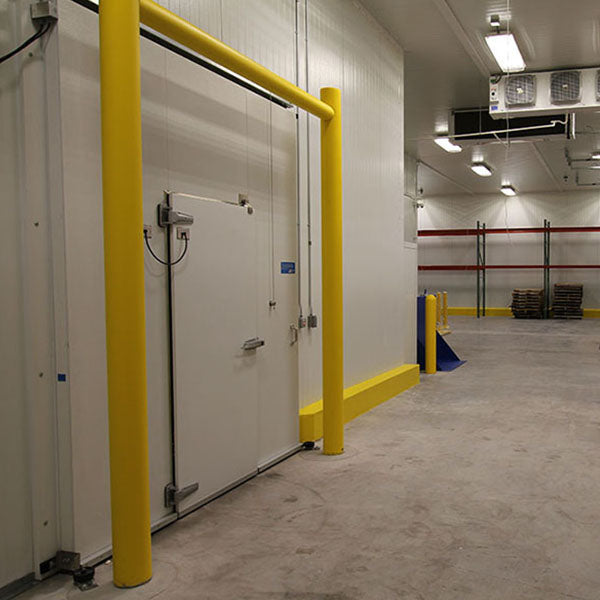

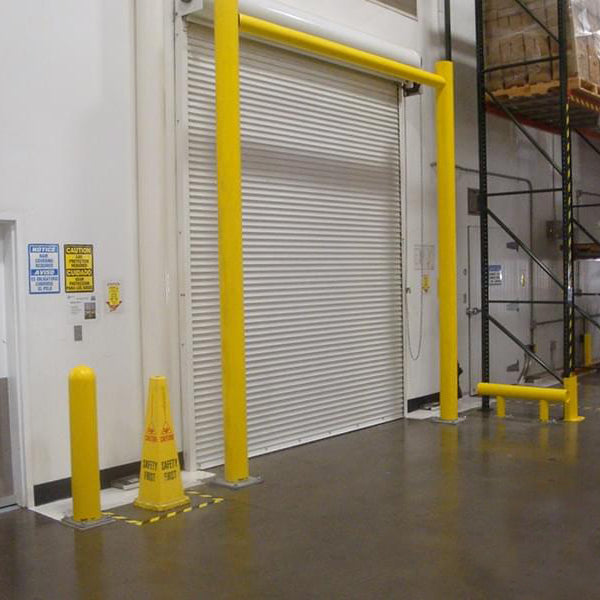

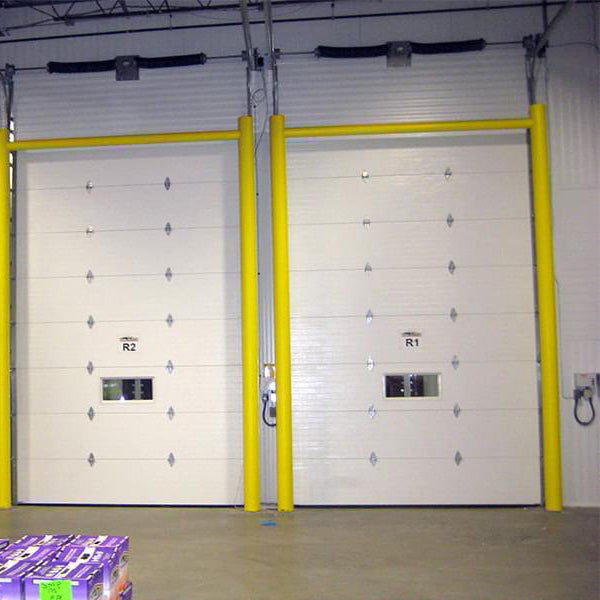

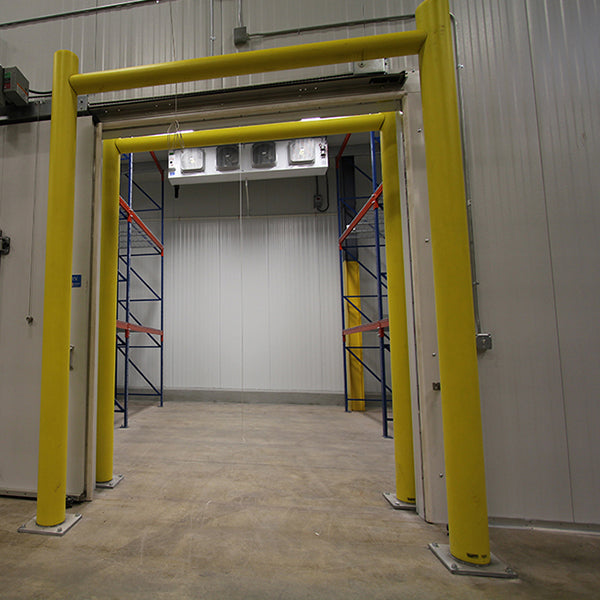

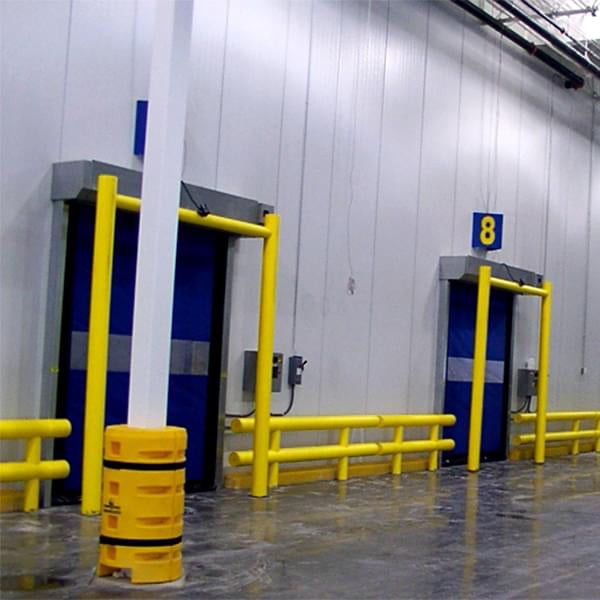

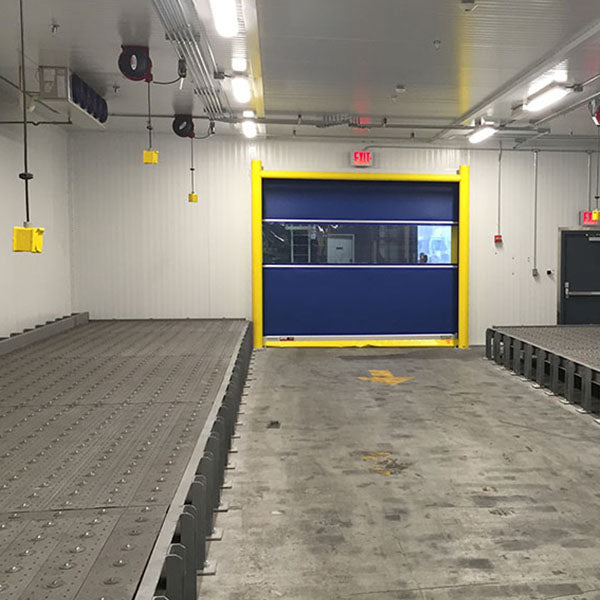

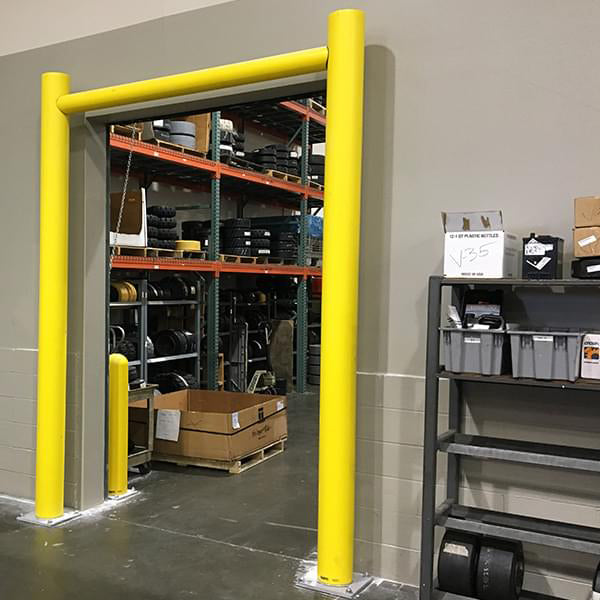

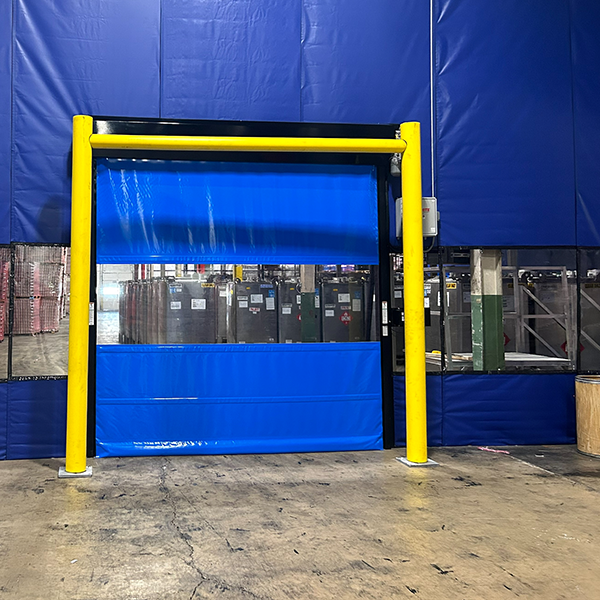

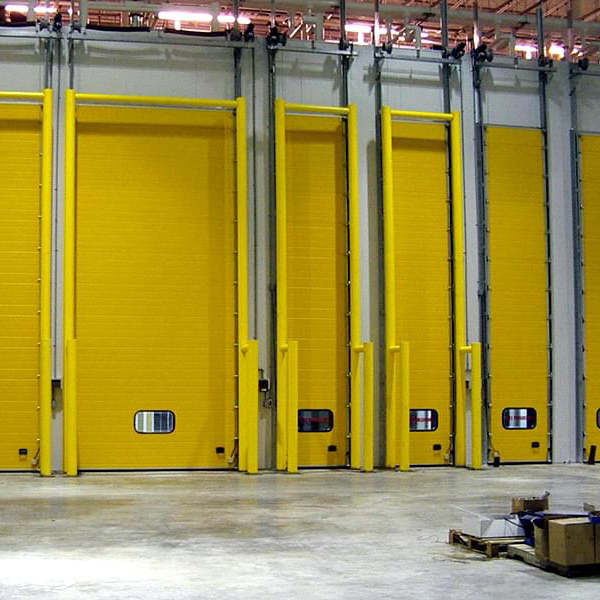

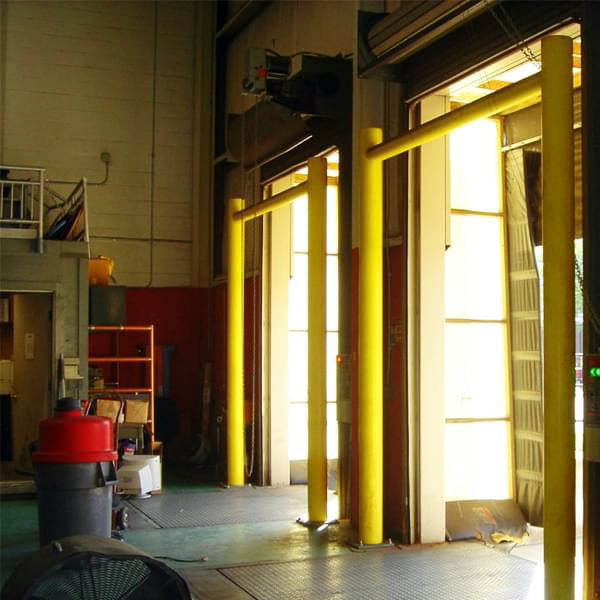

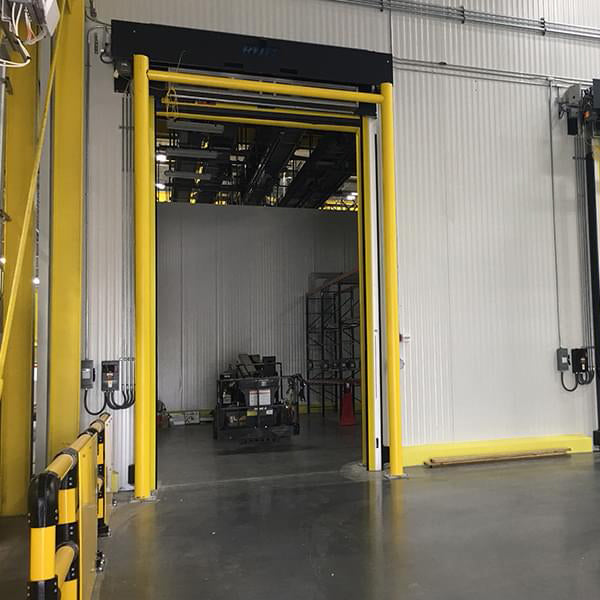

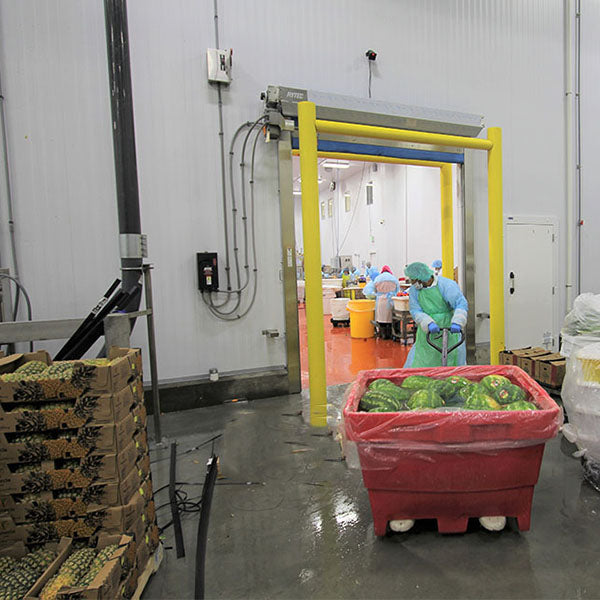

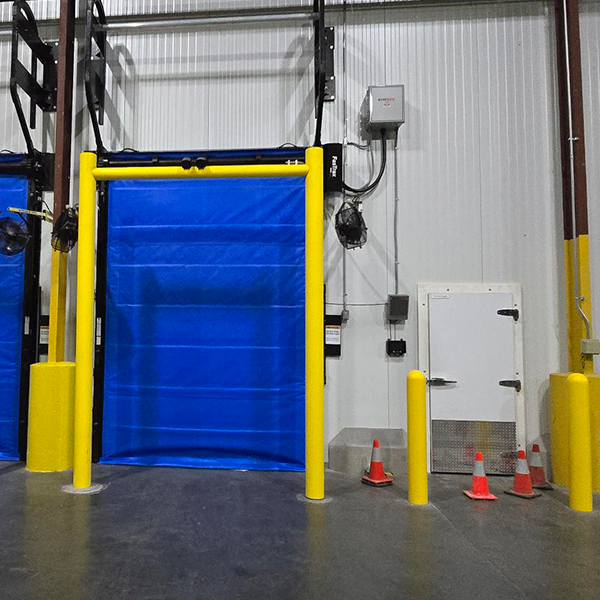

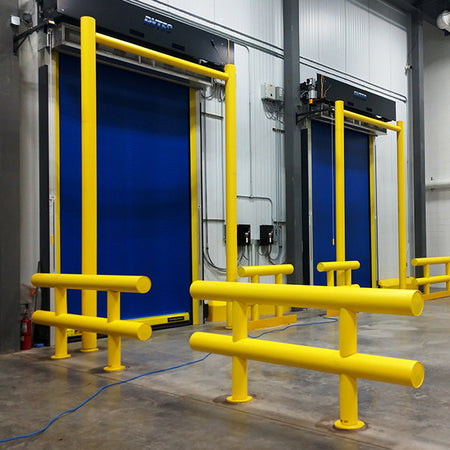

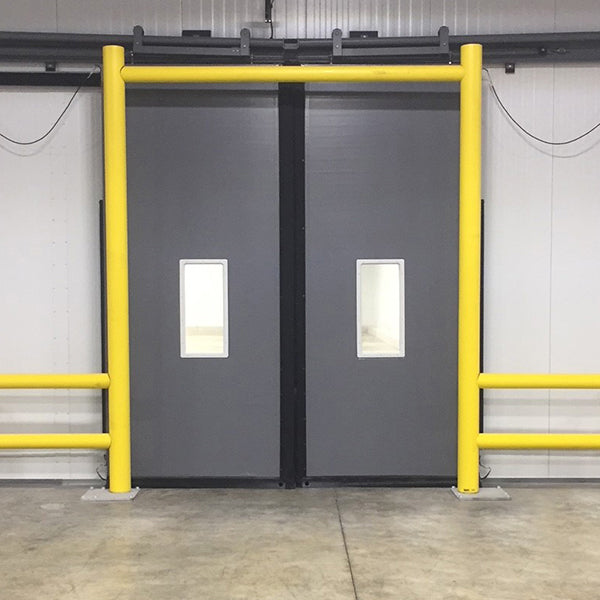

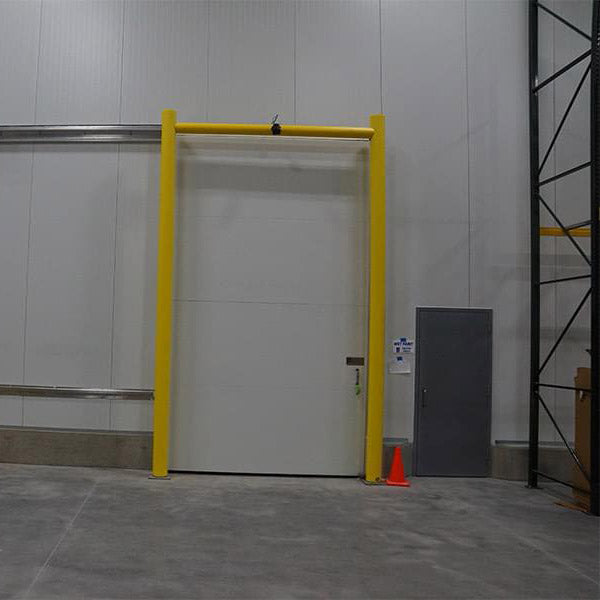

The Goal Post System is a vertical guardrail system designed to protect your overhead doors, high-speed dock doors, and door tracks, from excessive damage and expensive repairs.
Our Goal Post System, made of 6" steel posts and 4" schedule 40 steel pipe crossbar, and arrives in three sections for quick installation. No welding, sanding, or painting required. Just slot together and draw out the set bolts, hoist, and set in place.
Need custom configurations? No problem. Our team can custom design your Goal Posts to fit your exact protection needs.
Review the Product Details and Available SKU Options below to match the correct SKU to the required size, material, color, and configuration before ordering.
Key Features
- Pipe post: 6" diameter, schedule 40 pipe sleeved in HDPE plastic.
- Pipe rails: 4" schedule 40 pipe sleeved in HDPE plastic.
- Standard Heights: 8', 10', 12', 14', 16'.
- Standard Widths: 8', 10', 12', 14', 16'.
- Install:.
- Standard Base Plate: 12"x 12"x 3/4".

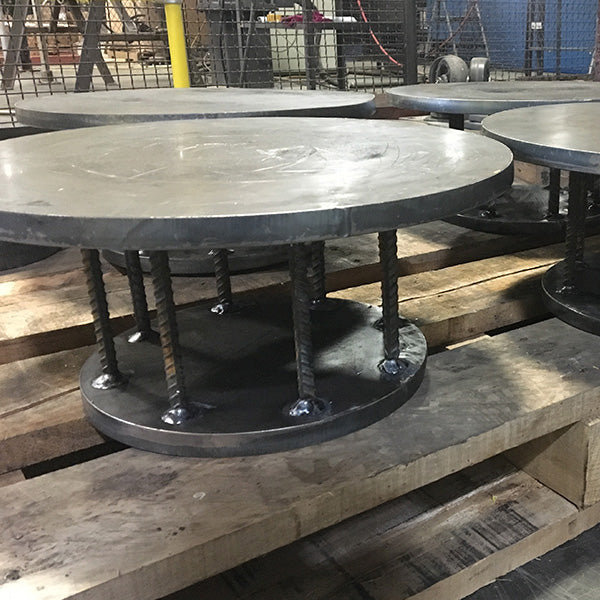

- Core-In: recommended at least 24" deep, 7" round steel floor sleeve available.
Ideal For
Choose this product if you need:
- Protecting doors, columns, equipment, racks, or pedestrian zones.
- Warehouses and industrial facilities with forklift traffic.
- Creating visible protection around high-risk areas.
Not Ideal For
Not ideal for certified crash-rated perimeter security. Use a crash-rated bollard when vehicle impact certification is required.
Product Details
Review the shared product details first, then use the SKU options table to match the correct model to the size, color, mounting style, or configuration you need.
Shared Product Details
| Brand | S4 Bollards |
| Product Type | Guard Rail / Barrier |
| Pipe post | 6" diameter, schedule 40 pipe sleeved in HDPE plastic |
| Pipe rails | 4" schedule 40 pipe sleeved in HDPE plastic |
| Standard Heights | 8', 10', 12', 14', 16' |
| Standard Widths | 8', 10', 12', 14', 16' |
| Standard Base Plate | 12"x 12"x 3/4" |
| Core-In | recommended at least 24" deep, 7" round steel floor sleeve available |
Available SKU Options
| SKU | Configuration Details |
| GP-YL-096W-096H-C-24 |
Installation: Core Size: 96" x 96" |
| GP-YL-096W-120H-C-24 |
Installation: Core Size: 96" x 120" |
| GP-YL-120W-120H-C-24 |
Installation: Core Size: 120" x 120" |
| GP-YL-120W-144H-C-24 |
Installation: Core Size: 120" x 144" |
| GP-YL-144W-144H-C-24 |
Installation: Core Size: 144" x 144" |
| GP-YL-144W-168H-C-24 |
Installation: Core Size: 144" x 168" |
| GP-YL-168W-168H-C-24 |
Installation: Core Size: 168" x 168" |
| GP-YL-168W-192H-C-24 |
Installation: Core Size: 168" x 192" |
| GP-YL-096W-096H-P |
Installation: Plate Size: 96" x 96" |
| GP-YL-096W-120H-P |
Installation: Plate Size: 96" x 120" |
| GP-YL-120W-120H-P |
Installation: Plate Size: 120" x 120" |
| GP-YL-120W-144H-P |
Installation: Plate Size: 120" x 144" |
| GP-YL-144W-144H-P |
Installation: Plate Size: 144" x 144" |
| GP-YL-144W-168H-P |
Installation: Plate Size: 144" x 168" |
| GP-YL-168W-168H-P |
Installation: Plate Size: 168" x 168" |
| GP-YL-168W-192H-P |
Installation: Plate Size: 168" x 192" |
Frequently Asked Questions
What is this guard rail used for?
This guard rail is used for guard rail / barrier applications where the listed size, material, and installation style match the site requirements.
How do I choose the right option?
Compare the SKU options, dimensions, mounting method, color, and product details shown above before selecting an option.
What should I check before ordering?
Verify measurements, surface conditions, installation requirements, and whether hardware or professional installation is needed for the application.
