Heavy Duty Guardrail - Base Plate
Unmatched Strength and Durability

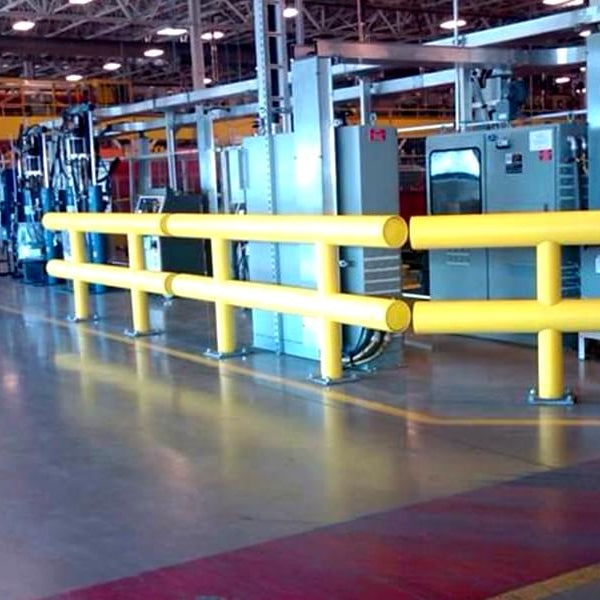

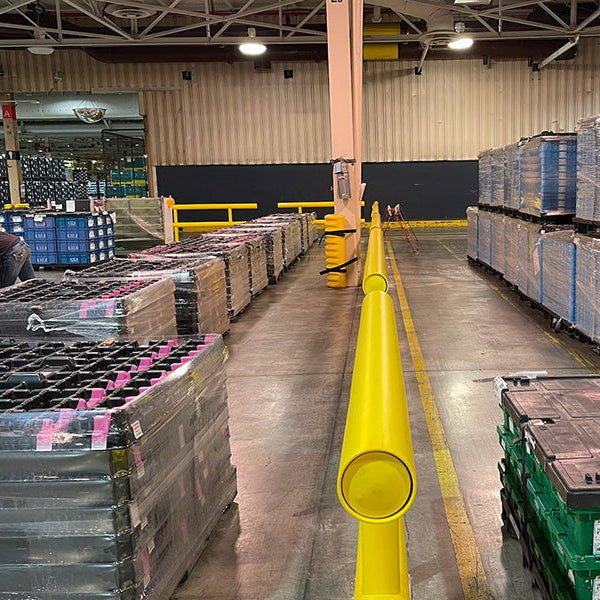

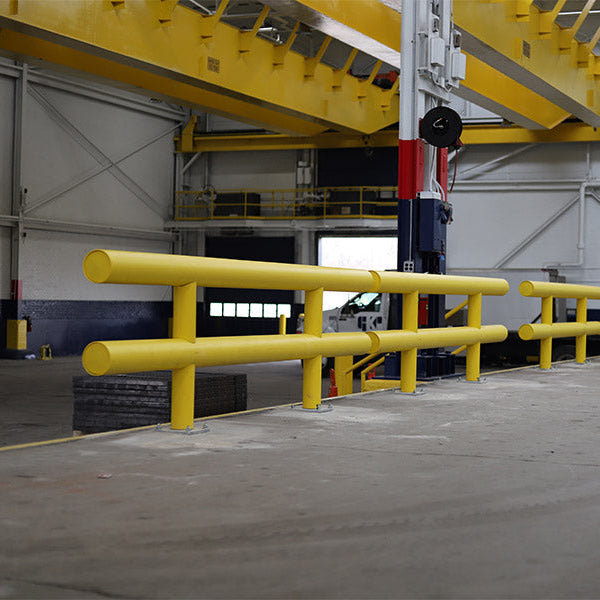

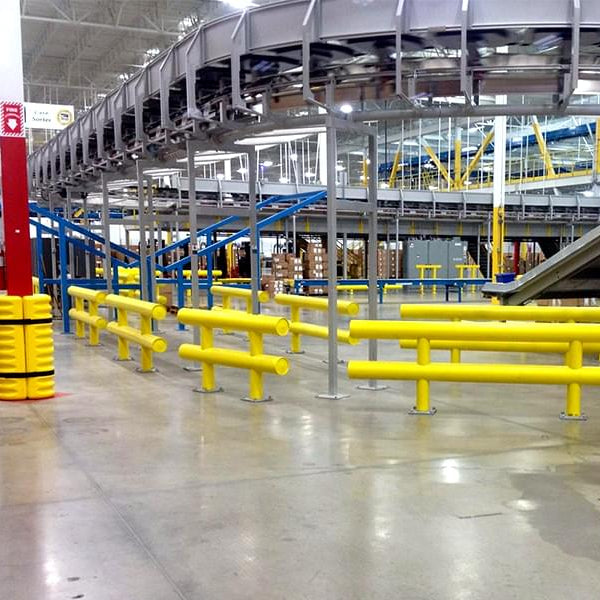

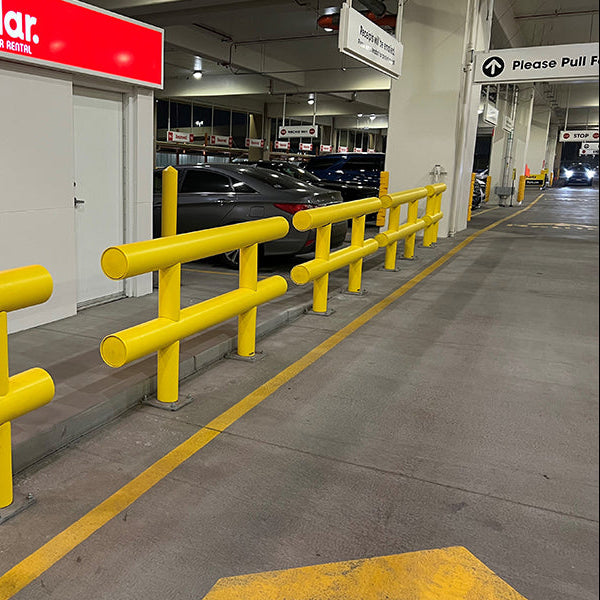

Heavy-Duty Guardrail System is the industry's strongest and most reliable industrial guardrail solution for protecting your warehouse and facility's most valuable assets , people, products, and equipment.

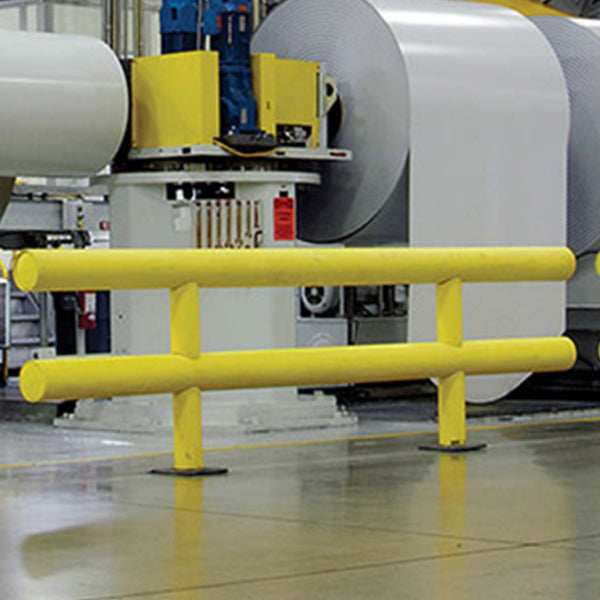

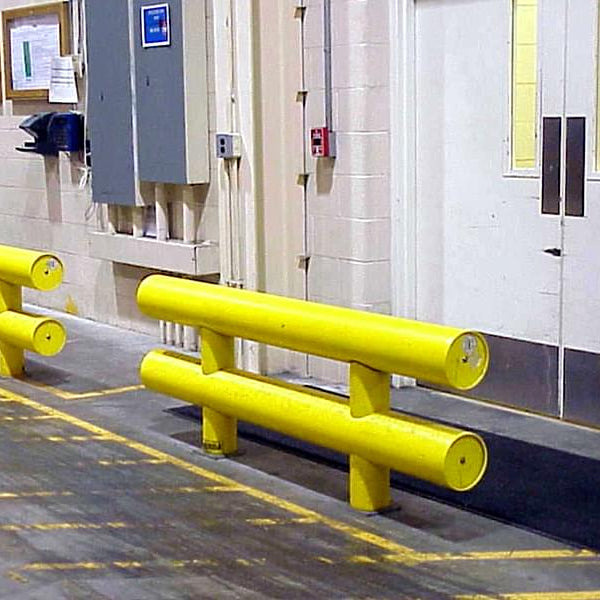

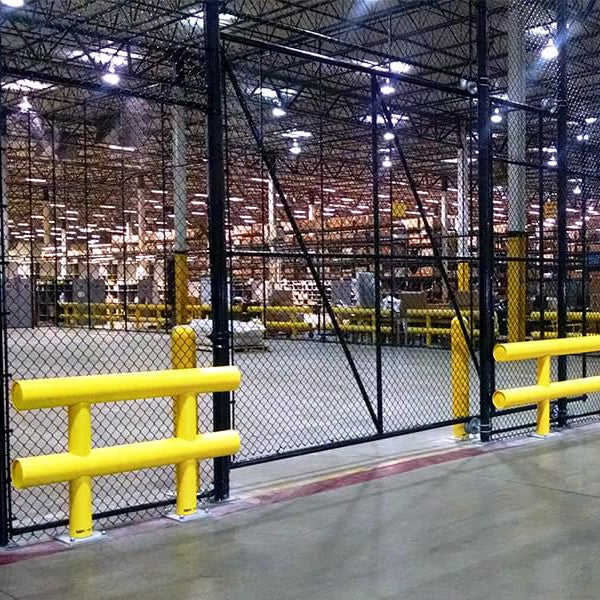

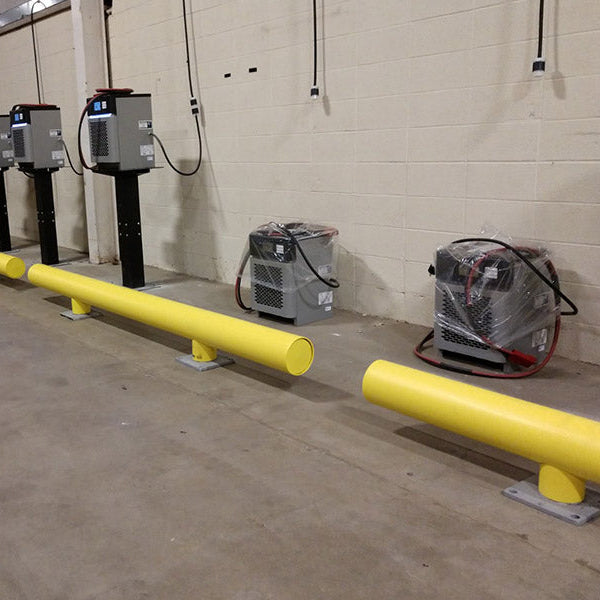

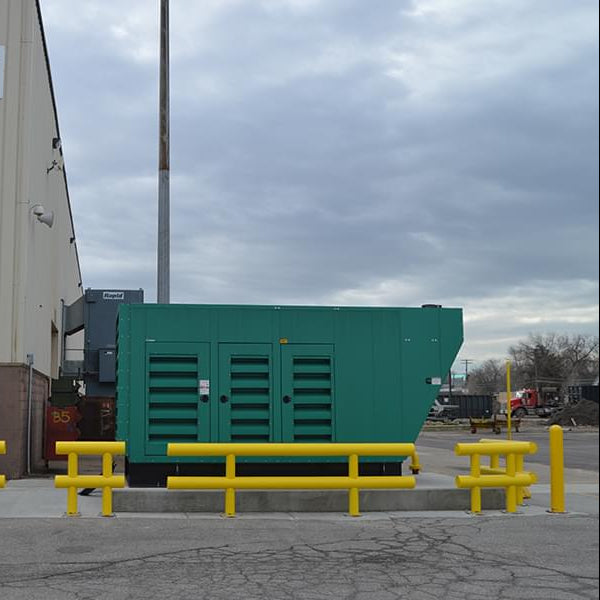

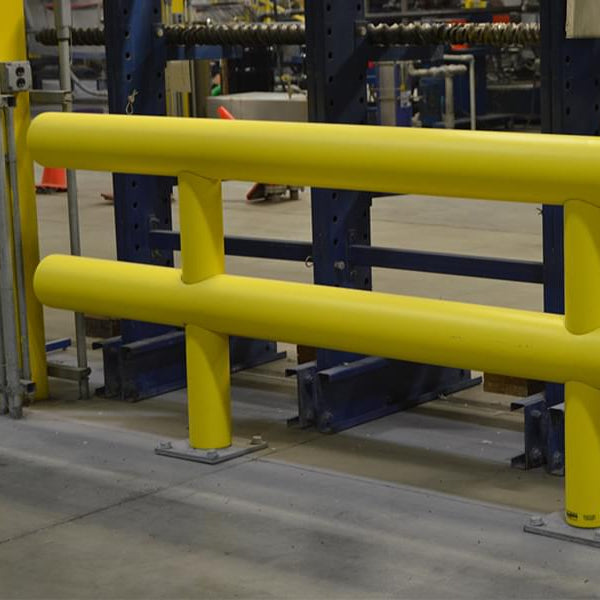

Available in multiple lengths and heights, steel guardrail is sleeved in a durable HDPE plastic and available in both one line and two line options. Thanks to the plastic sleeves, the safety guardrails require virtually no maintenance or painting. This feature means you will be able to save money on both possible accidents and maintenance fees throughout the life of the product.
Unlike traditional-welded or bolt-down systems that require the rail to be replaced after an impact, the unique design is engineer tested to withstand multiple collisions from 12,000 lbs. forklifts traveling 8mph when cored in all high traffic areas.
Upon impact, Heavy-Duty Guardrail distributes the shock throughout the entire section, resulting in minimal deflection to maximize floor space and limit potential damage as much as possible.

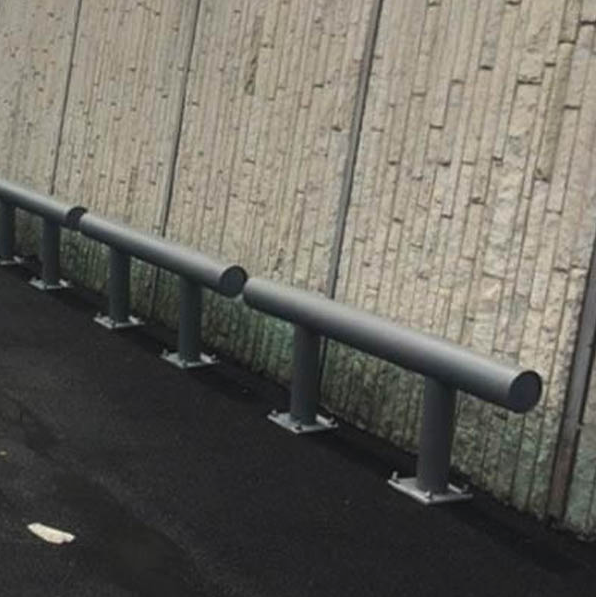

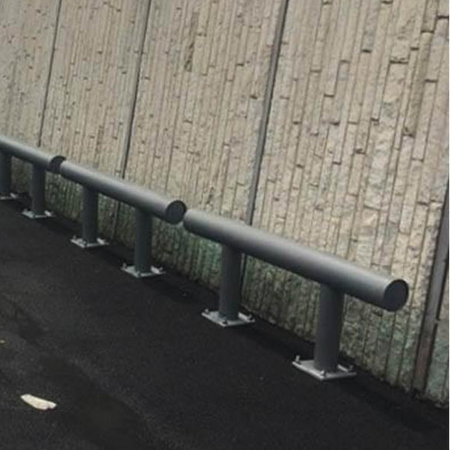

Standard colors include Safety Yellow and Gunmetal Gray. Custom colors available upon request.
- Pipe Post: 4" diameter, schedule 80 pipe
- Pipe Rails: 6" schedule 40 pipe

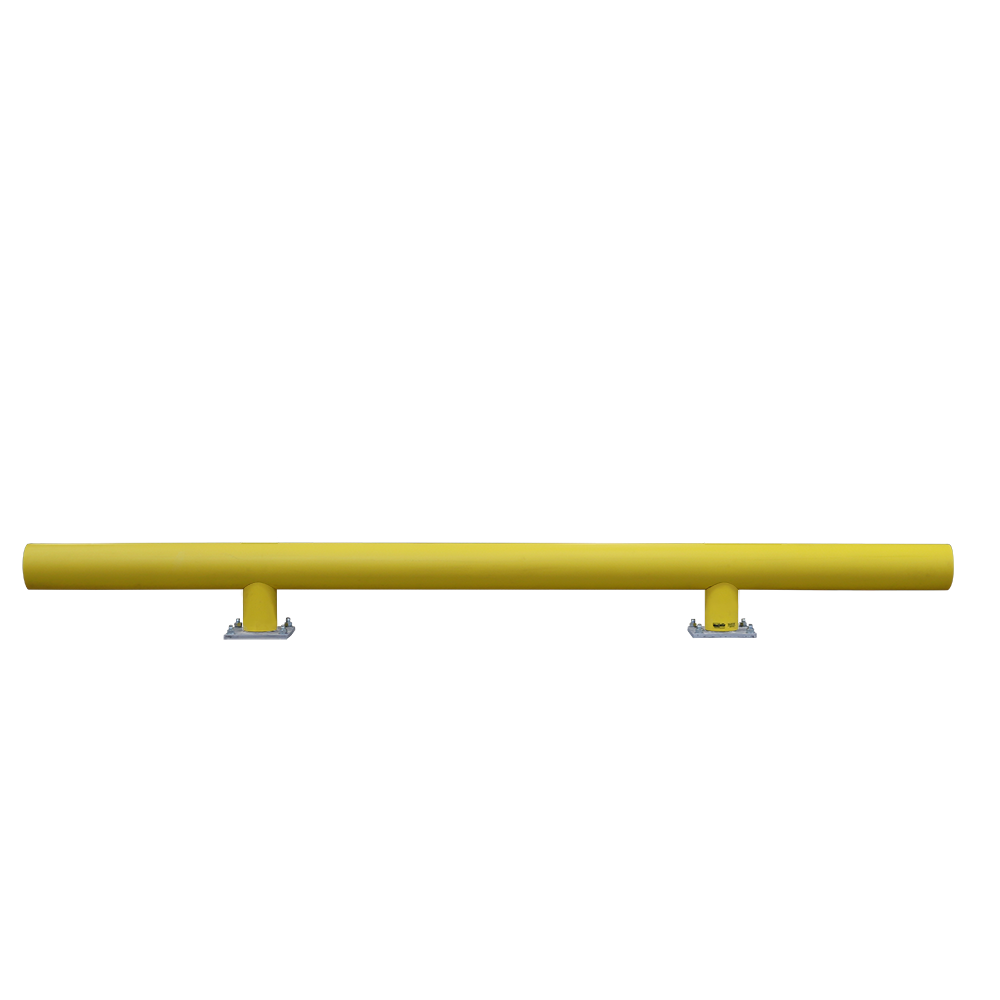

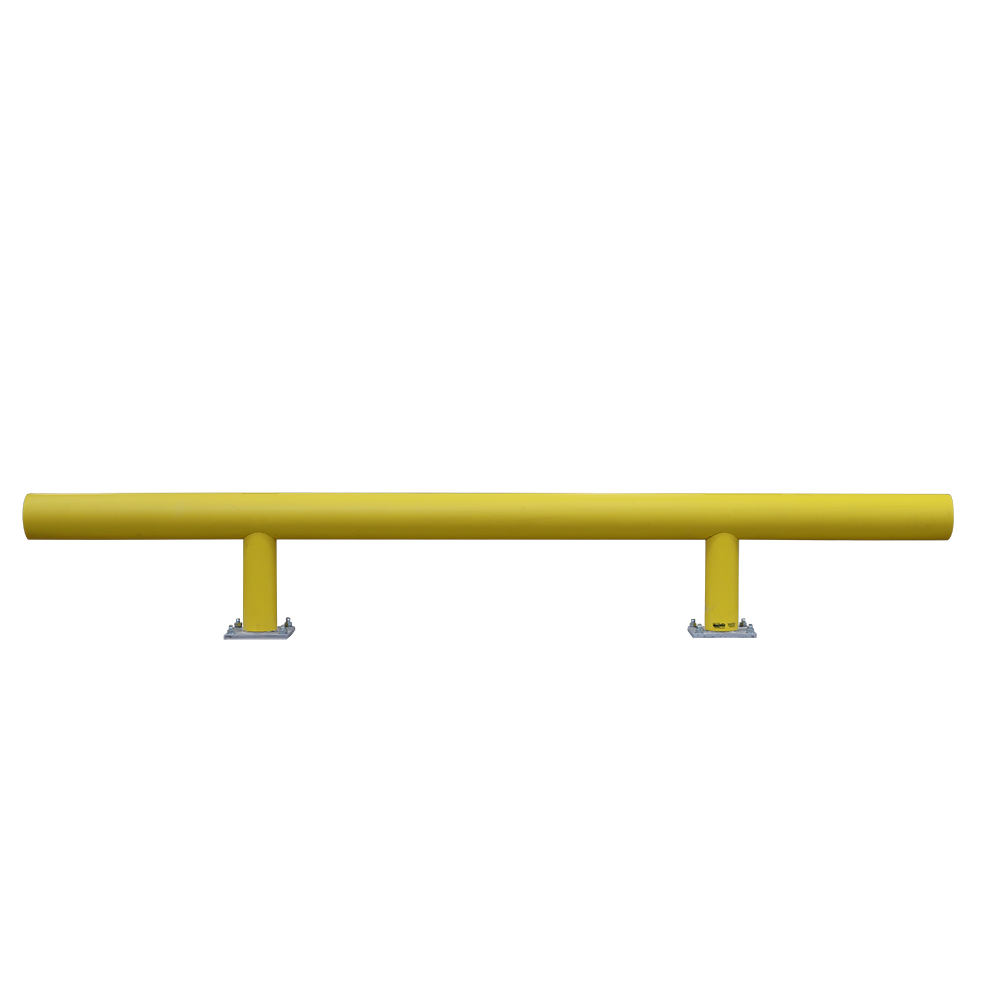

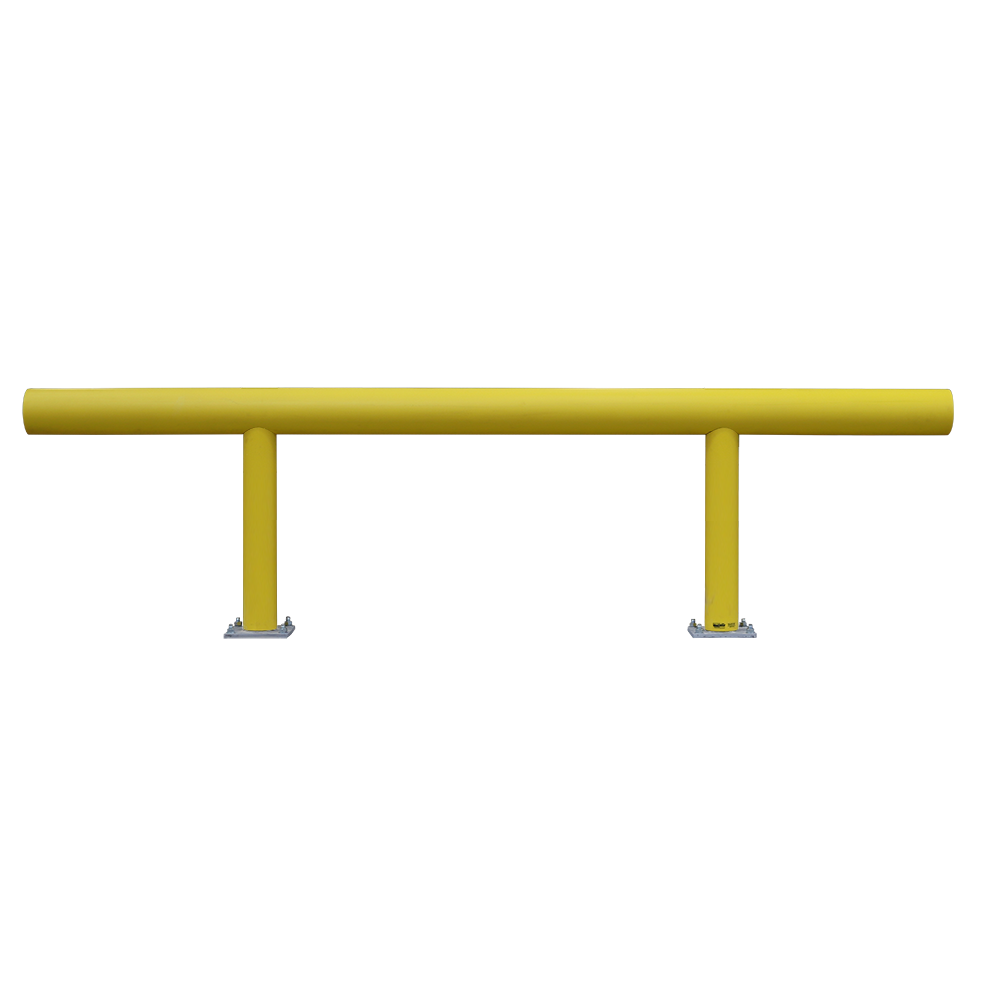

- Heights: 14 3/4" (one-line only), 27", 36" or 42" overall
- Lengths: 48", 72", 96", 120" or 144" overall
- Installation: 5/8"x10"x10" base plate with (4) 15/16" anchor bolt holes
- Installation hardware not included
| Part Number | Length | Height | Weight |
| HGR-1-048-14-P | 48" | 14-3/4" | 181 lbs. |
| HGR-1-048-27-P | 48" | 27" | 211 lbs. |
| HGR-1-048-36-P | 48" | 36" | 233 lbs. |
| HGR-1-048-42-P | 48" | 42" | 248 lbs. |
| HGR-1-072-14-P | 72" | 14-3/4" | 225 lbs. |
| HGR-1-072-27-P | 72" | 27" | 255 lbs. |
| HGR-1-072-36-P | 72" | 36" | 277 lbs. |
| HGR-1-072-42-P | 72" | 42" | 292 lbs. |
| HGR-1-096-14-P | 96" | 14-3/4" | 269 lbs. |
| HGR-1-096-27-P | 96" | 27" | 299 lbs. |
| HGR-1-096-36-P | 96" | 36" | 321 lbs. |
| HGR-1-096-42-P | 96" | 42" | 336 lbs. |
| HGR-1-120-14-P | 120" | 14-3/4" | 313 lbs. |
| HGR-1-120-27-P | 120" | 27" | 343 lbs. |
| HGR-1-120-36-P | 120" | 36" | 365 lbs. |
| HGR-1-120-42-P | 120" | 42" | 380 lbs. |

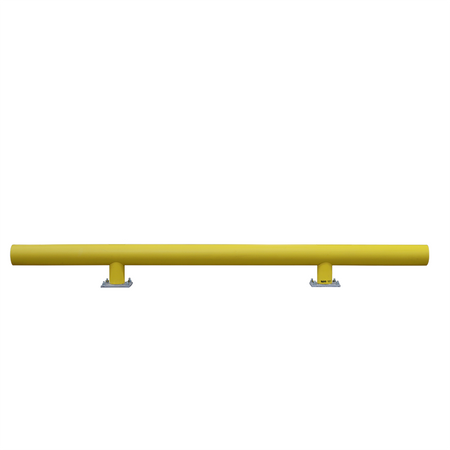

| HGR-1-144-14-P | 144" | 14-3/4" | 366 lbs. |
| HGR-1-144-27-P | 144" | 27" | 387 lbs. |
| HGR-1-144-36-P | 144" | 36" | 409 lbs. |
| HGR-1-144-42-P | 144" | 42" | 424 lbs. |
| HGR-2-048-27-P | 48" | 27" | 299 lbs. |
| HGR-2-048-36-P | 48" | 36" | 321 lbs. |
| HGR-2-048-42-P | 48" | 42" | 336 lbs. |
| HGR-2-072-27-P | 72" | 27" | 387 lbs. |
| HGR-2-072-36-P | 72" | 36" | 409 lbs. |
| HGR-2-072-42-P | 72" | 42" | 424 lbs. |
| HGR-2-096-27-P | 96" | 27" | 475 lbs. |
| HGR-2-096-36-P | 96" | 36" | 497 lbs. |
| HGR-2-096-42-P | 96" | 42" | 512 lbs. |
| HGR-2-120-27-P | 120" | 27" | 563 lbs. |
| HGR-2-120-36-P | 120" | 36" | 585 lbs. |
| HGR-2-120-42-P | 120" | 42" | 600 lbs. |

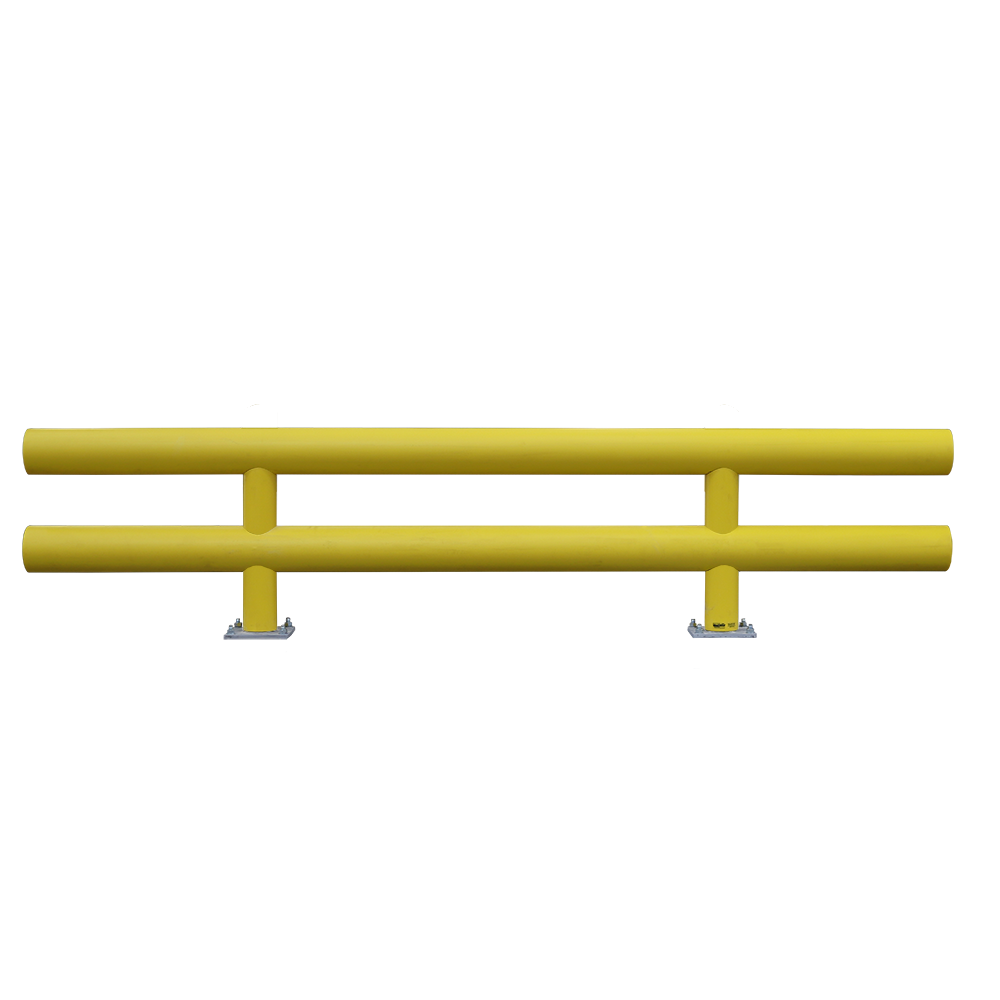

| HGR-2-144-27-P | 144" | 27" | 651 lbs. |

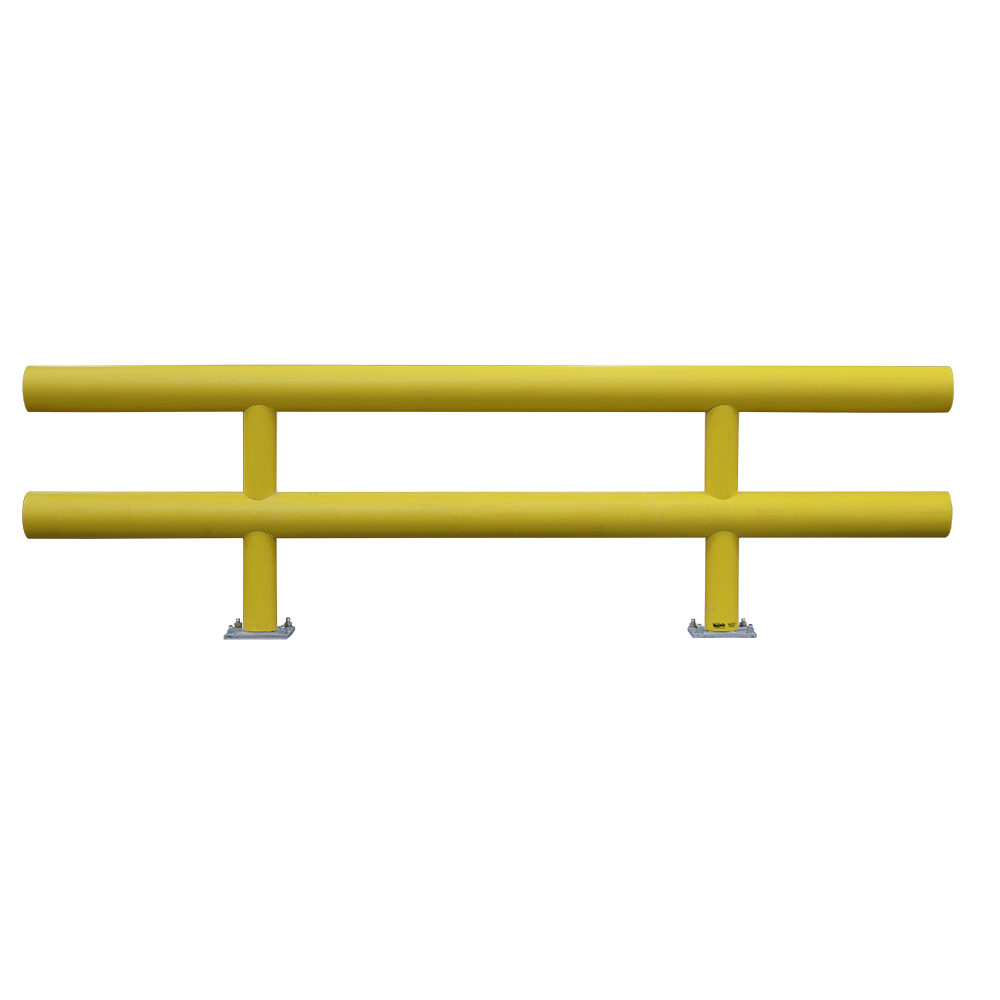

| HGR-2-144-36-P | 144" | 36" | 673 lbs. |

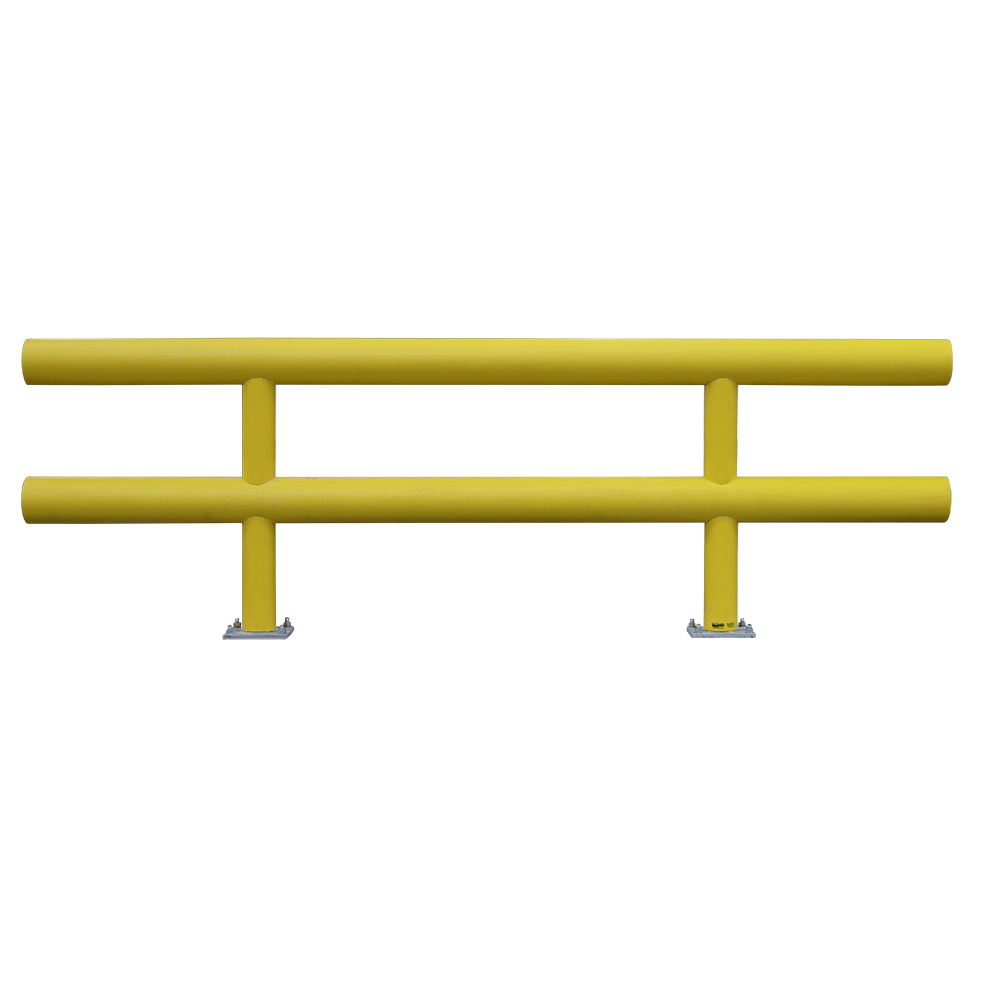

| HGR-2-144-42-P | 144" | 42" | 688 lbs. |
