Steel Dock Board without Dockside Bend (20,000 lbs. Capacity)
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Product Overview

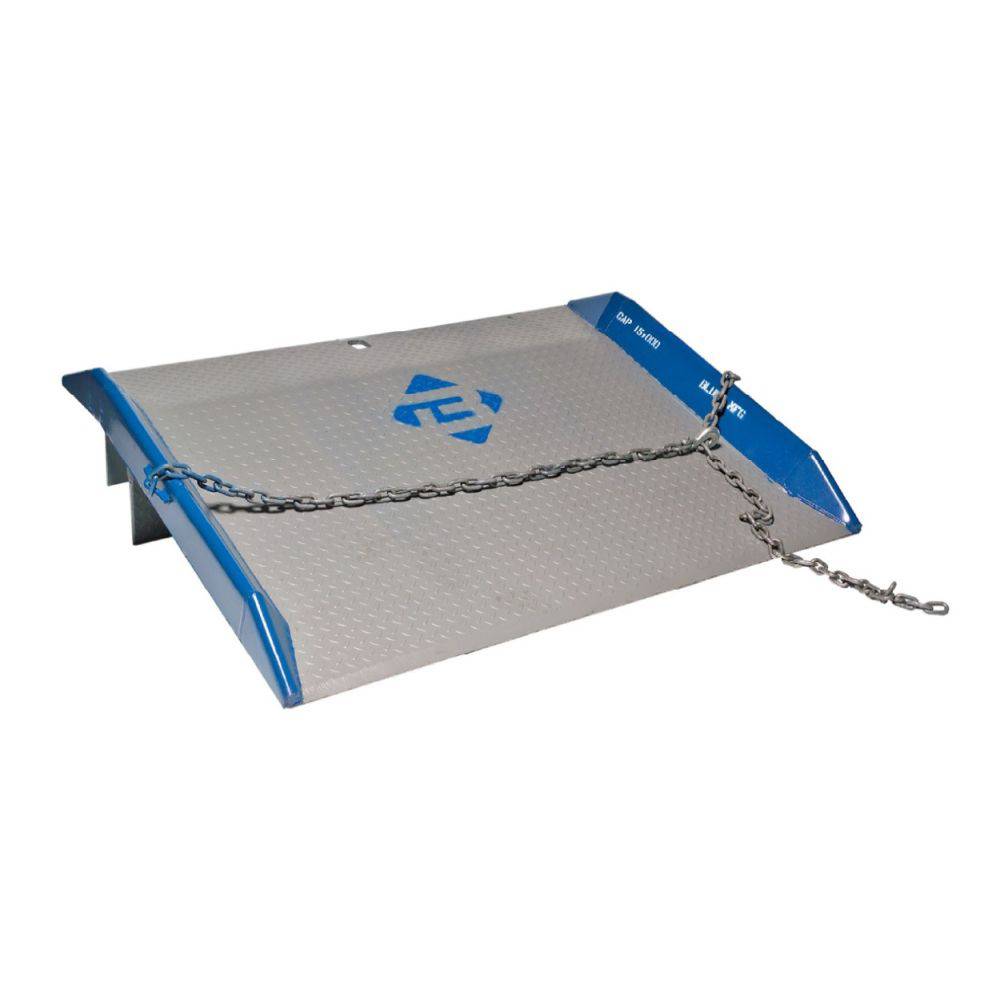

This Bluff steel dock board without dockside bend uses a diamond-plated steel deck to bridge the loading dock and trailer for forklift or material-handling traffic within its 20,000 lbs. rating.
The no-dockside-bend design is intended to create a smoother dockside transition for pallet jacks and other low-profile material-handling equipment. Fixed legs secure the board to the trailer.
Key Features
- 20,000 lbs. listed capacity
- Diamond-plated steel deck
- Two fixed legs
- Above-dock loading
- Smoother dockside transition
- Lifting chains included
Ideal For
Choose this product if you need:
- Loads within the 20,000 lbs. rating
- Forklift loading between dock and trailer
- Industrial loading areas requiring a steel board
- Openings matching a listed width and length
Not Ideal For
Not ideal for below-dock loading, loads above 20,000 lbs, powered equipment requiring a different board rating, or dock and trailer openings that do not match one of the listed board dimensions.
Product Details
Review the shared product details below and compare the available SKUs to confirm the capacity, steel deck, securing method, loading direction, board width, and board length match your dock and trailer.
Shared Product Details
| Brand | Bluff Manufacturing |
| Product Type | Steel Dock Board Without Dockside Bend |
| Capacity | 20,000 lbs. |
| Material | Diamond-plated steel |
| Traffic | Forklift / material handling |
| Available Dimensions | See SKU table |
Available SKU Options
Use the SKU table to match the exact size and configuration required for your loading area or facility.
| SKU | Configuration Details |
| 20TNB6048 | Dimensions: 60"W x 48"L |
| 20TNB6060 | Dimensions: 60"W x 60"L |
| 20TNB6072 | Dimensions: 60"W x 72"L |
| 20TNB7248 | Dimensions: 72"W x 48"L |
| 20TNB7260 | Dimensions: 72"W x 60"L |
| 20TNB7272 | Dimensions: 72"W x 72"L |
| 20TNB8448 | Dimensions: 84"W x 48"L |
| 20TNB8460 | Dimensions: 84"W x 60"L |
| 20TNB8472 | Dimensions: 84"W x 72"L |
Frequently Asked Questions
How do I choose a board size?
Match the board width and length to the dock opening, trailer, equipment, and height difference.
Can it be used below dock?
Use the loading-direction guidance in the Product Overview; some fixed-leg styles are listed only for above-dock loading.
What capacity should I use?
Keep the combined equipment and load within the listed 20,000 lbs. rating.
