Steel Drum Funnel W -6" Flame Arrester, S-C Cover, Tip-over Protection Kit for 2" Drum Bung

In stock
SKU: 08207
Regular price $305.00
Est. Ship Date: Friday, March 8th
Trusted By

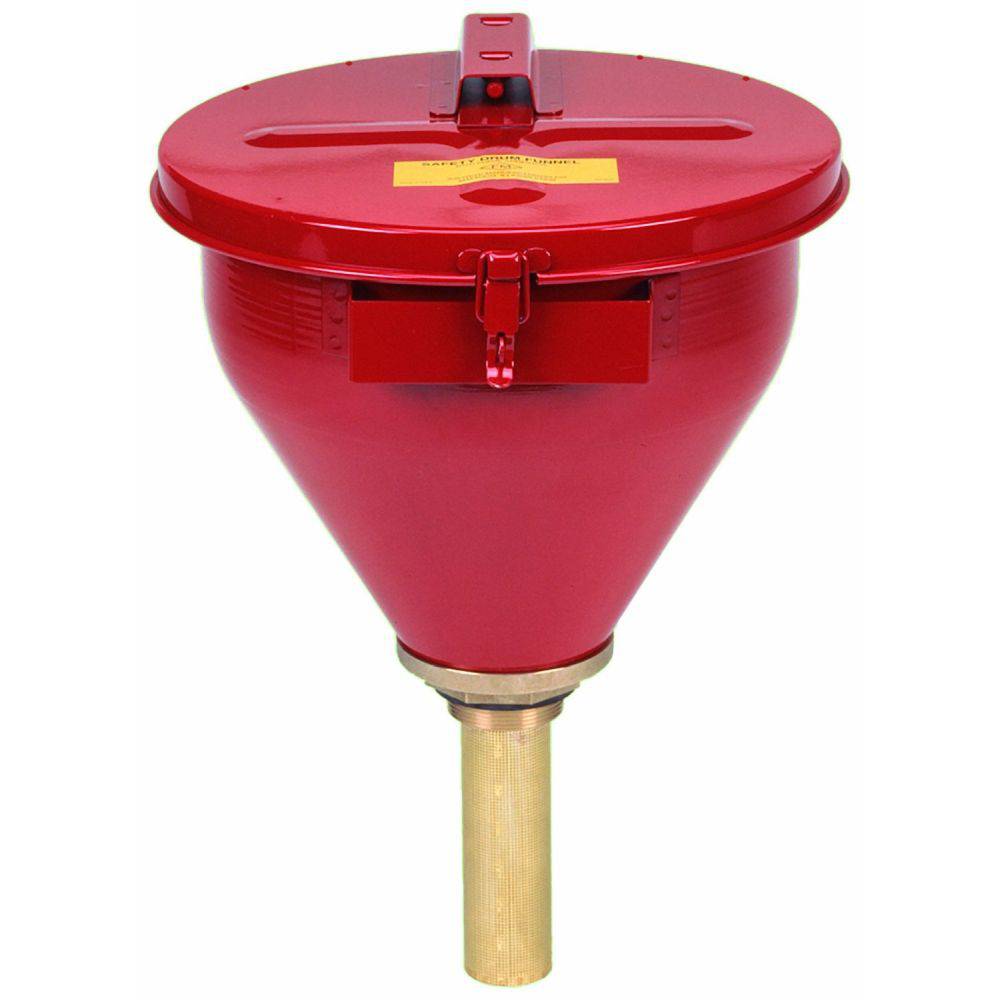

Justrite® Steel Drum Funnel w/ 6" Flame Arrester

Funnels intended for use with flammables are fitted with a brass flame arrester that absorbs and dissipates heat, preventing any external ignition source (like sparks from power tools, static electricity, or cigarettes) from reaching the drum's flammable contents. Heavy 18-gauge galvanized steel, with electrostatically applied epoxy powder-coat finish, provides durability and chemical resistance. Self-close models have a fusible link that melts at 165°F (74°C) shutting the cover automatically in case of a fire to extinguish the flames.

Popular funnel No. 08207 with 6" (152mm) flame arrester handles most needs, while No. 08205 with 32" (813mm) flame arrester provides greater liquid flow. For viscous flammable or nonflammable liquids, funnel No. 08208 is fitted with a 33" (838mm) open-end brass tube to direct liquid flow. All funnels comply with EPA and OSHA regulations and are FM approved. Larger funnels accept a lock to prevent unauthorized access.

Note: It is important to segregate incompatible wastes to avoid chemical reactions or explosions. Store drums properly indoors, or in a weather-protected area outside. Funnels can be left in place on the drums.

Product Summary:

  • Large steel funnel with self-closing cover and 6-inch flame arrester
  • For use with flammables
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.


Approvals FM
Cover Self Close
Flame Arrestor 6"
Flame Arrestor Material N/A
Funnel Capacity 2.6 quart(s)
Funnel Dimensions 10.75" Dia. x 10" H
Material Galvanized Steel
Mouth Dimensions 10.75"
Threading 0.75"
Color Red
