Thermal Pressure Relief Device for Piston Pumps

In stock
SKU: 282876
Regular price $215.24
Est. Ship Date: Thursday, April 18th
Trusted By

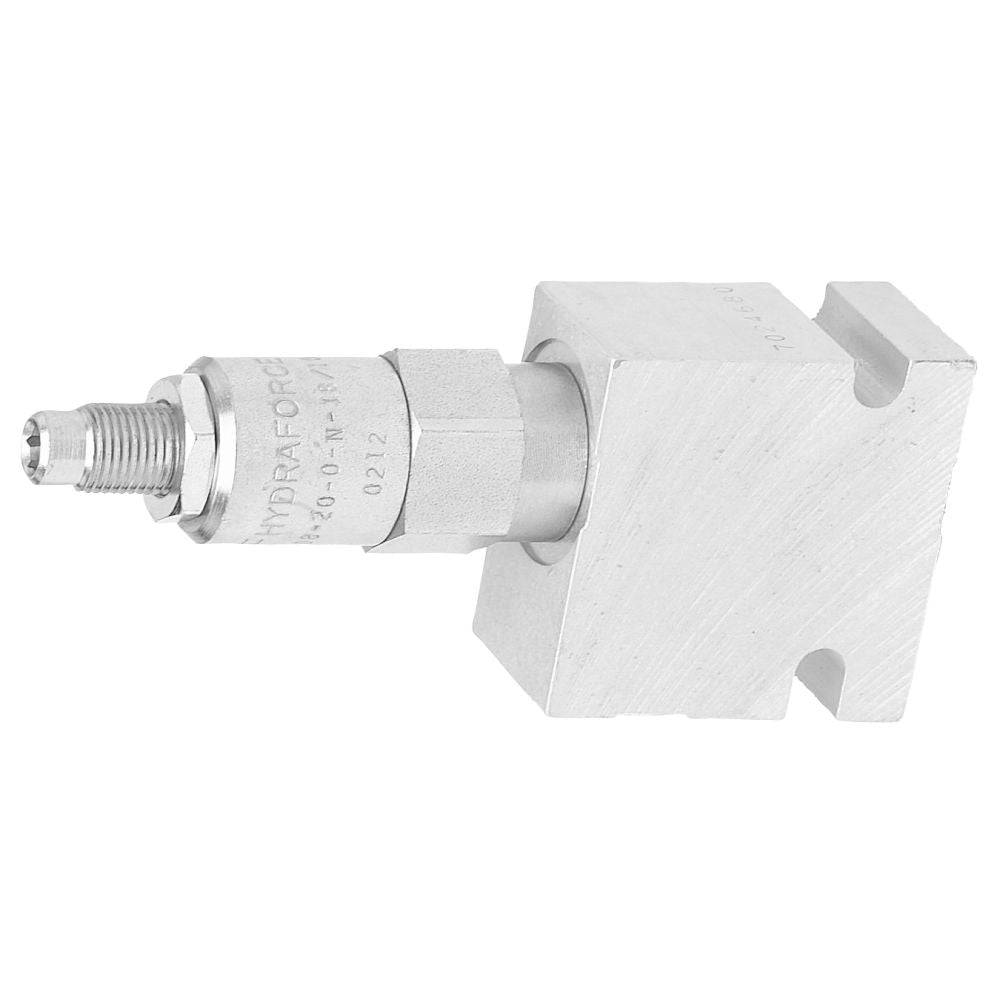

Lincoln® Thermal Pressure Relief Device for Piston Pumps

Managers of vehicle service centers can now turn to our new thermal pressure relief device to protect against possible damage to their closed pipe systems caused by thermal expansion. For example, as oil warms, it expands and causes pressure - sometimes oil that was 300 psi becomes 2,000 to 3,000 psi.

Lincoln® Thermal Pressure Relief Device - 282876 Lincoln® Thermal Pressure Relief Device - 282876Such pressure spikes can cause costly damage if they exceed the design capacity of pipes and system components. Our pressure relief valve returns fluid/material back to the tank, limiting the pressure to protect the system.

  • Range: 5 to 75 Cycles/Min.
  • Power: 9V Lithium Ion Batter
  • External Signal: 2 A 30 V DC
  • Relay: 0.5 A 125 V AC
Model No. 282876
Brand Lincoln Lubrication
Description  Valve Only
Application  3:1, 5:1, 6:1
Pre-Set Relief Pressure 1000 psi/68 bar
Size NPT  1/2"
