Product Overview

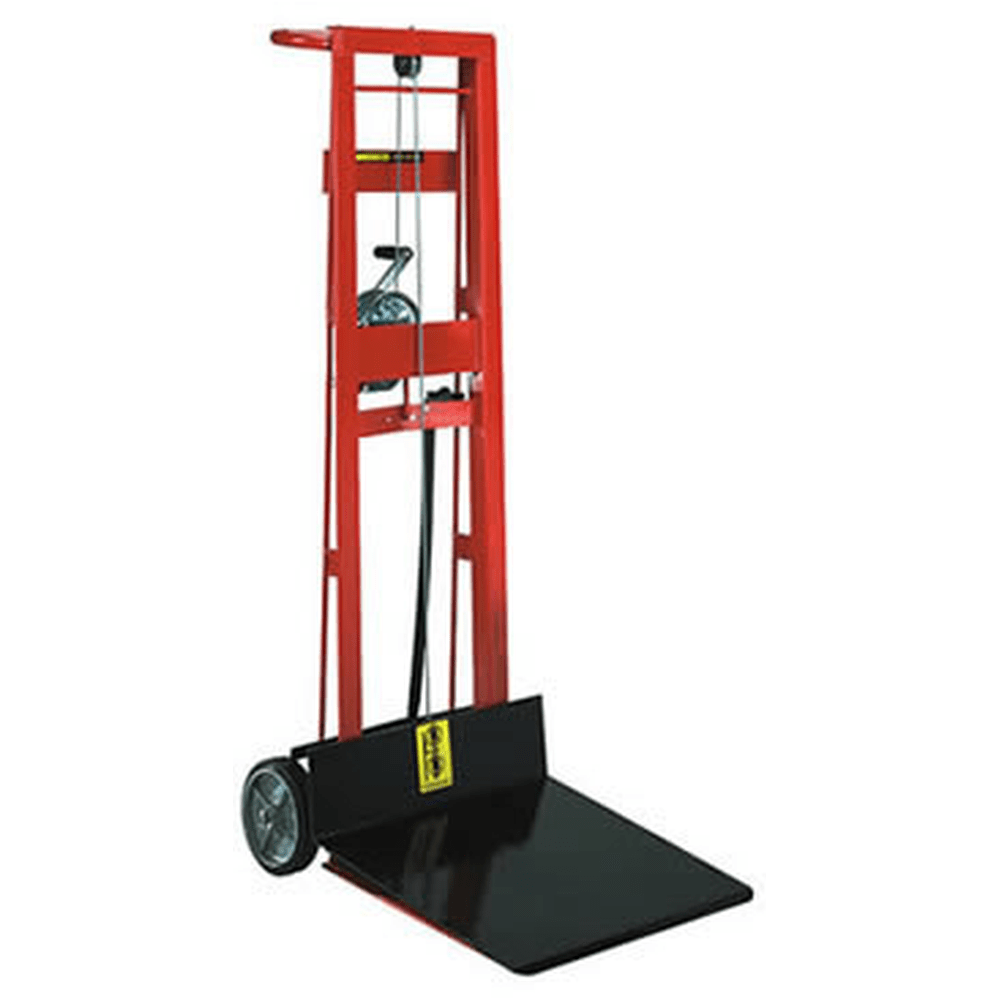

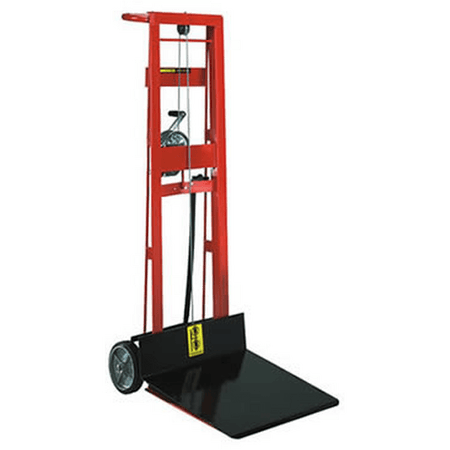

The Wesco Two-Wheeled Winch Pedalift, model 260016, offers an innovative lifting solution with a user-friendly design. This pedalift features an auto-brake winch system that raises and lowers the platform by simply turning the handle, eliminating the need for manual locks or releases. Designed for low maintenance, it provides reliable performance with minimal upkeep.
The front of the 22" x 22" platform touches the ground, facilitating easy loading and unloading. Standard wheel locks enhance safety and stability during use. Available in two heights, the lift can reach up to 54" with an overall height of 60.5", or a 40" lift with an overall height of 48.5". With a 750 lb capacity and weighing 147 lbs, this pedalift is ideal for a variety of industrial and commercial applications.
Key Features
- 750 lbs listed capacity
- 22"D x 22"W x 54"H dimensions
- 147 lbs listed weight
- Low maintenance design
- Front of the platform touches the ground on two-wheeled model
- Wheel lock standard
Ideal For
Choose this product if you need:
- Lifting and positioning loads in material-handling areas
- Loads within the listed 750 lbs capacity
- Loads compatible with the listed 22"D x 22"W x 54"H platform or forks
Not Ideal For
Not ideal for loads above the listed 750 lbs capacity, loads incompatible with the 22"D x 22"W x 54"H platform or forks, or applications requiring fully powered travel and lift operation.
Product Details
Review the product details below to confirm the listed capacity, dimensions, and model / mpn are suitable for the load, fork or platform fit, aisle space, and lift point.
Shared Product Details
| Brand | Wesco |
| Capacity | 750 lbs |
| Model / MPN | 260016 |
| Dimensions | 22"D x 22"W x 54"H |
| Weight | 147 lbs |
Frequently Asked Questions
What capacity is listed?
The original product data lists a capacity of 750 lbs.
What fork or platform size should I check?
Compare the listed 22"D x 22"W x 54"H dimensions with the load, pallet, or equipment being handled.
What model or part number is listed?
The listed model or part number is 260016.
