Used Fluid Pit Drain

on-backorder
SKU: 84700
Regular price $1,865.65

Trusted By

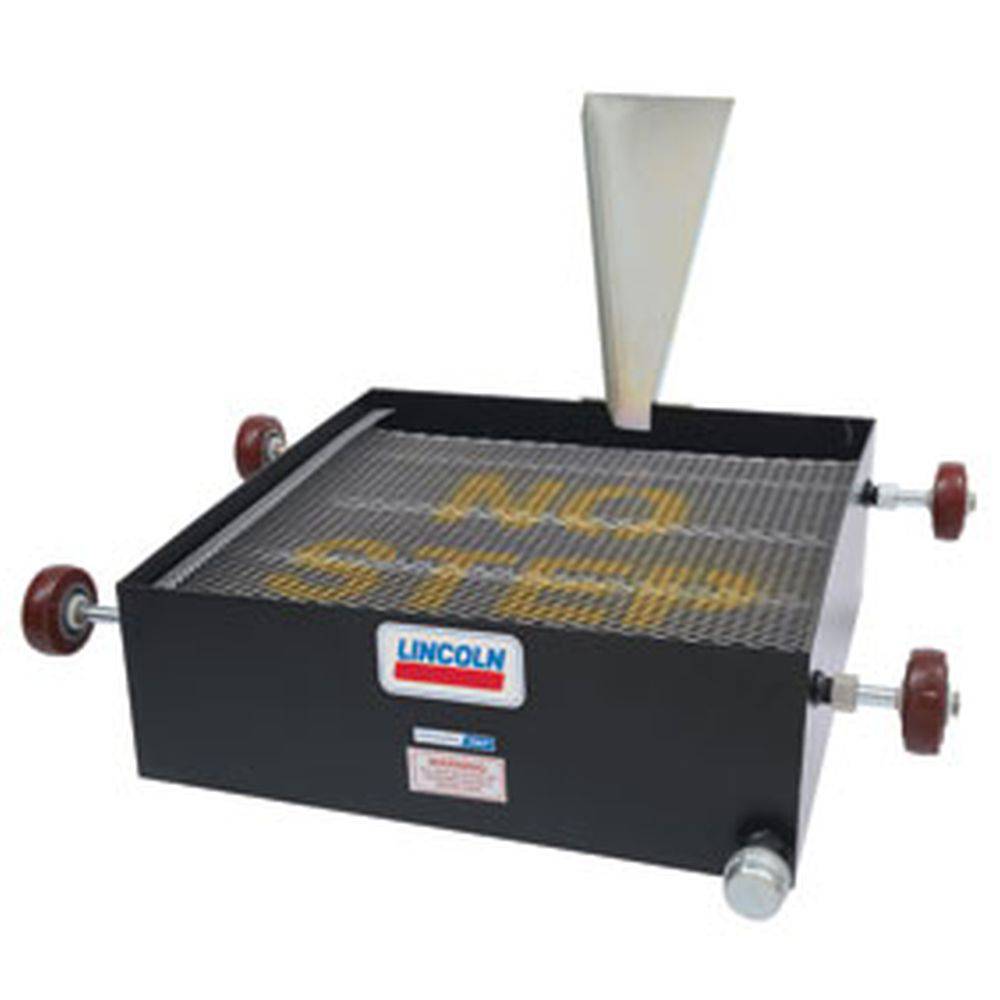

Used Fluid Pit Drain - 30 Gallon

Pit drains are designed for track-mounting in service pits or drive over applications. Two wheels extend from each side of the reservoir on axles that can be adjusted to fit varying track widths. Reservoirs have two opposing 3/4" NPT ports for connecting to an external evacuation pump and/or for connecting multiple drains in tandem. All models feature heavy-duty steel construction with internal baffles to reduce splash and a removable steel debris screen.

Large capacity welded steel reservoir glides smoothly on a 4" diameter polyurethane wheels. Includes model 92572 removable splash shield to focus oil stream into reservoir.

  • Four wheel and axle assemblies extend and lock to fit varying track widths
  • Internal baffles reduce splash during movement
  • Removable steel screen keeps out parts and debris
  • Shutoff valve and 3/4" male camlock connector with dust cap included

**Typical fast lube system - bill of materials, rolling drain pan.

WARNING: This product can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Model No. 84700
Description  Rolling Drain Pan
Capacity  30 gal.
Overall Height  9.3"
Track Width  36" to 49.5"
Reservoir Material  Steel
Wheel Quantity  4
Wheel Diameter 4"
Drain Ports  3/4" male NPT
Size  36 x 28 x 9.3"
Code  1
Required  2
