Valley Craft Drum Dumpers: Efficient & Safe Material Handling

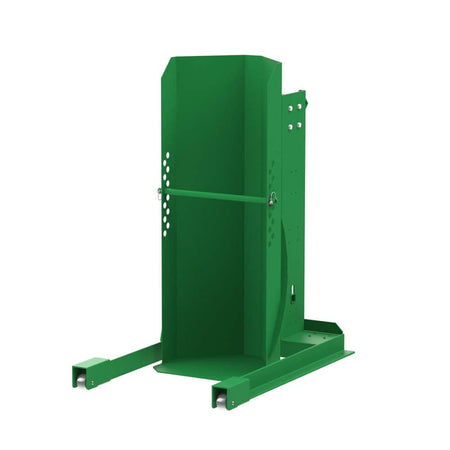

Valley Craft's Drum Dumpers are the perfect solution to improve efficiency and safety while dumping material by utilizing a powered lifting and dumping process. Designed with stationary and portable options, these drum dumpers are ideal for repetitive dump areas or continually changing locations.

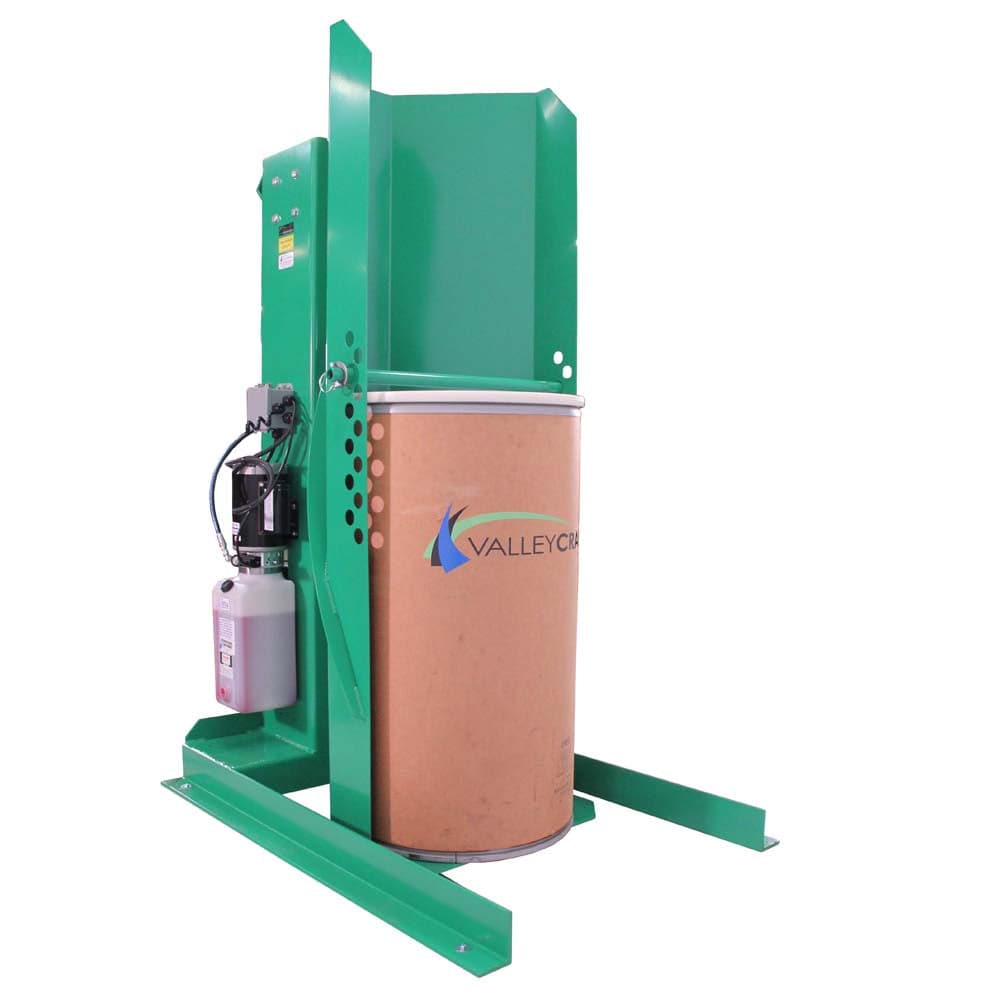

The dump chute accommodates a variety of steel, plastic, or fiber drums; ranging up to 25" in diameter and between 26-43" in height. An included hold-down bar secures your drum and is adjustable on 1" increments. Dump heights are available from 36-84" (36", 48", 60", 72", or 84" models available) and have a 1,500 lb. load capacity. Constructed of heavy-duty 7 gauge steel, these drum dumpers are built to withstand the most rigorous use. Predrilled mounting holes provide the ability to secure your unit to the floor for added stability, and loading drums is made simple with the chute conveniently at floor level.

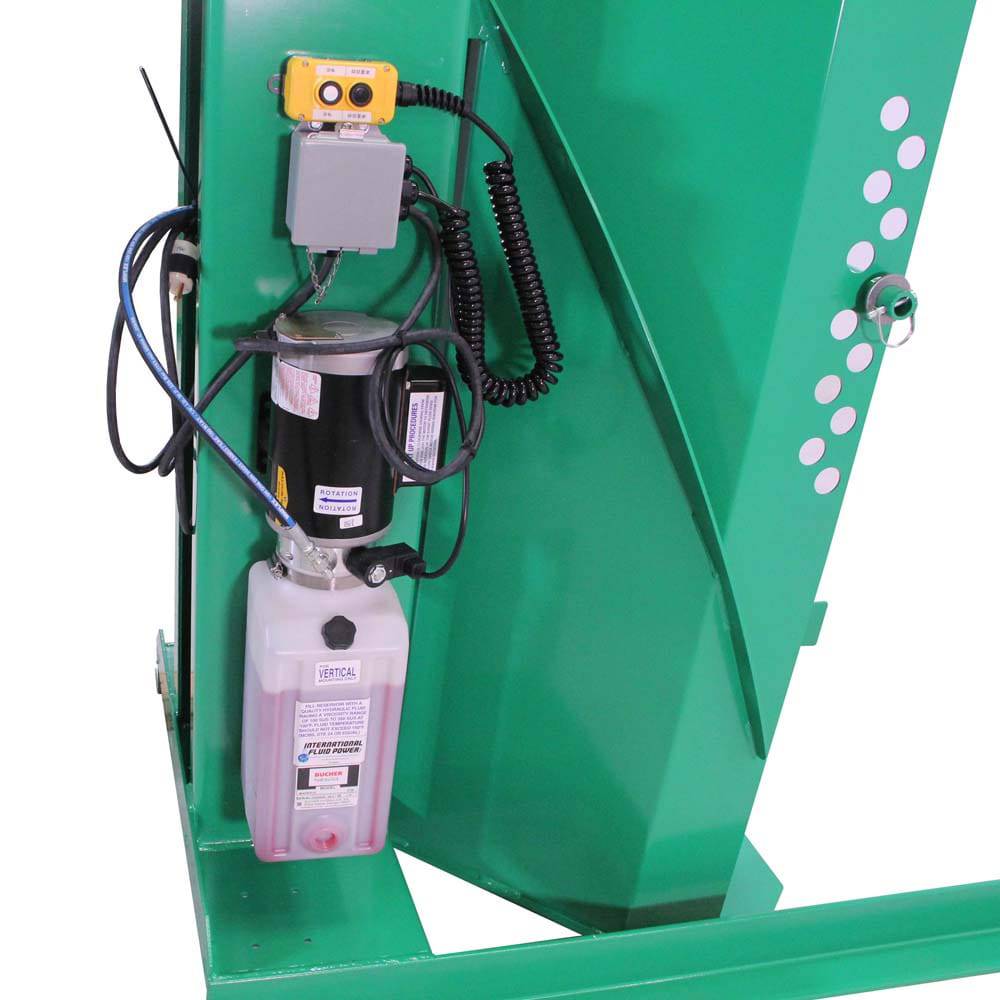

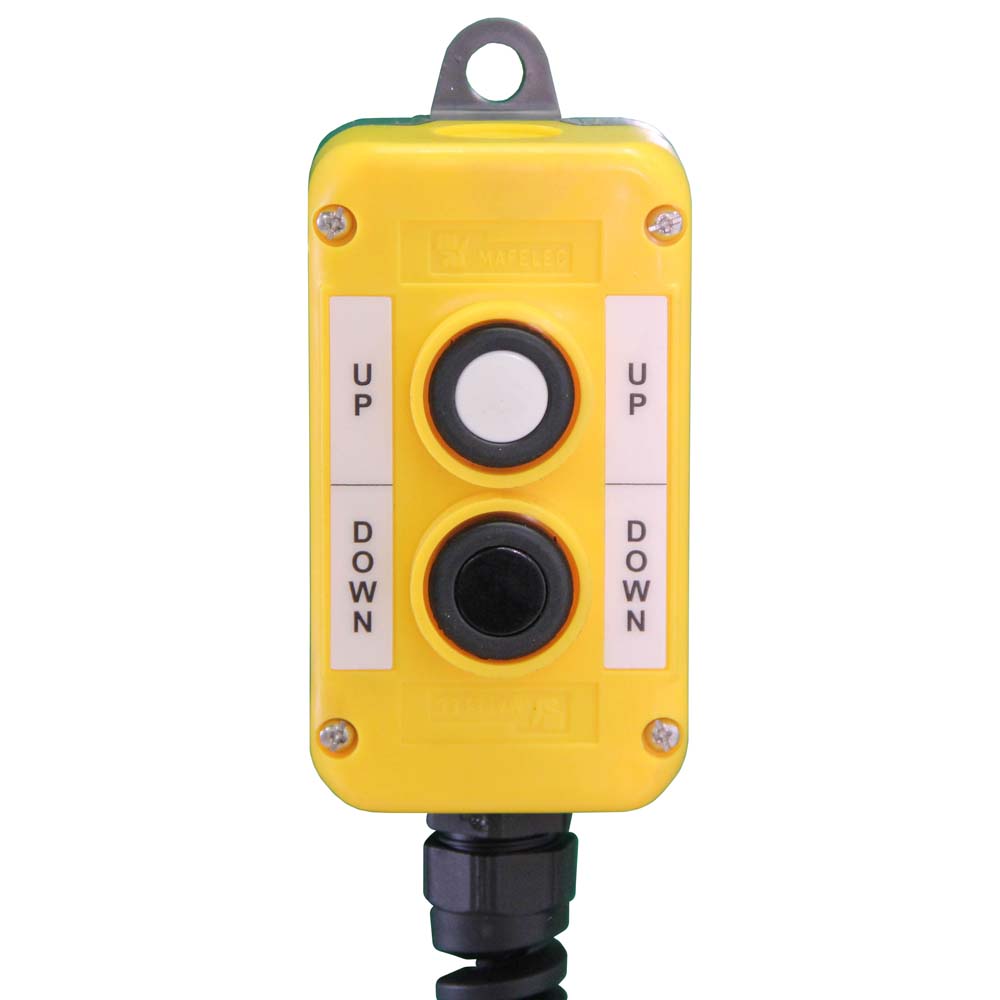

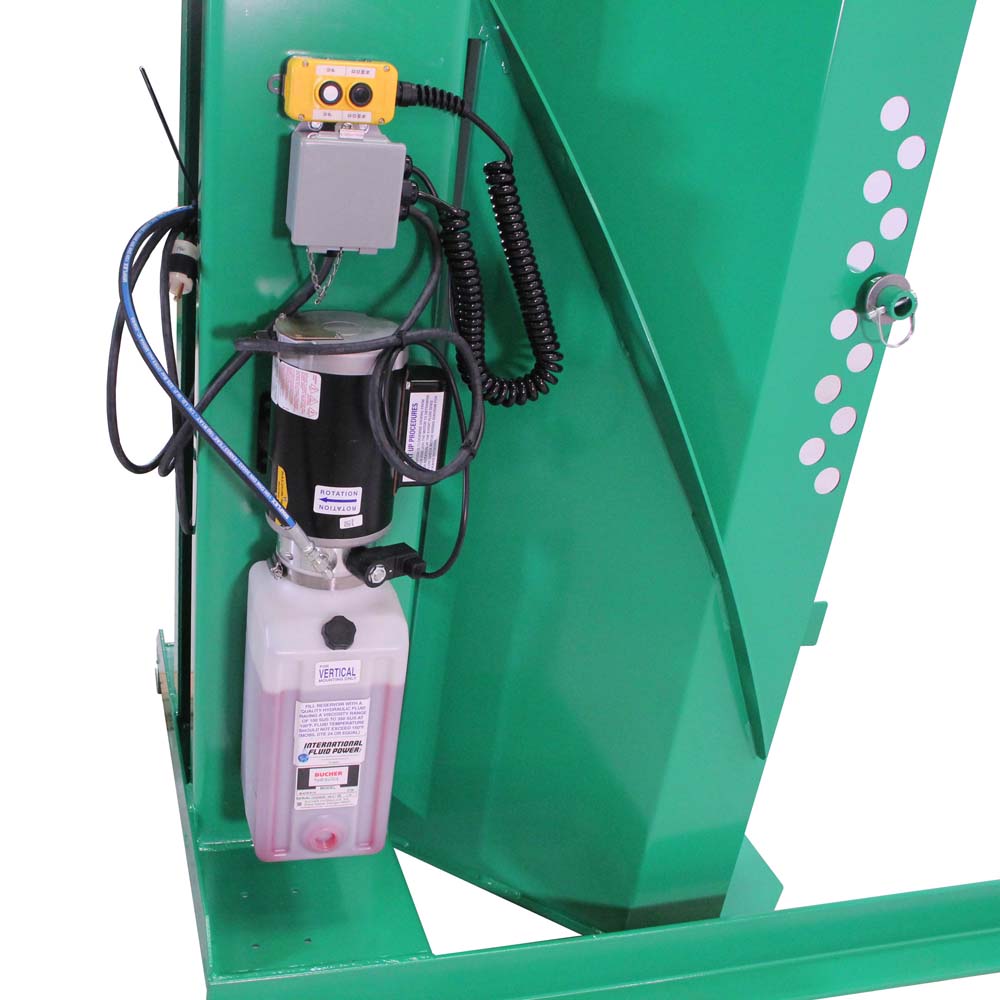

Simply operate the unit using the convenient hand-held pendant with magnetic back. Pendant completes powered dump cycle and gravity return in less than 60 seconds. While 60" and shorter models (36", 48" and 60") use a single-stage dump cycle, the taller models (72" and 84") operate utilizing a dual-stage dump cycle to reach the desired heights. Both designs rise vertically until arms meet the pivot rollers causing the chute to rotate safely and efficiently. Units operate using 60 Hz / 110V power, a 1HP motor, and a 1GPM pump.

Valley Craft's Drum Dumpers reduce the need for manual lifting and dumping, and you can be confident they are built to last using a heavy gauge carbon steel construction with a premium powder coat paint finish in green. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

• Effortlessly dump drums with improved efficiency.
• Reduce need for manual lifting, bending, and loading.
• Eliminate fatigue or possible injury.
• Variety of sizes and configurations to fit your needs.
• Operate using convenient handheld pendant with magnetic back, controlling the 20 amp, 110-volt motor.
• 60-second powered dump cycle, with gravity return.
• Smooth operation utilizing dual flow hydraulic control valve system.
• Simply load containers at floor level.
• Hold-down bar secures 26-43" drums, adjustable on 1" increments.
• Compatible with steel/plastic/fiber drums up to 50 gallons (up to 25" in diameter).
• 1,500 lb. capacity.
• Heavy duty 7 gauge steel construction.
