Valley Craft Fully Powered Drum Lifts and Rotators

In stock
SKU: F80143A6
Regular price $20,995.00
Est. Ship Date: Monday, May 27th

  • 1,000 lb. Capacity
  • Ergonomic Control System
  • Effortless Drum Handling

Lift Body
Lift Mast Height
Connection
Trusted By

Valley Craft Fully Powered Drum Lifts and Rotators

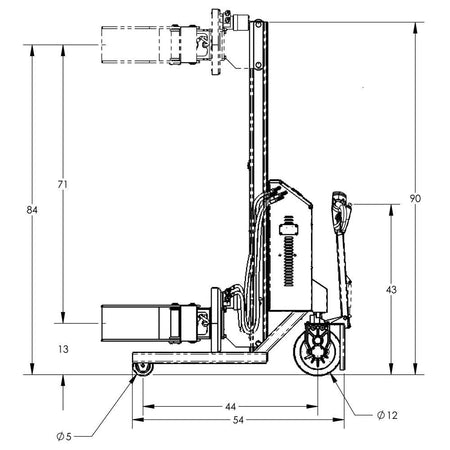

Valley Craft's Fully Powered Drum Lifts and Rotators simplify the lifting, rotating, and transporting of drums by utilizing power. Drums lift up to 84" in height (78" or 90" height models available) in less than 30 seconds, rotate up to 360° continuously in either direction at 6 RPM, and drive up to 2.5 MPH. Compatible with all drum styles (steel, plastic, and fiber), drum handling and maneuvering have never been easier.

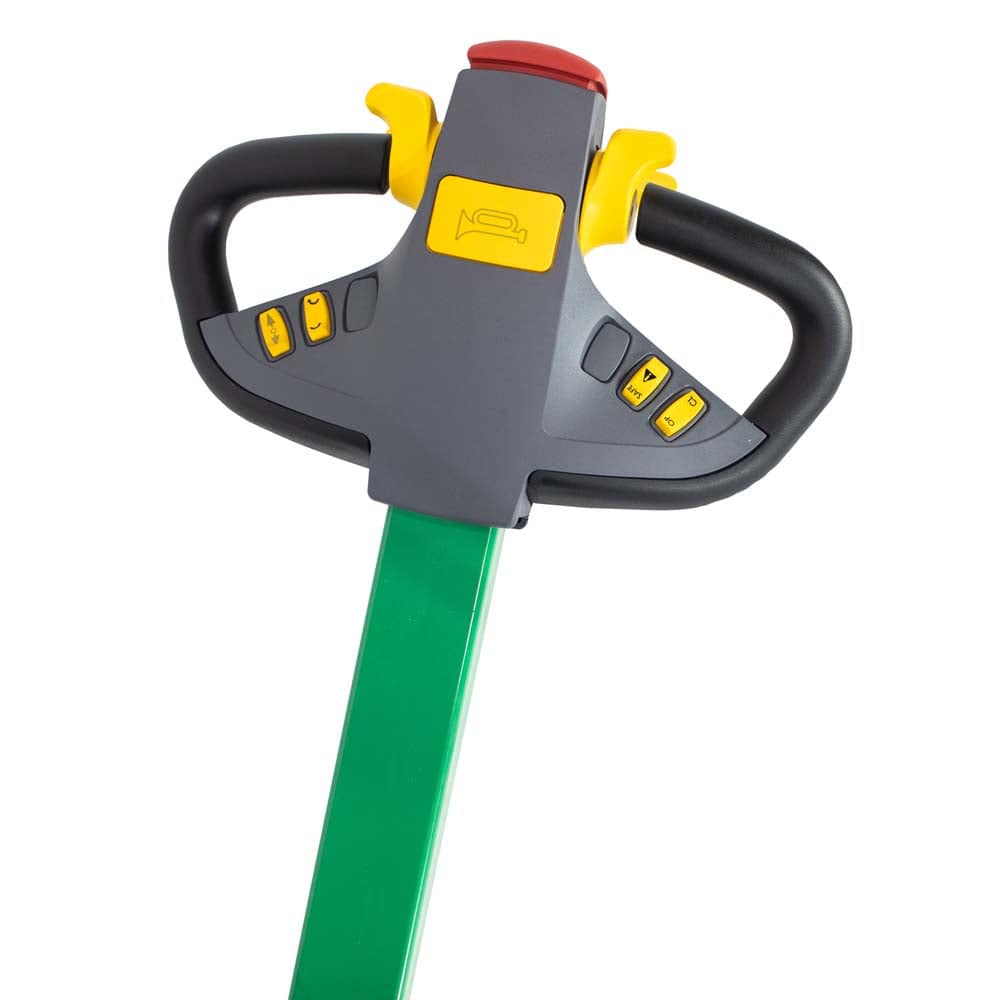

Power source is a 24V system featuring (2) 12V DC batteries and an AC charger (included) that plugs into any standard outlet using an extension cord (not included). This premium system includes an adjustable drive system of 1-2.5 MPH (default set to 2.5 MPH) and an ergonomic Curtis TM-1 Tiller head for simple handling. Tiller handle features keyed on/off, reverse, adjustable throttle, rocker switches, horn, and a battery indicator light.

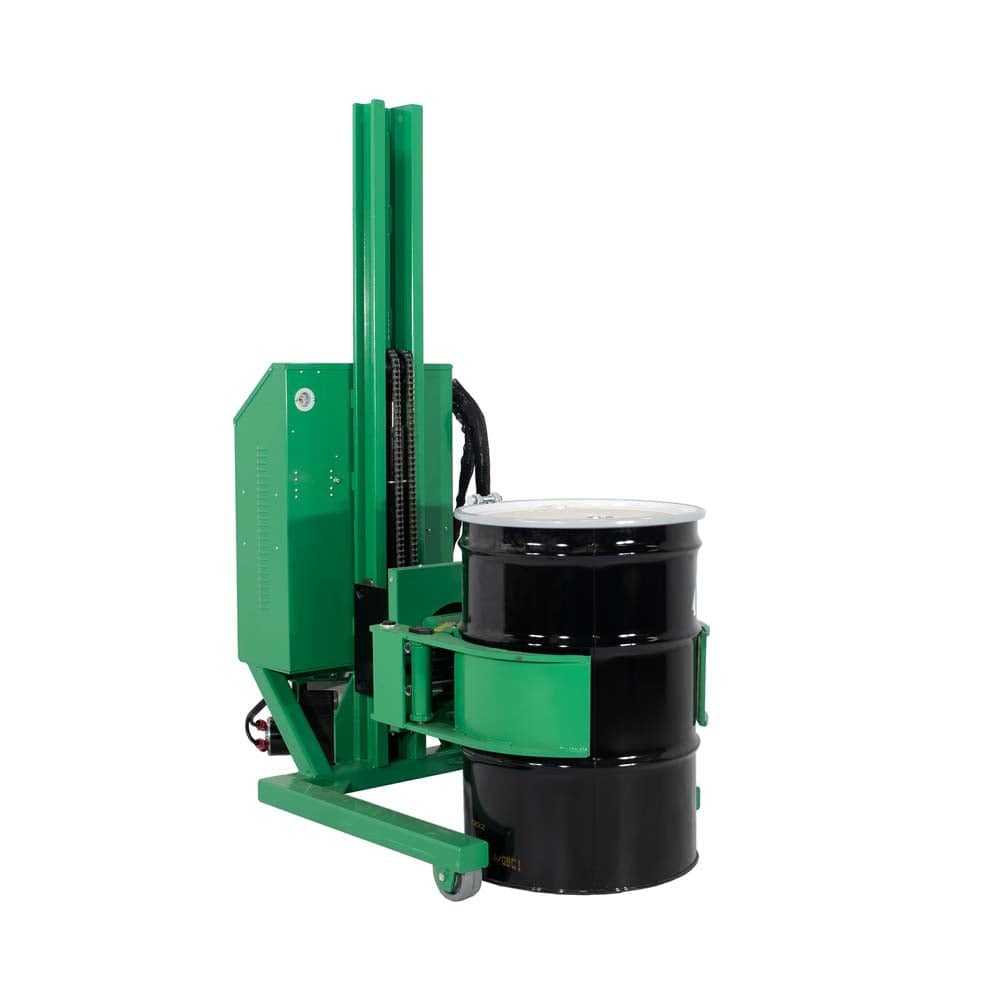

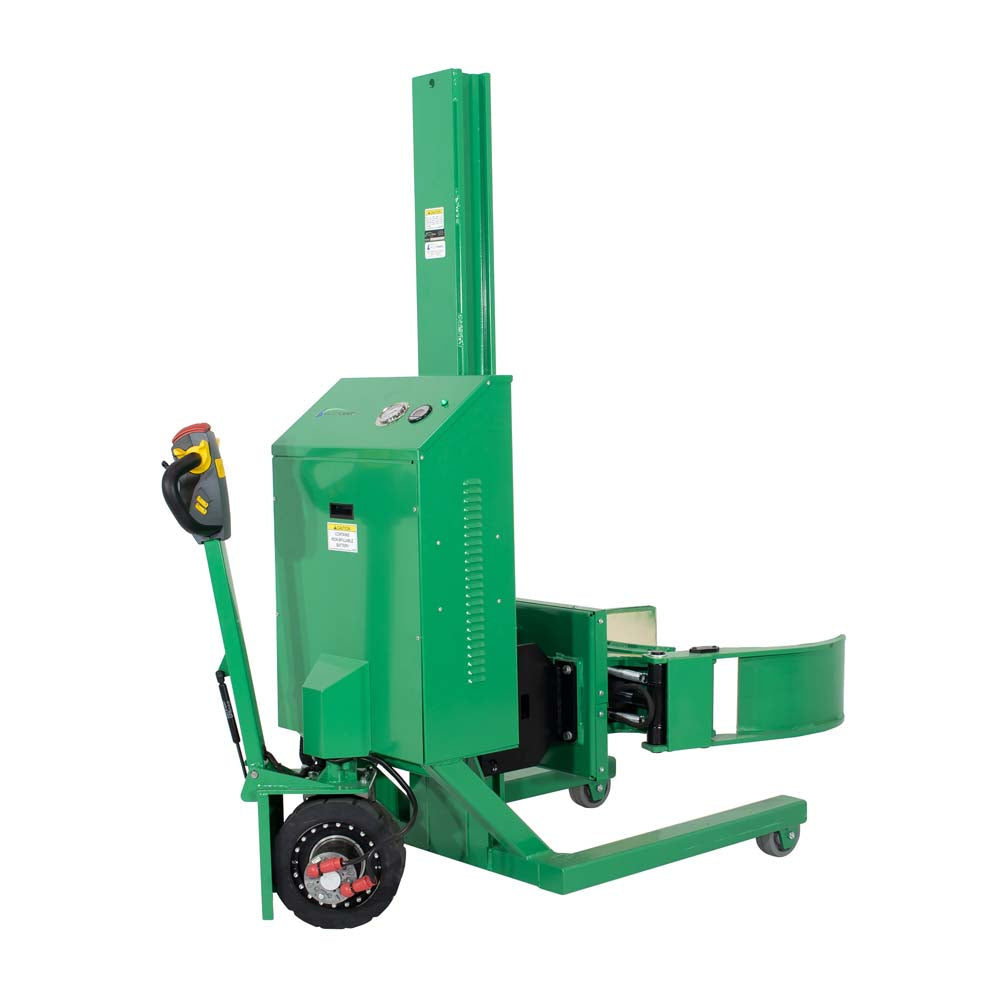

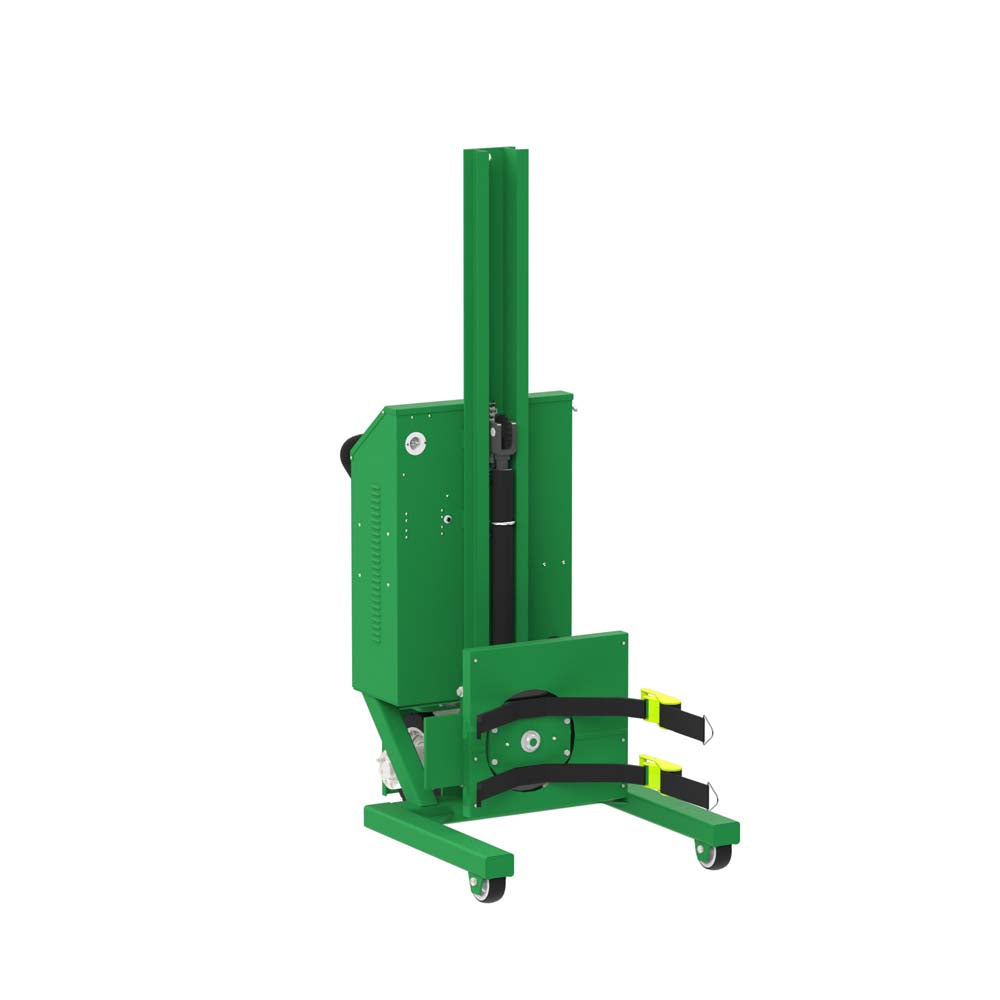

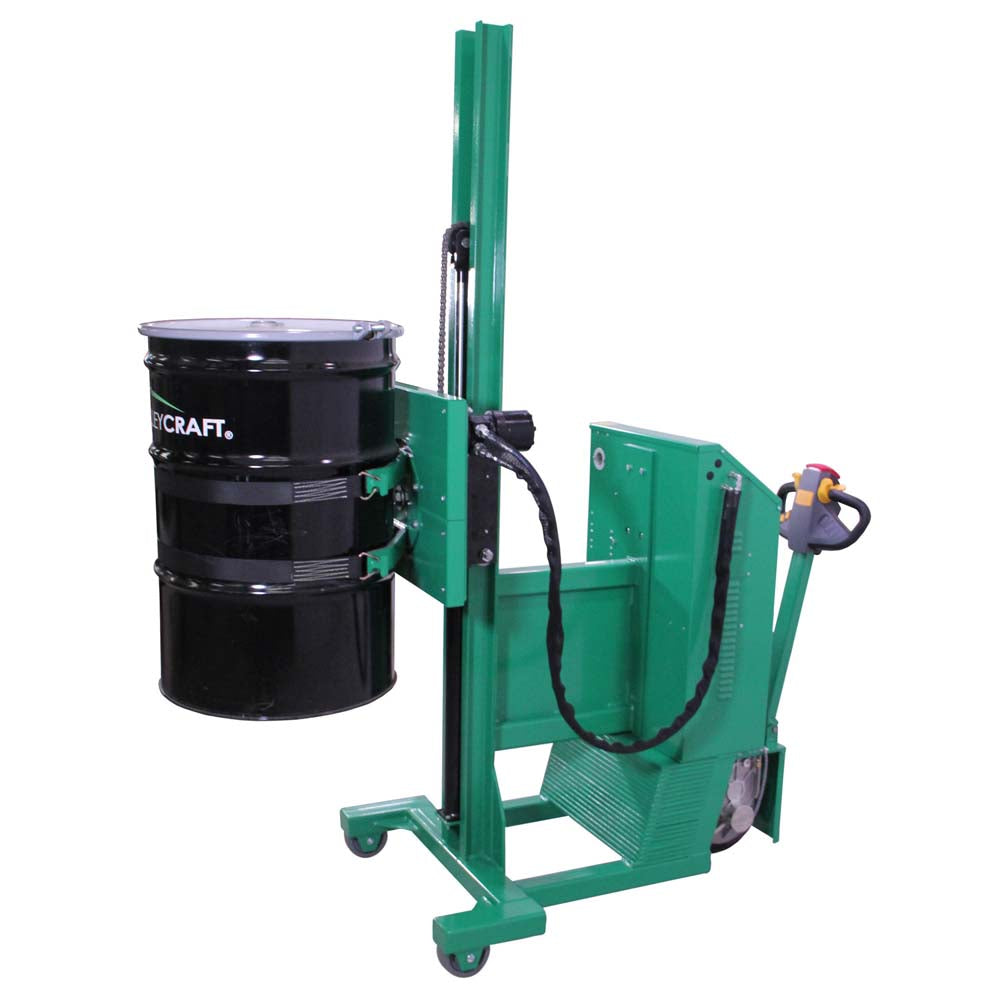

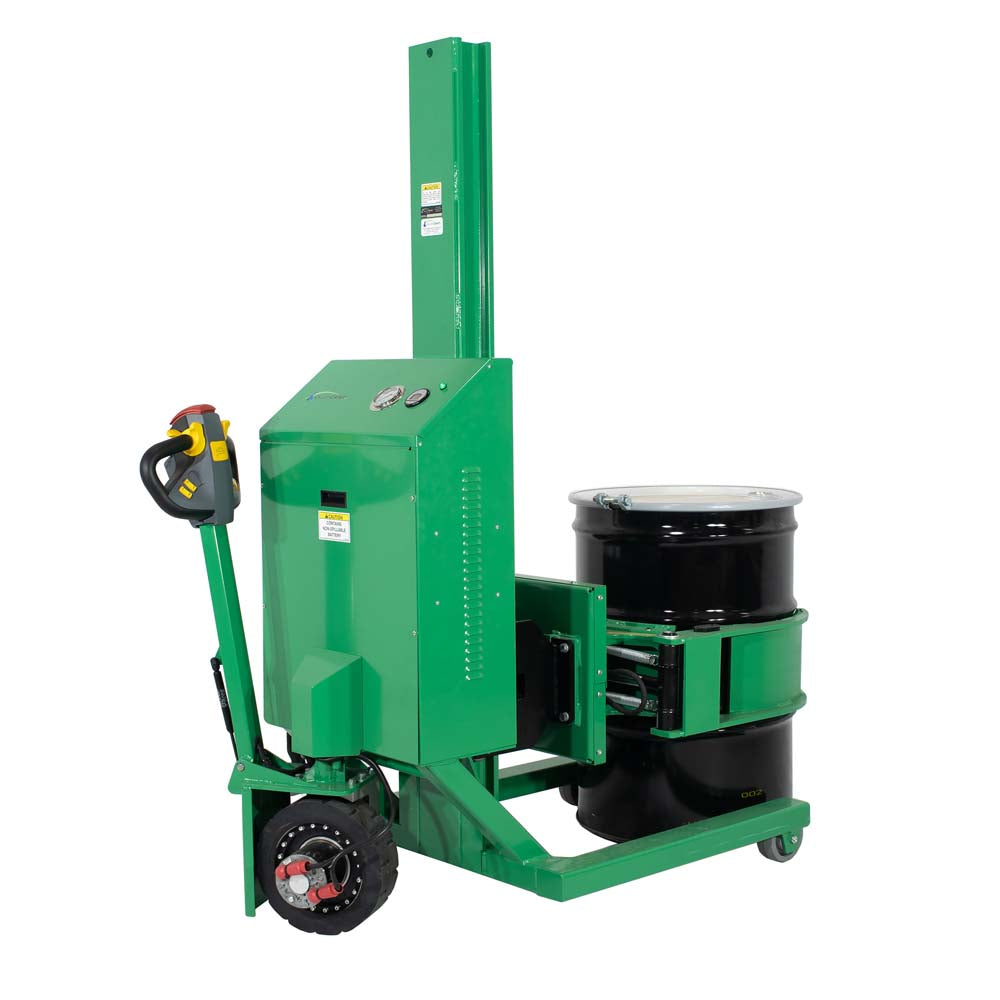

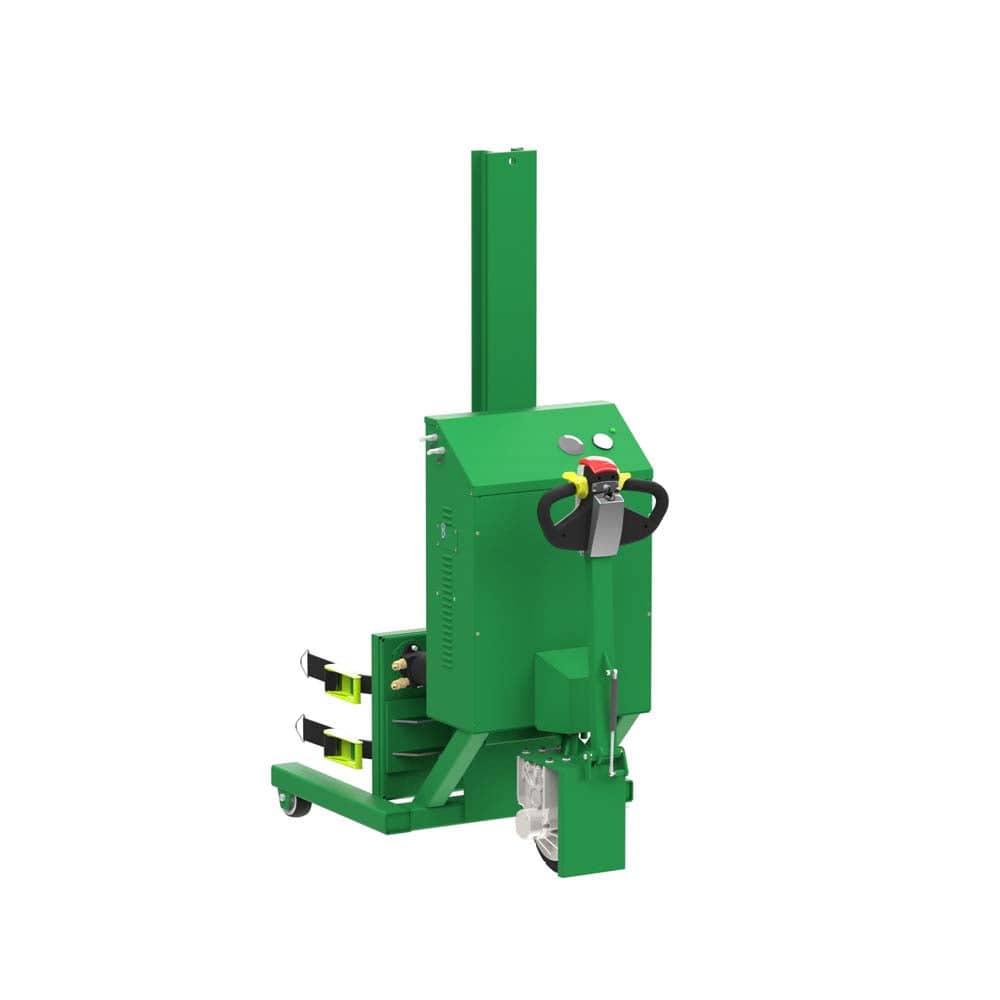

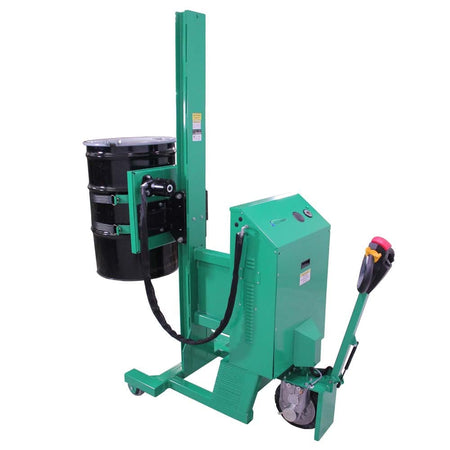

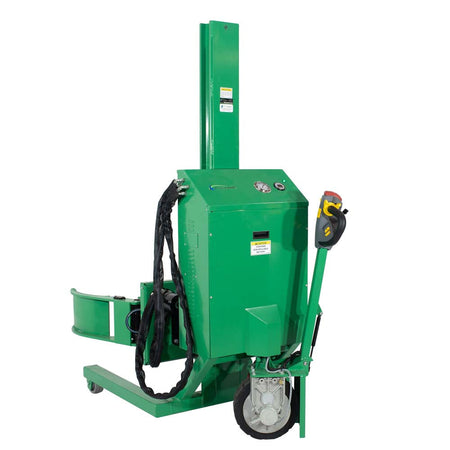

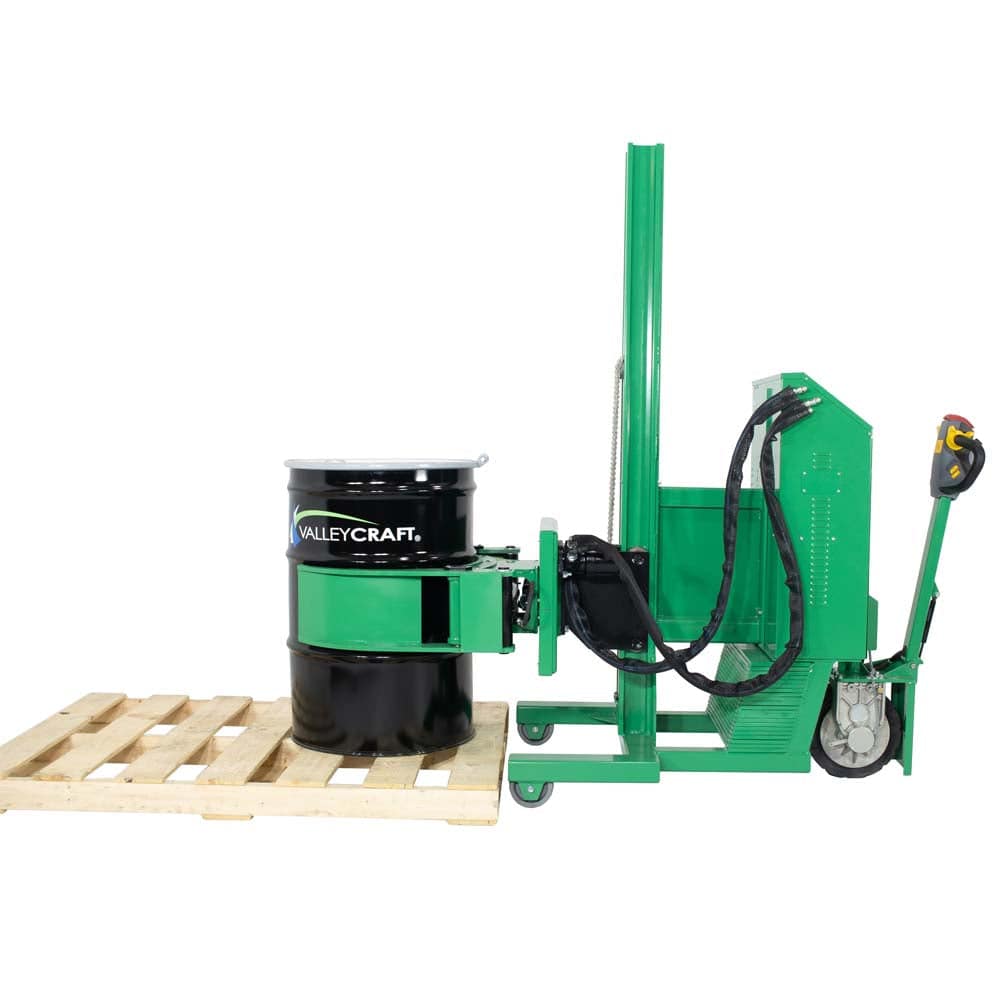

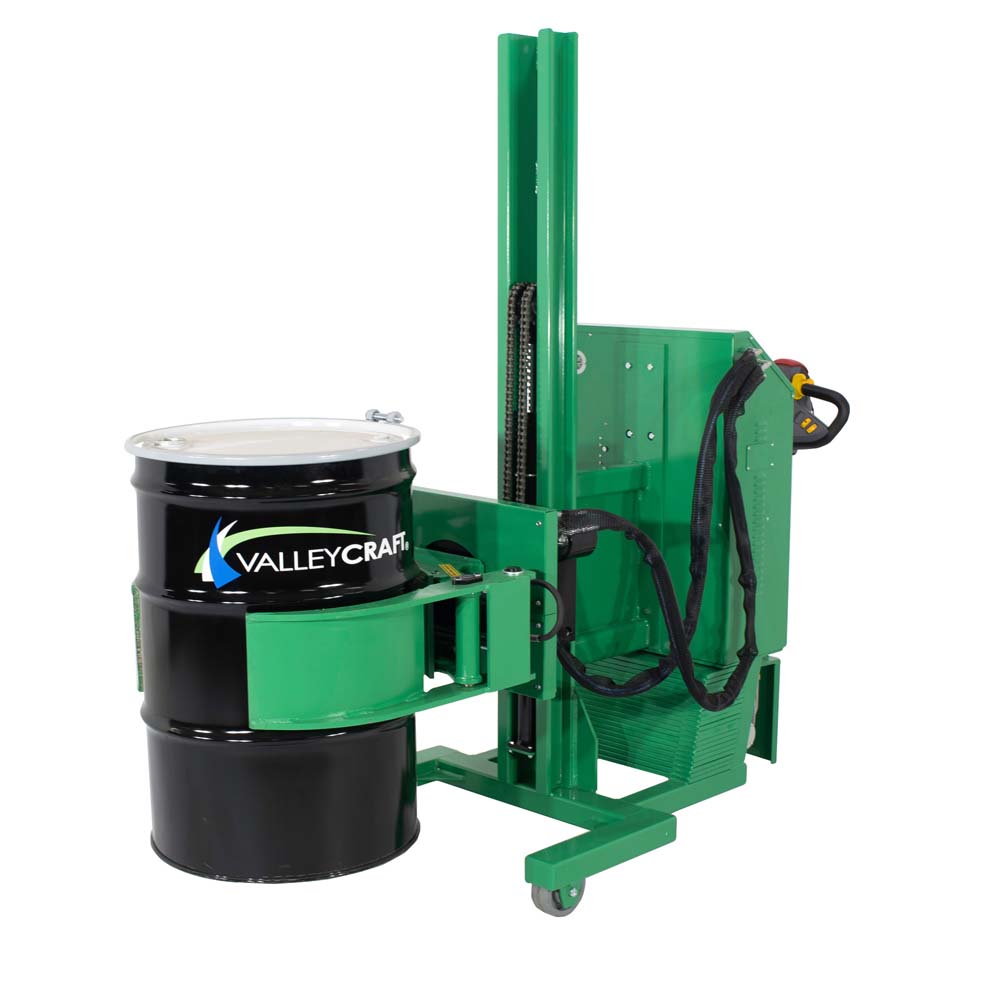

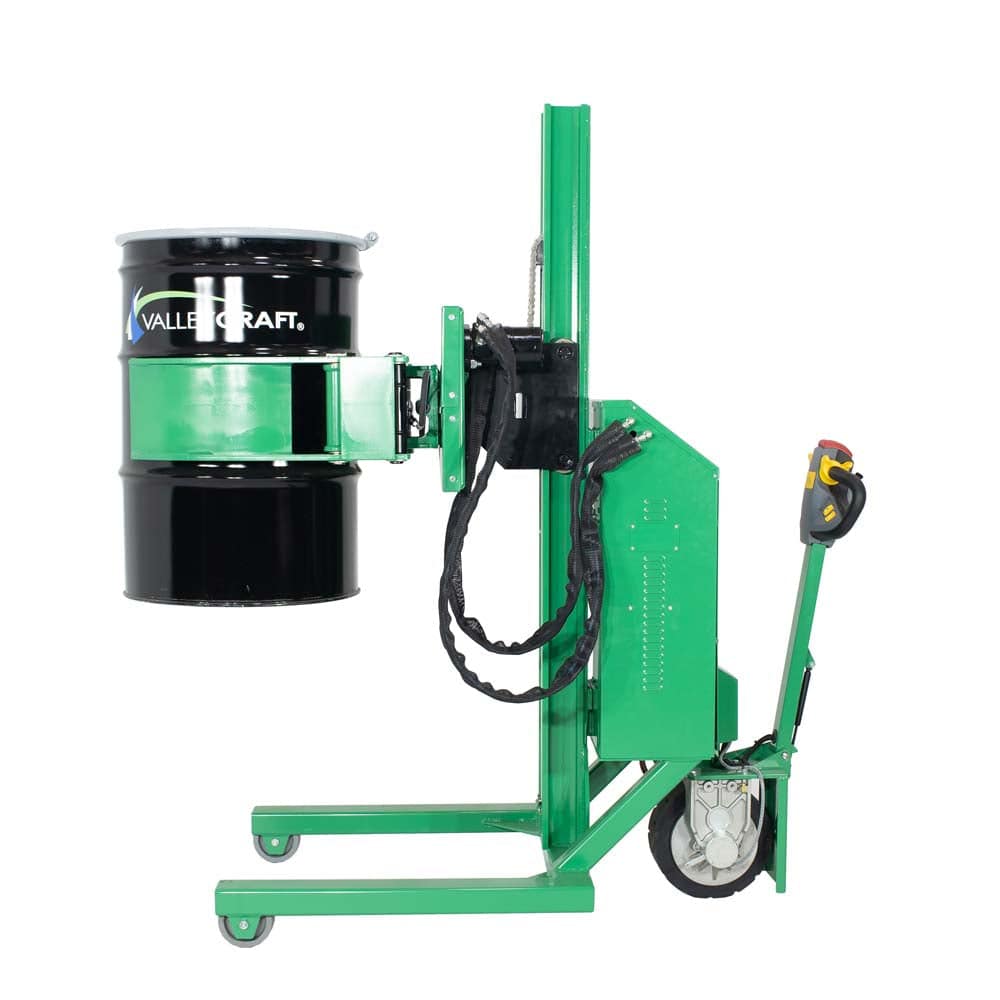

Units are available in either a Grip (Roto-Grip) or Strap (Roto-Lift) configuration to fit your needs and budget. The Grip configuration combines jaws with a hydraulic actuator to grab drums (18-28") and has an adjustable pressure gauge to ensure a secure grip. The Strap configuration utilizes the included straps to safely secure drums (14-24"). With a 1,000 lb. capacity it is simple to maneuver units on (2) 6" front rigid casters and (1) 12" rear power drive wheel. Designed as a standalone lift and rotator, forklift assistance is not required.

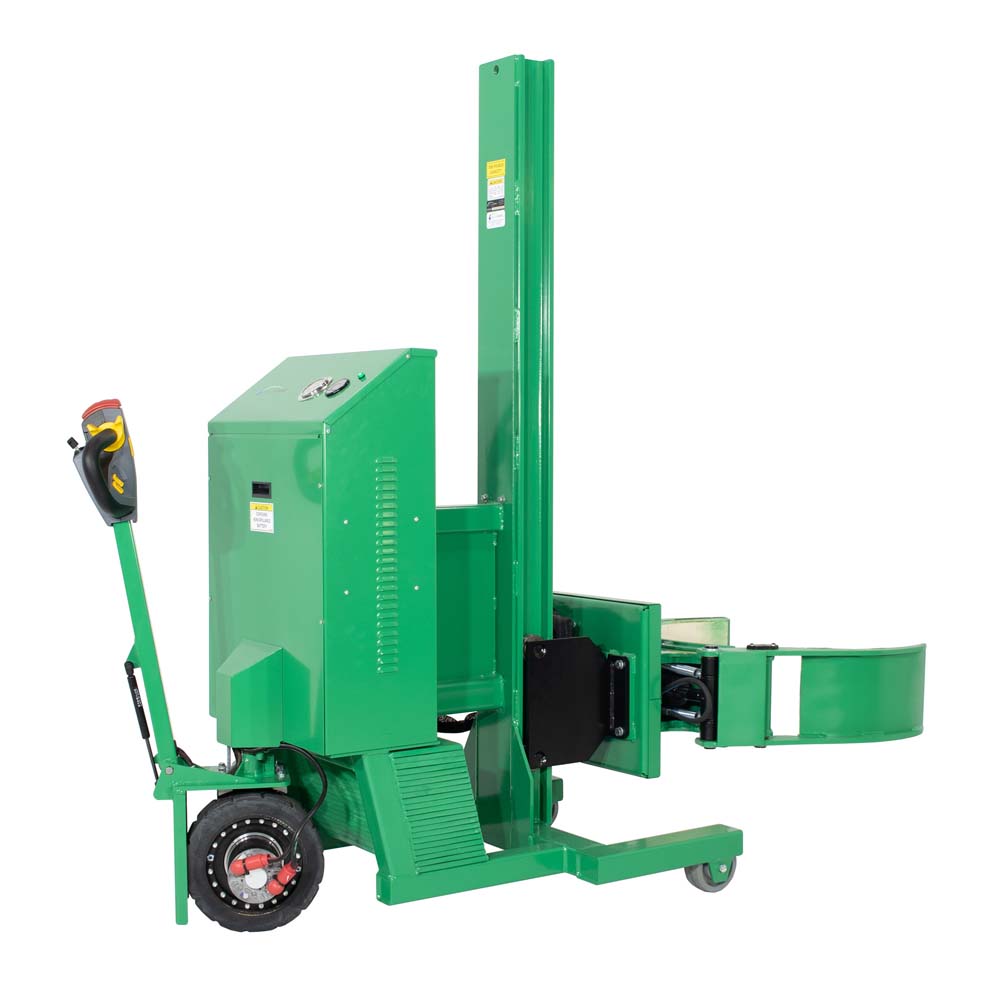

Both straddle and counter-weighted models are available to fit your application. Standard straddle units have extended front legs that go under pallets/shelving or on the outside of the drums when being handled. Counter-weighted models improve handling with the ability to butt directly up to pallets, shelving, or other units without having to worry about extended straddle legs getting in the way.

Valley Craft's Fully Powered Drum Lifts and Rotators improve the safety and productivity of any facility that is lifting, rotating, and transporting drums by eliminating the need for heavy manual assistance. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready to use, and are made in the U.S.A.

  • Safely and ergonomically lift, rotate, and maneuver drums.
  • Standalone unit (no forklift required).
  • Variety of sizes and configurations to fit your needs.
  • 24V battery-powered drive, lift and rotate.
  • Rotate 360° continuously in either direction at 6 RPM
  • Drive up to 2.5 MPH on (2) 5" front swivel casters and (1) 12" powered rear wheel.
  • 1,000 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

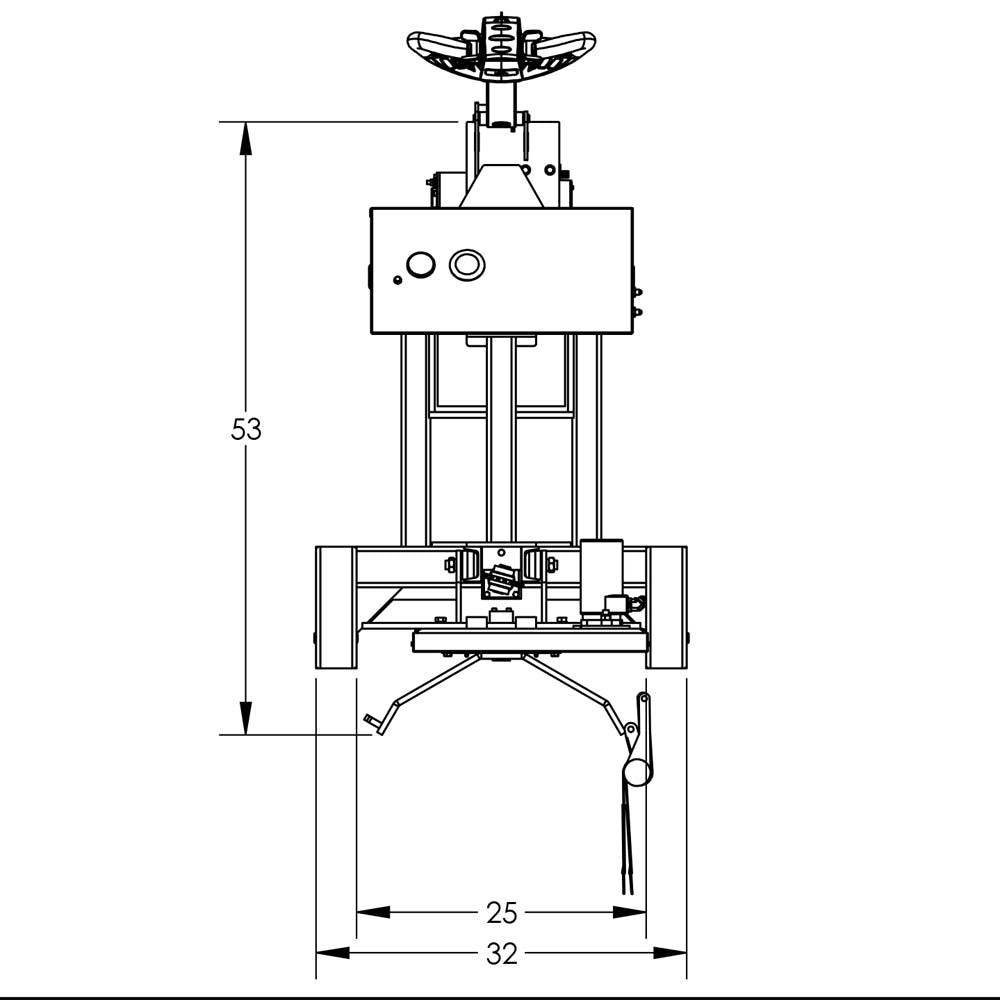

SKU Lift Mast Height Connection Size(L x W x H)/td> Weight
F80143A6 90 inches Grip 62" x 32" x 90" 1035 lbs.
F80144A7 78 inches Grip 62" x 32" x 78" 1000 lbs.
F80145A8 90 inches Grip 73" x 32" x 90" 1595 lbs.
F80146A9 78 inches Grip 73" x 32" x 78" 1560 lbs.
F89838A2 78 inches Strap 47" x 32" x 78" 725 lbs.
F89837A1 90 inches Strap 47" x 32" x 90" 760 lbs.
F89832A5 78 inches Strap 53" x 32" x 78" 1265 lbs.
F89831A4 90 inches Strap 53" x 32" x 90" 1300 lbs.
