Heavy Duty Warehouse Guard Rail Add-On Unit

Spec-Sheet Installation Instructions Architectural Specs

Regular price $214.00 Sale

Sunday, August 21st

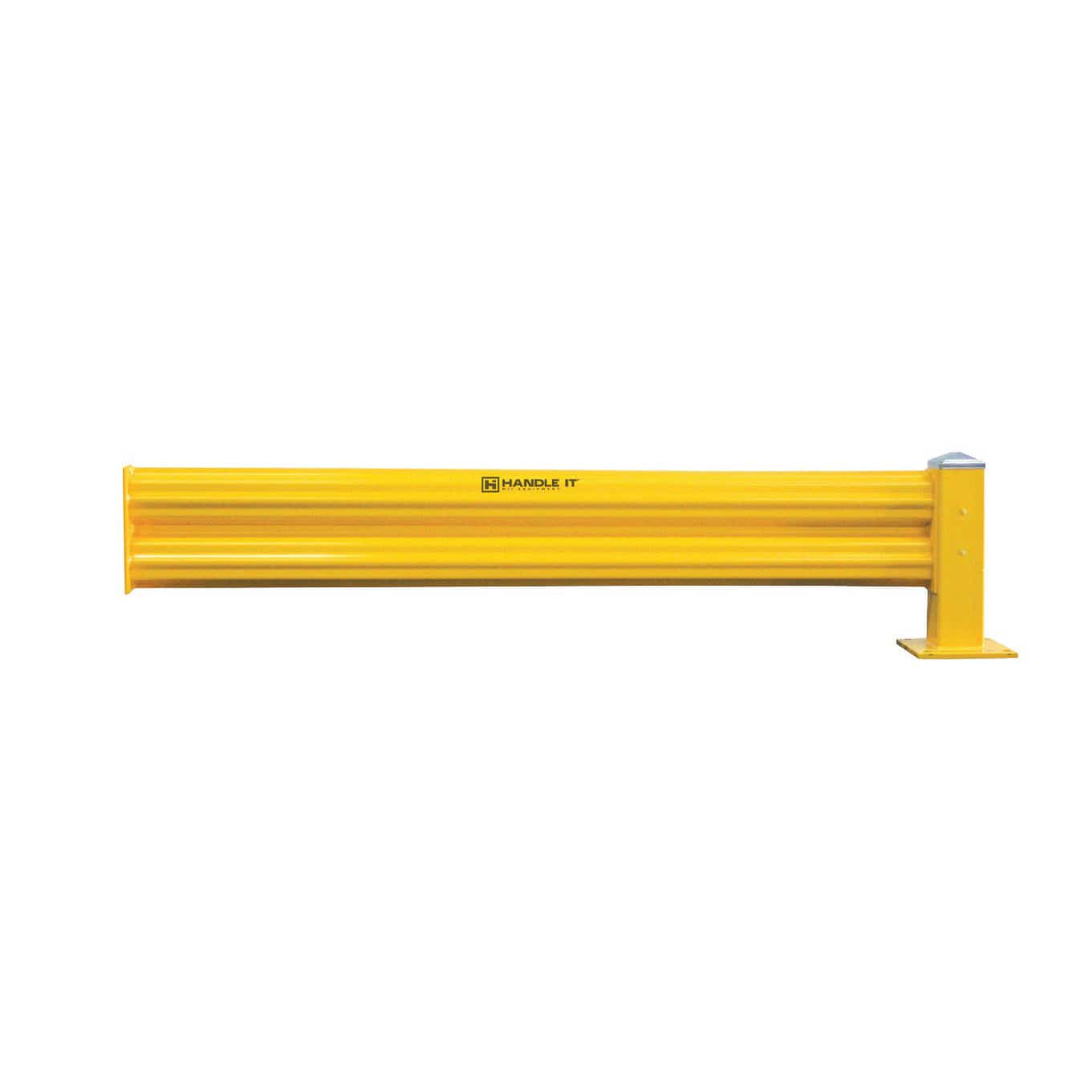

Handle-It® Heavy Duty Warehouse Guard Rail Add-On Unit

Handle-It Heavy Duty Add-On Single Guard Rail Unit with one column. Used as Safety Barriers and Forklift Guardrails. Quick ship stock in Milwaukee, WI warehouse. Available in 2 - 10 ft. Long x 18.5" Tall

*Ships out of WI

To create a line of guard rail start with a Starter Rail Unit, and then add as many Add-On Units as needed.

Lift Out Adapters are sold separately.

Adjustable Pedestrian Gate Specs - Purchase gate here

Add On Kits Include

  • ​(1) 18.5" Tall single rail post
  • (1) Heavy duty rail (2' - 10' L)
  • All hardware for install

Features and Benefits

  • Tested to withstand 10,000 lbs. at 4 mph
  • Powder coated Handle-It yellow, yields high visibility in a durable finish
  • 2 Rails and 1 column as add-on units
  • Column is 4.75" x 4.75" steel square tube mounted on a 10" x 10" base plate
  • Product design allows for faster installation cutting down on labor costs
  • Drilled & pretapped posts have mounting on all four sides
  • Custom sizes available for your special projects
  • All anchors and hardware/caps included
  • In stock items can ship within 24 hours.

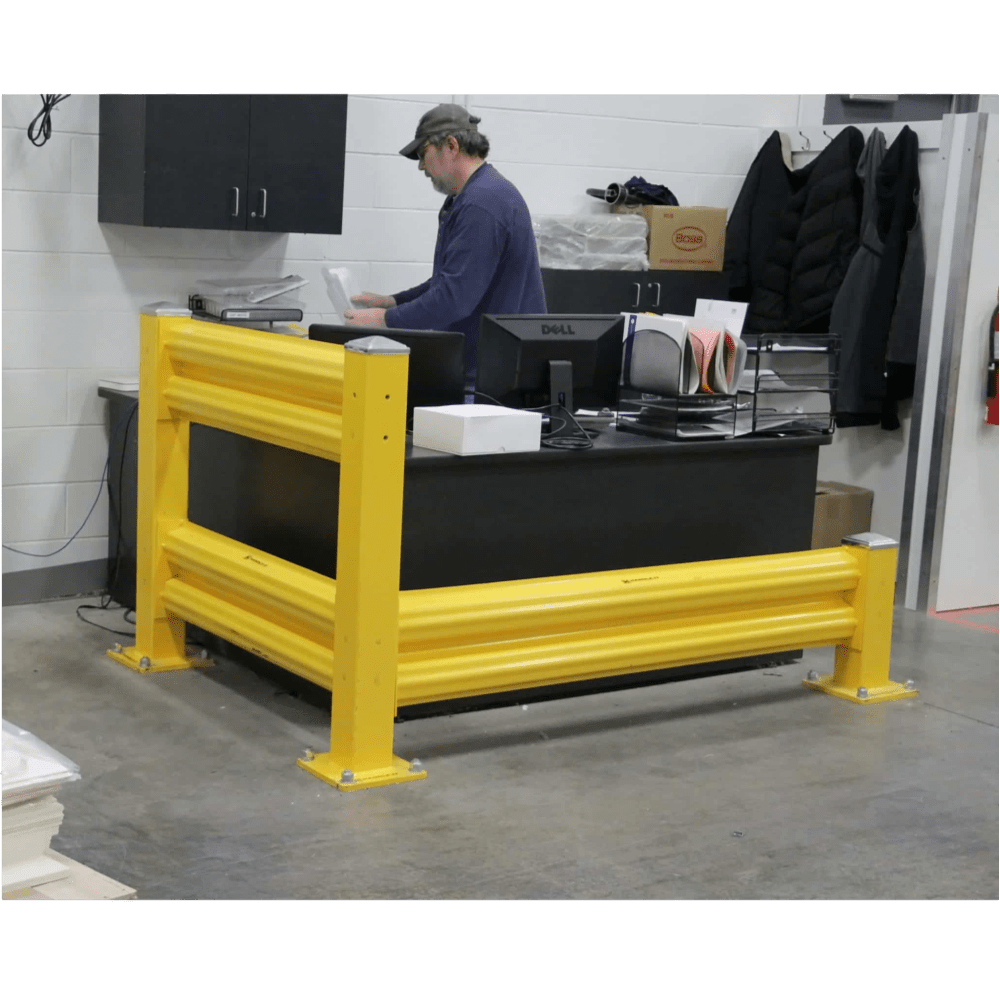

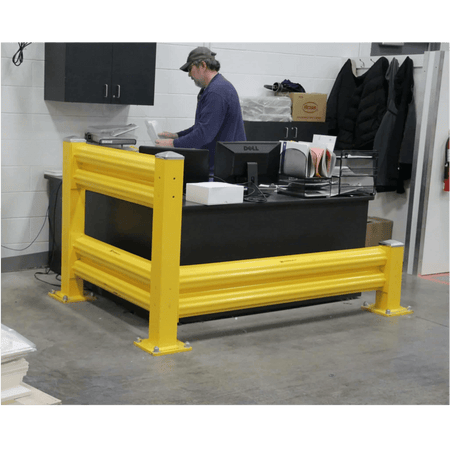

Areas for Installation

  • Around inplant offices and workstations
  • Along pedestrian walkways
  • To protect sensitive machines
  • At the end of rack aisles
  • Adjacent to conveyor lines
  • Around mezzanines
Handle-It Guard Rail Dimensions
Rail Length
Center to Center of Columns
Outside to Outside of Base Plates
10 Ft. Rail
9 Ft. Rail
8 Ft. Rail
7 Ft. Rail
79" 84"
6 Ft. Rail
5 Ft. Rail
55" 60" 70"
4 Ft. Rail
43" 48" 58"
3 Ft. Rail
31" 36"
2 Ft. Rail 19" 24" 34"
Column Height
Single Rail Post
Double Rail Post
Model No. GR-4-A1
Finish Handle-It Yellow visibility powder coat
Miscellaneous Custom sizes available
