Inlet Section for Modular UV Divider Valves

on-backorder
SKU: 87918
Regular price $26.14
Est. Ship Date: Thursday, April 25th
Trusted By

Lincoln® Inlet Section for Modular UV Divider Valves

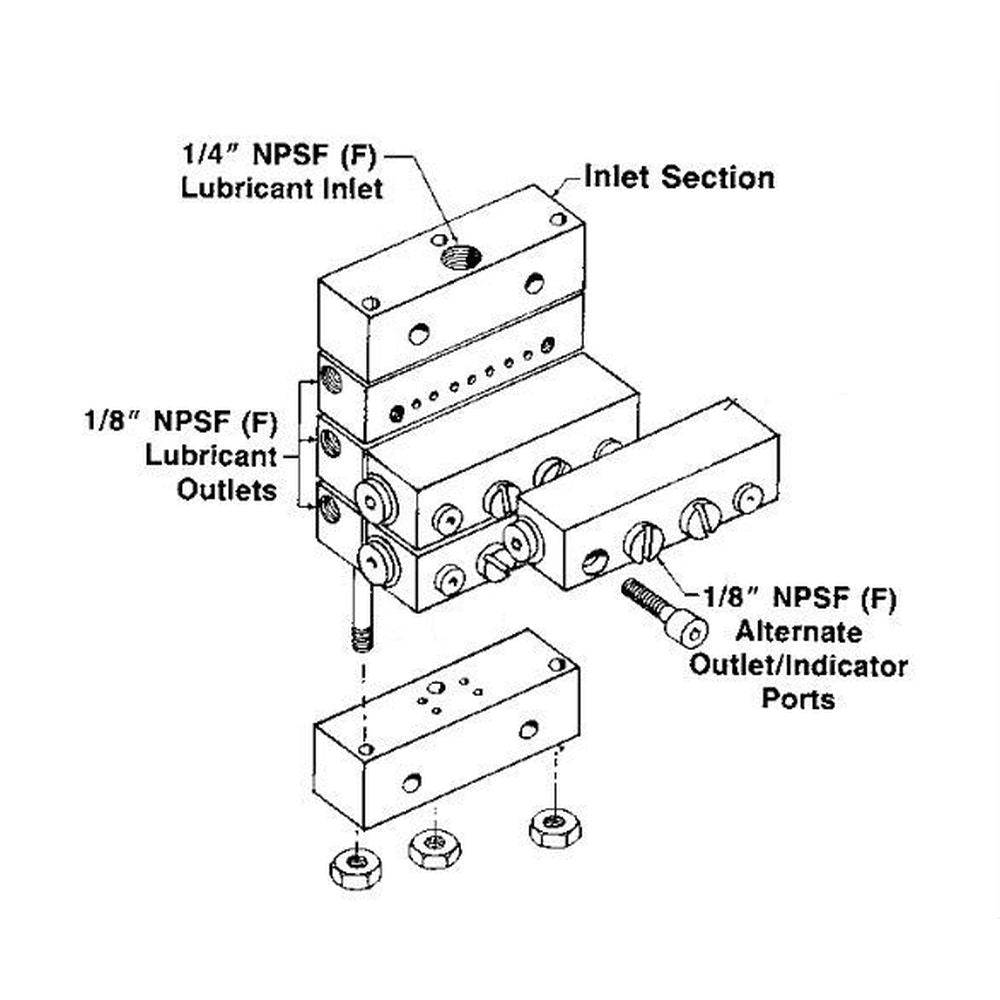

UV Divider Valves are designed to meter oil or grease in automatic or manual systems installed on all types of industrial machinery. Segmented baseplate assembly contains all inlet and outlet connections. Alternate outlet ports are located on the face of the divider valve which may be used for installation of performance indicators.

Here are links to the modular UV Divider Valves (882051, 882052), End Sections (87920), Intermediate Sections (87919) and Tie Rods (250290, 250291, 250292, 250293, 250294, 250295)

Model No. 87918
Brand Lincoln
Maximum Lube Points/Assembly 16
Maximum Operation Pressure 3500 psi/240 bar
Inlet Section Model  87918
Inlet Section Thread  1/4" NPSF (f)
Intermediate Section Model  87919
Intermediate Section Thread  1/8" NPSF (f)
Performance Indicator Port  1/8" NPSF (f)
Material of Construction  Yellow chromate plated steel
Seal Construction  Flouroelastomer
