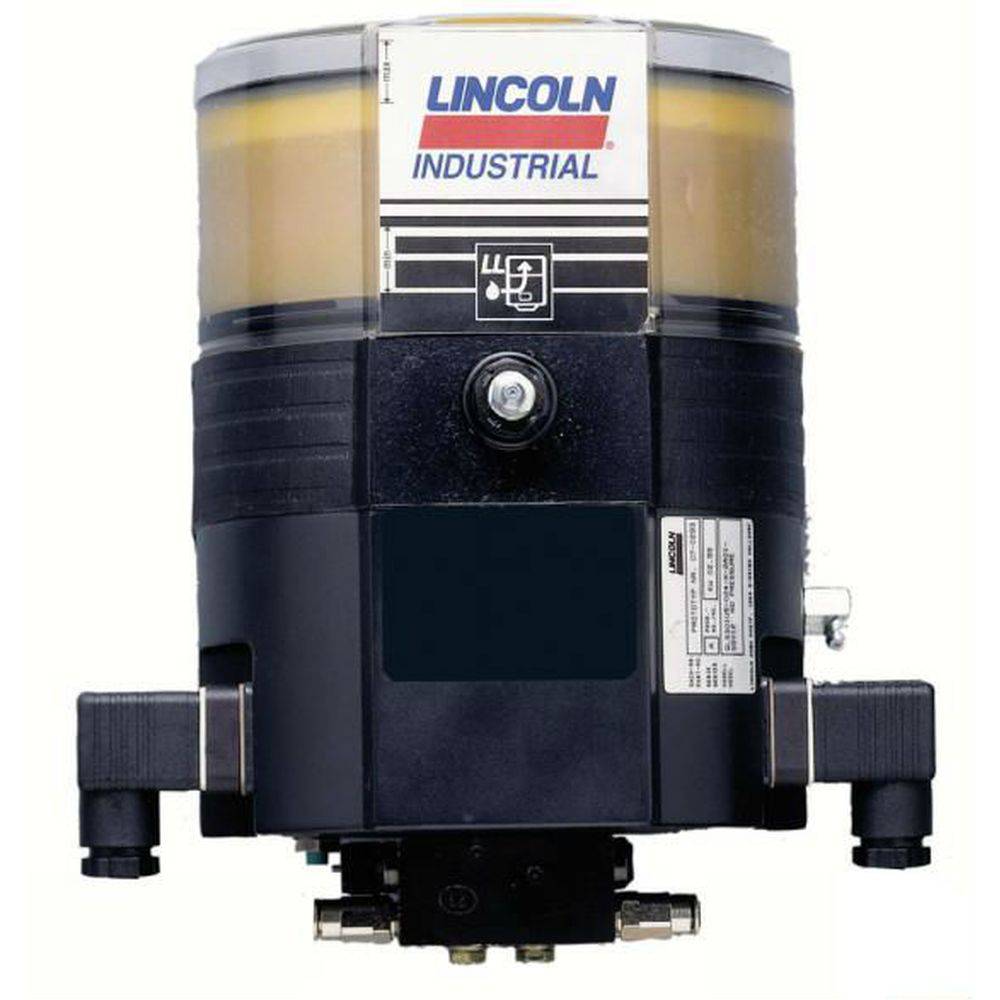

Lincoln Quicklub QLS 301 Grease Bottom Valve Remote Control 120 Volt AC SSV8
The QLS 301/3011 for Remote Control allows customers to be in control of the lubrication process. The 24 VDC models monitor system cycling with a proximity switch. An external timer or PLC controls the interval between lube cycles. The 120 VAC models have no cycle monitoring and are on/off controlled by the user's external timer or PLC. The minimum pause time requirements should be followed when setting up the external controller.
Compact pre-assembled pump and metering valve work with customer's PLCs, no need for separate controller.
Handle up to NLGI #2 grease for QLS 301
Works between -10°F and 158°F allowing operation in many environments
- 24 VDC - 120 VAC - 50/60 Hz
- -10°f to 158°F
Number of Outlets
6,8, 12 or 18
Minimum Operating Time
25 min. DC models/15 min. AC models
Maximum Operating Pressure
- Grease: 3000 psi/205 bar - Oil1160 psi/80 bar
Output per Outlet & Cycle
approx. 0.012" /approx. 0.2 cm.
up to NLGI 2 grease or oil with at lease 40cSt.
12.5 lbs./5.7 kg.
