Product Overview

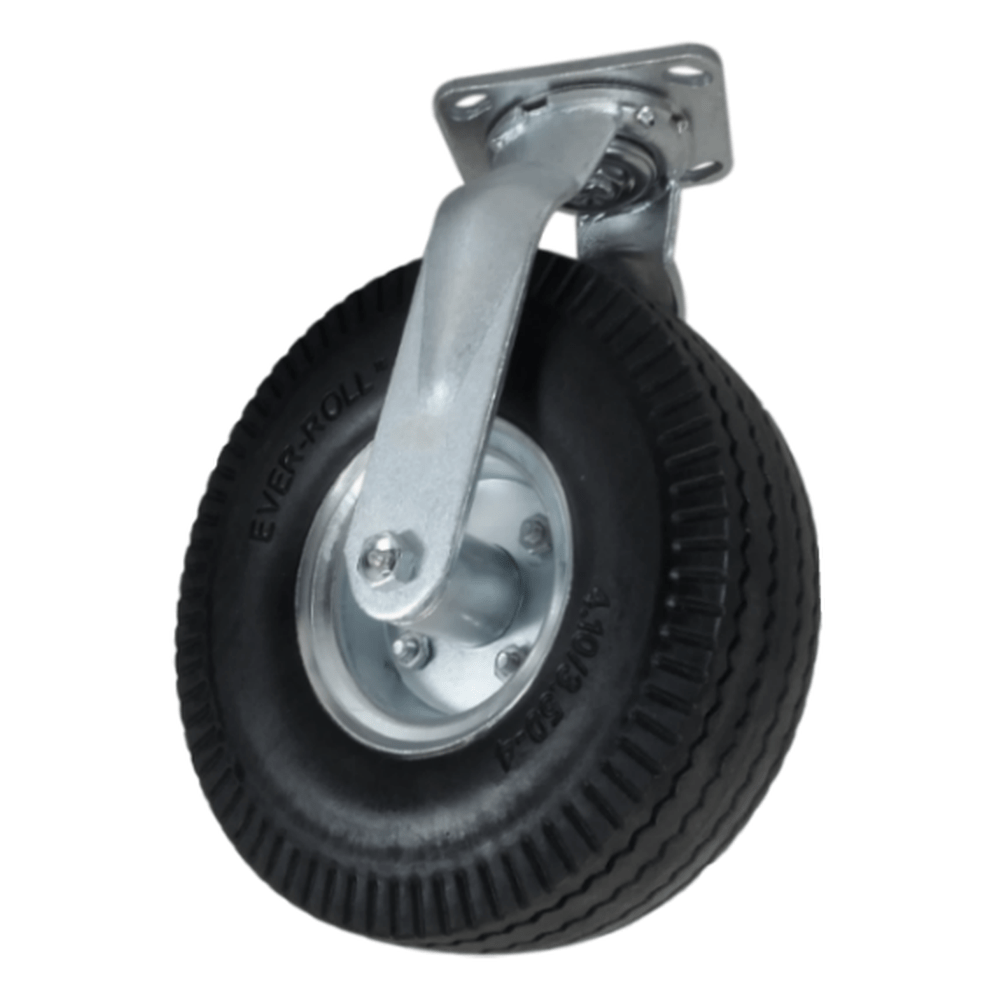

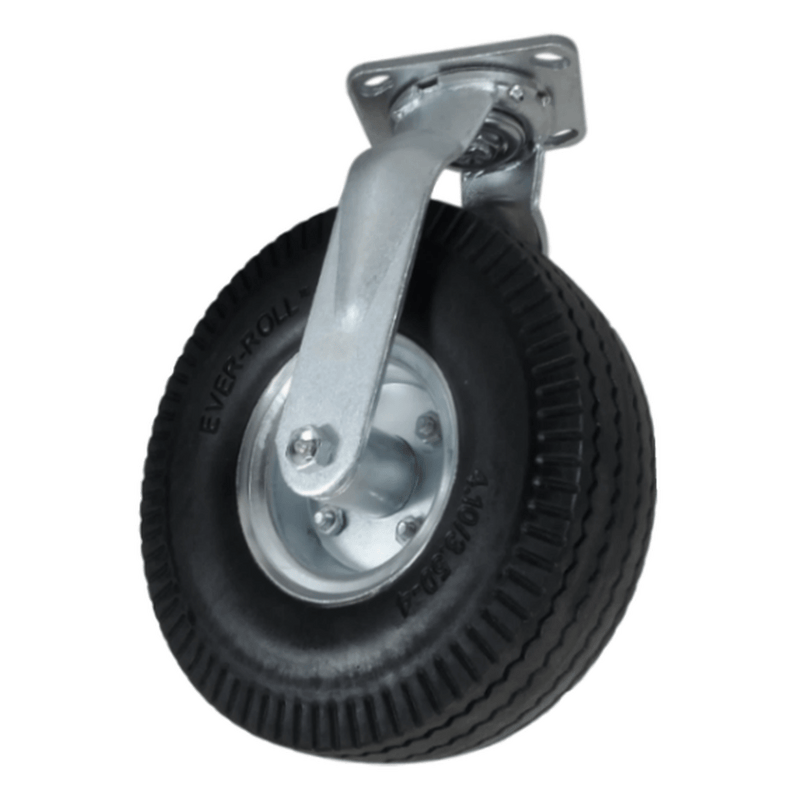

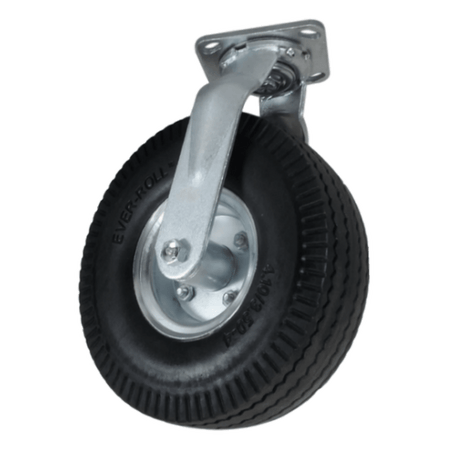

The Ever-Roll tire is filled with microcellular polyurethane foam. This provides the same cushioned ride as a pneumatic tire with the added benefit of being flat-free and low-maintenance. This is a great option for climates with extreme temperatures, where pneumatics have a hard time holding their air.
Tread: Microcellular Polyurethane Foam-Filled Rubber This caster is listed with wheel diameter 10", tread width 3", load capacity 280 Lbs., tread type Microcellular Polyurethane Foam-Filled Rubber, and bearing type Precision Bearing.
Key Features
- Load Capacity: 280 Lbs.
- Wheel Diameter: 10"
- Tread Width: 3"
- Tread: Microcellular Polyurethane Foam-Filled Rubber
- Bearing: Precision Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" slotted to 3" x 3" bolt-hole pattern
- Loads within the listed 280 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" slotted to 3" x 3" bolt-hole pattern
- Applications needing the listed Microcellular Polyurethane Foam-Filled Rubber wheel or tread
Not Ideal For
Not ideal when the load exceeds 280 Lbs, the equipment requires a wheel other than 10" diameter by 3" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" slotted to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 280 Lbs. |
| Wheel Diameter | 10" |
| Tread Width | 3" |
| Tread Type | Microcellular Polyurethane Foam-Filled Rubber |
| Core Type | Zinc-Plated Rim and Hub |
| Bearing Type | Precision Bearing |
| Wheel Color | Black |
| Overall Height | 12-3/16" |
| Swivel Radius | 7-1/4" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| 67ER10BCP317YY | Four-Position Swivel Lock: Standard |

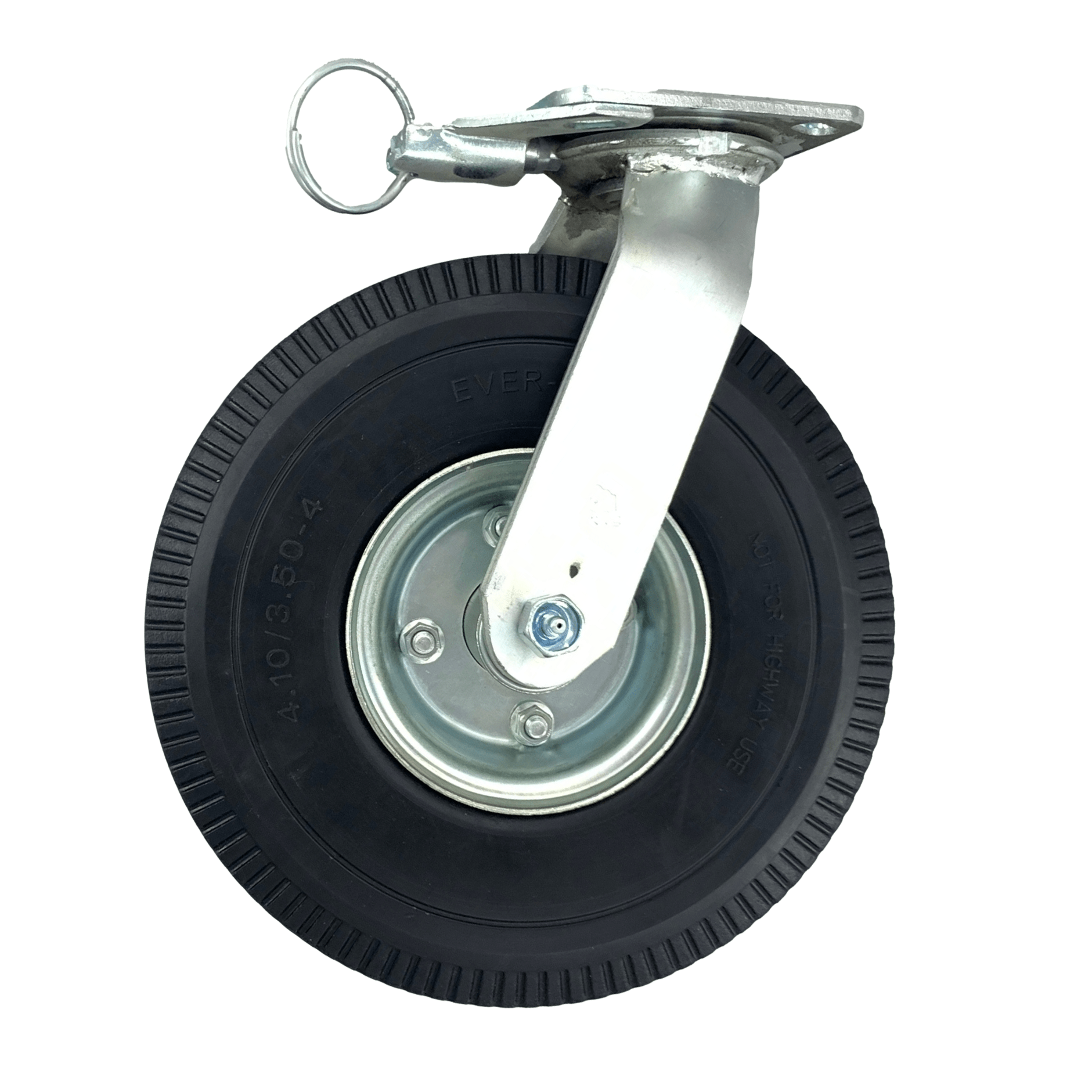

| 67ER10BCP317PY | Four-Position Swivel Lock: Add 4-Position Swivel Lock |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" slotted to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What bearing does it use?
The source lists Precision Bearing.
