6" x 2" Cast Iron V-Groove Wheel Swivel Caster - 1000 lbs. Capacity

In stock
SKU: 27VG60JT0417YY
Regular price $47.27
Est. Ship Date: Thursday, May 2nd
Four Position Swivel Lock
Trusted By

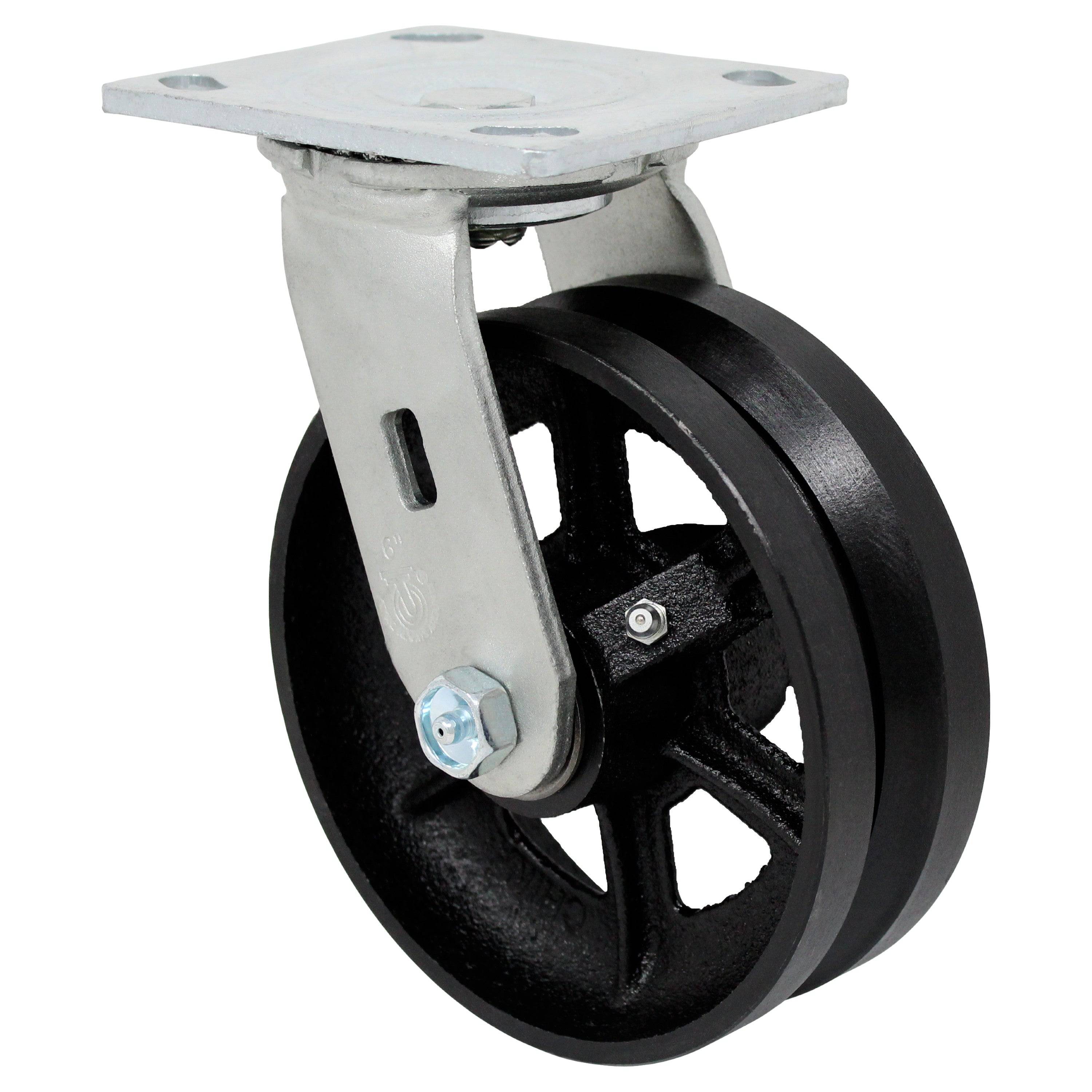

6" x 2" Cast Iron V-Groove Wheel Swivel Caster

Cast iron v-groove wheels are made for use with inverted angle track but they can also be used to roll on floor tracks, gate fence tracks and flat surfaces. Constructed of cast iron with a 90° v-groove, this wheel works well inside and outdoors.

Tread: Solid Cast Iron 90° V-Groove

Core: Solid Cast Iron

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 1,000 Lbs.
  • Color: Black
  • Tensile Strength: 30,000 PSI
  • Temperature Range: -45° F to 180° F
Load Capacity  1,000 Lbs.
Wheel Diameter
6"
Tread Width
2"
Tread Type
Solid Cast Iron 90° V-Groove
Core Type
Solid Cast Iron
Bearing Type
Roller Bearing
Wheel Color
Black
Overall Height
7-1/2"
Swivel Radius
2"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Tensile Strength 30,000 PSI
Temperature Range  -45° F to 180° F
