8" x 2" Polyon Cast Wheel Swivel Caster w/ Top Lock Brake - 1250 lbs. Cap.

In stock
SKU: 27PU80JG0417TY
Regular price $58.98
Est. Ship Date: Monday, December 11th
Four Position Swivel Lock
Trusted By

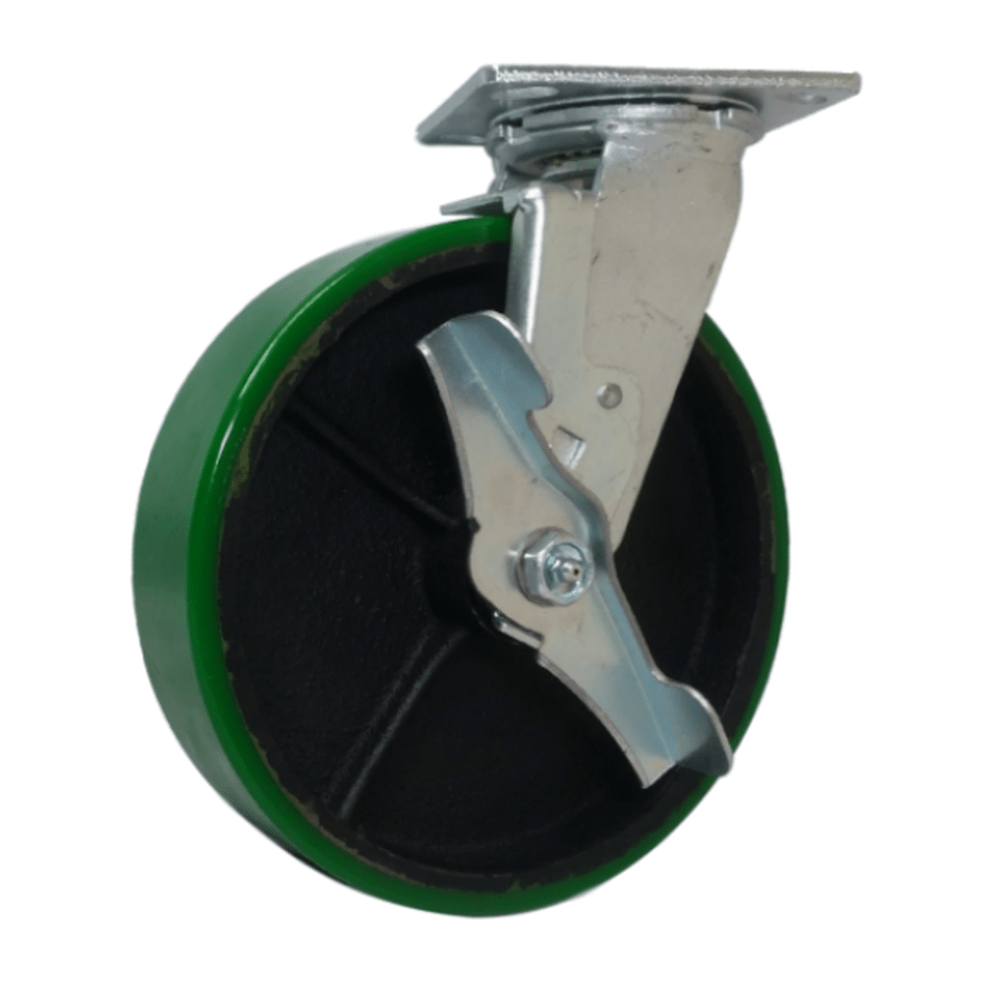

8" x 2" Polyon Cast Wheel Swivel Caster with Top Lock Brake

 Polyurethane elastomer tread chemically bonded to a cast iron core. These wheels are somewhat heavy and are ideal for warehouses with concrete and hardwood flooring.

Tread: Polyurethane Elastomer

Core: Cast Iron Core

Bearing: Roller Bearing

Rig: Zinc-plated swivel caster, 4" x 4-1/2" mounting plate, top lock brake

  • Capacity: 1,400 Lbs.
  • Color: Green and Black
  • Durometer: Shore A 95 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity  1,400 Lbs.
Wheel Diameter
8"
Tread Width
2"
Tread Type
Polyurethane Elastomer
Core Type
Cast Core Iron
Bearing Type
Roller Bearing
Wheel Color
Green and Black
Overall Height
9-1/2"
Swivel Radius  6"
Plate Size  4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Lock Type Top Lock
Durometer
Shore A 95 (+/-5)
Temperature Range  -40° F to 180° F
