8" Ultra Poly Swivel Caster - 4000 lbs. capacity

Regular price $670.95 Sale

1 - 3 Business Days

65EX80NG3345YY

Durable Superior Casters

Four Position Swivel Lock

$670.95

Category:

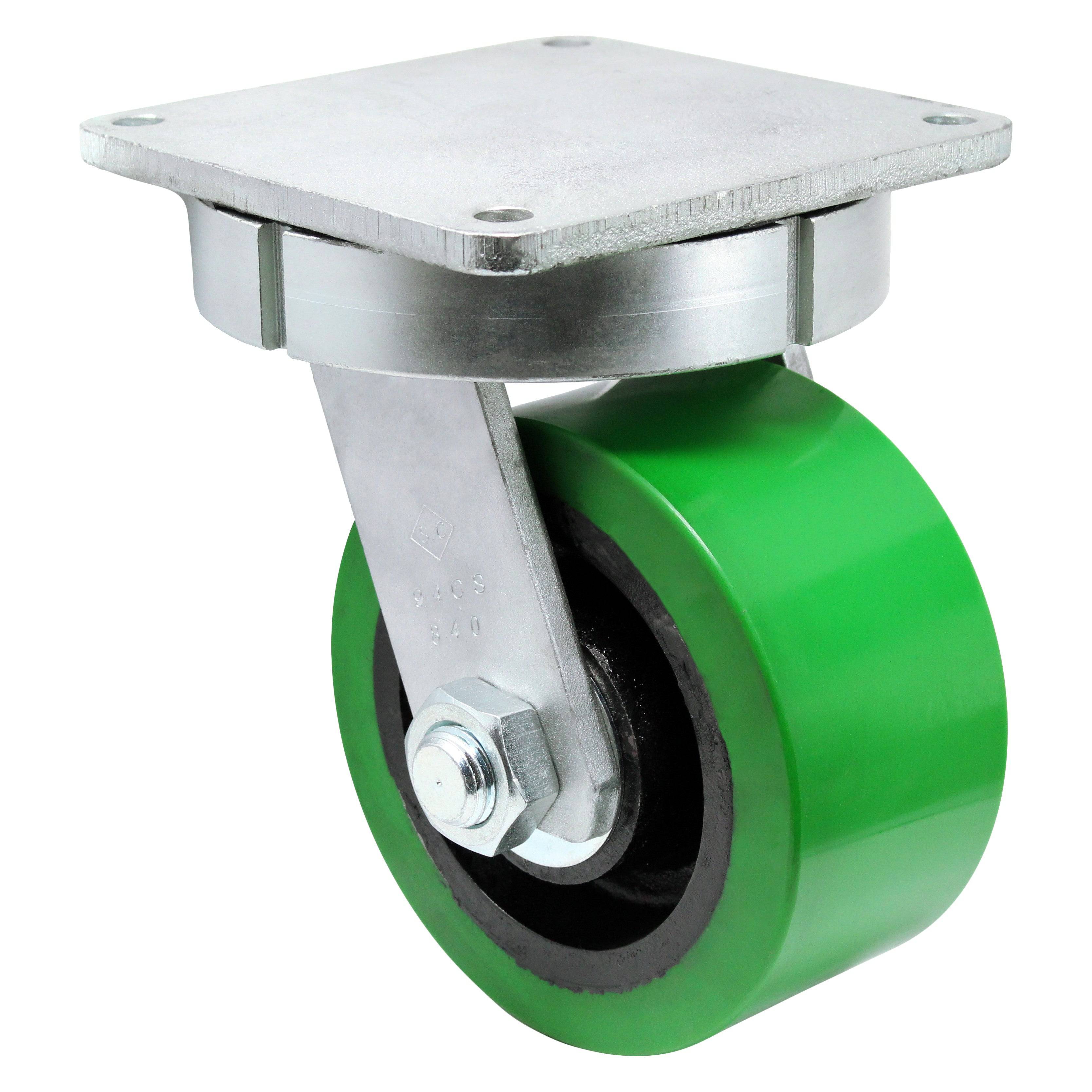

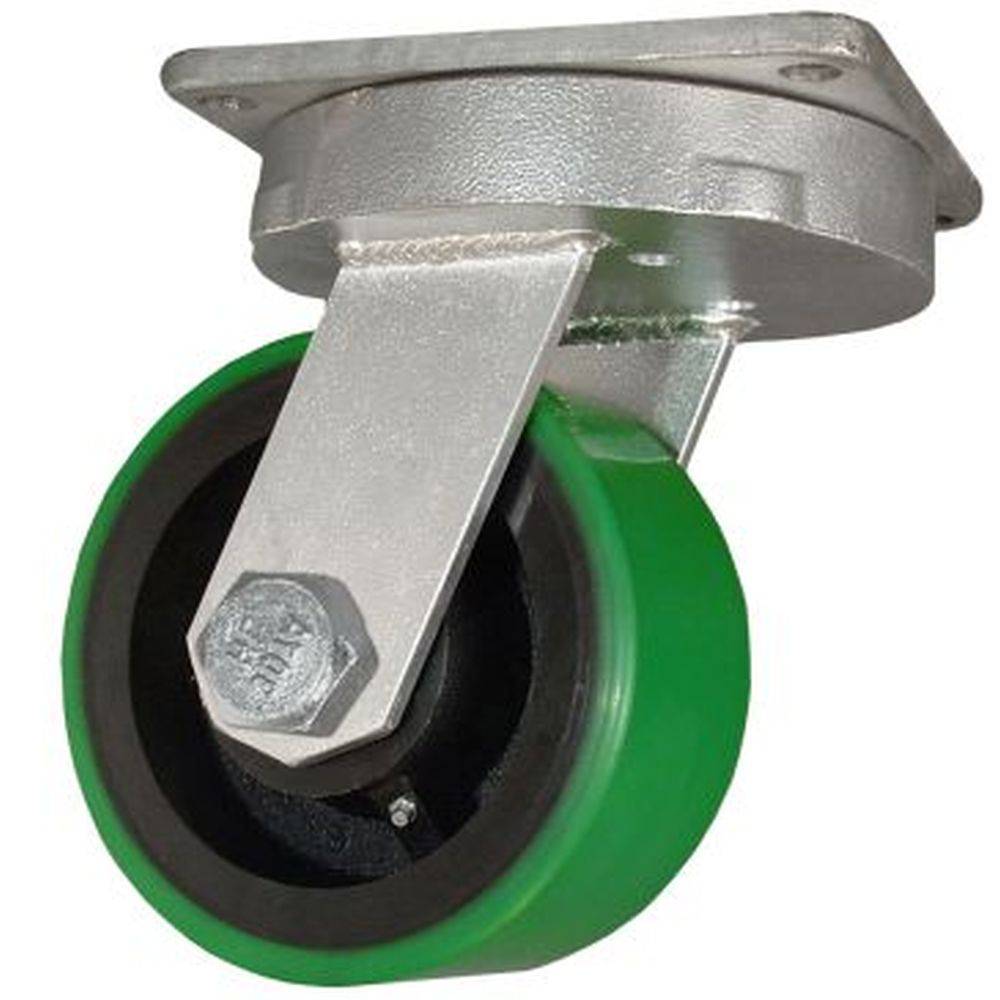

8" Ultra Poly Swivel Caster

Swivel Caster with a 8" x 4" UltraPoly Wheel

Durable Superior Casters® Kingpinless Casters are designed for unsurpassed durability and use in abusive and demanding shock load applications that may cause traditional kingpin casters to fail. The 65 Series casters are made out of ASTM1045 steel, drop forged 5/8” thick top plate integrates with a forged 7” diameter precisely machined raceway with a single row of hardened 3/4" ball bearings.

The legs are formed from 1/2" steel, double welded to the outer raceway for maximum strength. The unique offset raceway design, heat treatment and tampering processes allows our casters to carry the maximum weight of the bearings used, without horizontal wear, kingpin failure or fracturing of welds; these advantages enable The kingpinless casters to handle side thrust force better than other designs.

Hot forged Kinpinless raceways; 1 piece integrally forged top plate and inner raceway design. 1/2” thick legs are robotically welded on both sides.

  • 4,000 lbs. Capacity
  • Wheel Color is Green and Black
  • 1-1/4" CNC Machined Grade 8 axle bolt
  • Zinc plated finish is attractive & corrosion resistant
  • Zerk grease fitting in raceway & wheel hub
Model No. 65EX80NG3345YY
Color Green/Black
Wheel Type Ultra strong polyurethane tread on cast iron hub
Wheel Diameter 8"
Tread Width 4"
Load Capacity 4,000 lbs.
Bearing Roller bearing
Mounting Plate Size 8-1/2" x 8-1/2"
Bolt Hole Pattern 7" x 7"
Overall Height 11"
Swivel Radius 6"
